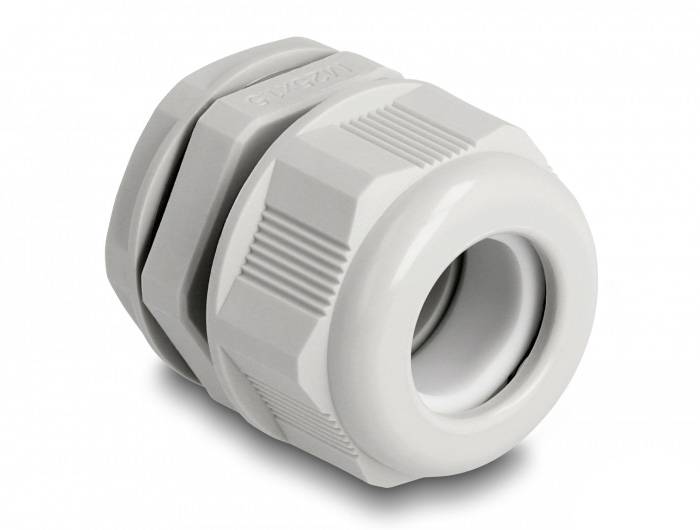

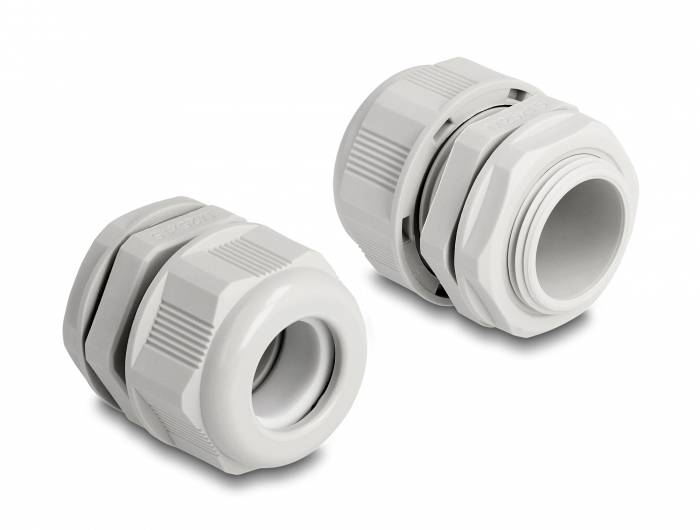

Delock 60474 M25 Polyamide Grey 1 pc(s)
EAN:
Part number:
Item no:
External thread
M25
Material
Polyamide
Clamp Ø
13.0 mm
Terminal Ø (max.)
18.0 mm
Factory colour
Grey
Datasheet (PDF)
Technical specifications
- Factory colour
Grey
- External thread
M25
- Material
Polyamide
- Clamp Ø
13.0 mm
- Terminal Ø (max.)
18.0 mm
- Thread length
11 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Spanner size
36.6 mm
- Weight
0.048
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60474
- Type
60474
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
1.1 cm
- Quantity per pack
2 Stück(e)
- Cable diameter (min)
1.3 cm
- Cable diameter (max)
1.8 cm
- Spanner width
3.66 cm
Documents & Downloads
Datasheet
Datasheet 3383224 Delock 60474 M25 Polyamide Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383224 Delock 60474 M25 Polyamide Grey 1 pc(s)
Description
These cable glands from Delock offer comprehensive protection for use in electrical devices in areas where there is a risk of explosion, such as gas and dust environments.
IP68, dust and waterproof
The integrated seal insert also provides increased protection from dirt and humidity.
Wide range of uses
Due to its robust design, the EX cable glands are frequently used in the chemical industry, automation and machine plants.
This text is machine translated.
IP68, dust and waterproof
The integrated seal insert also provides increased protection from dirt and humidity.
Wide range of uses
Due to its robust design, the EX cable glands are frequently used in the chemical industry, automation and machine plants.
This text is machine translated.
Features
- Thread size M25
- Thread length: 11 mm
- Width 36.6 mm
- Protection class Ex e II C GB/ Ex TD A21 IP68 100 °C
- Approval for hazardous areas: ATEX
- Cable diameter: Approx. 13.0 - 18.0 mm
- Operating temperature: -40 °C ~ 100 °C
- Material: PA.
- Colour: grey
