Delock 60586 angled PG13.5 Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
External thread
PG13.5
Material
Plastic
Clamp Ø
6 mm
Terminal Ø (max.)
12 mm
Features
angled
Datasheet (PDF)

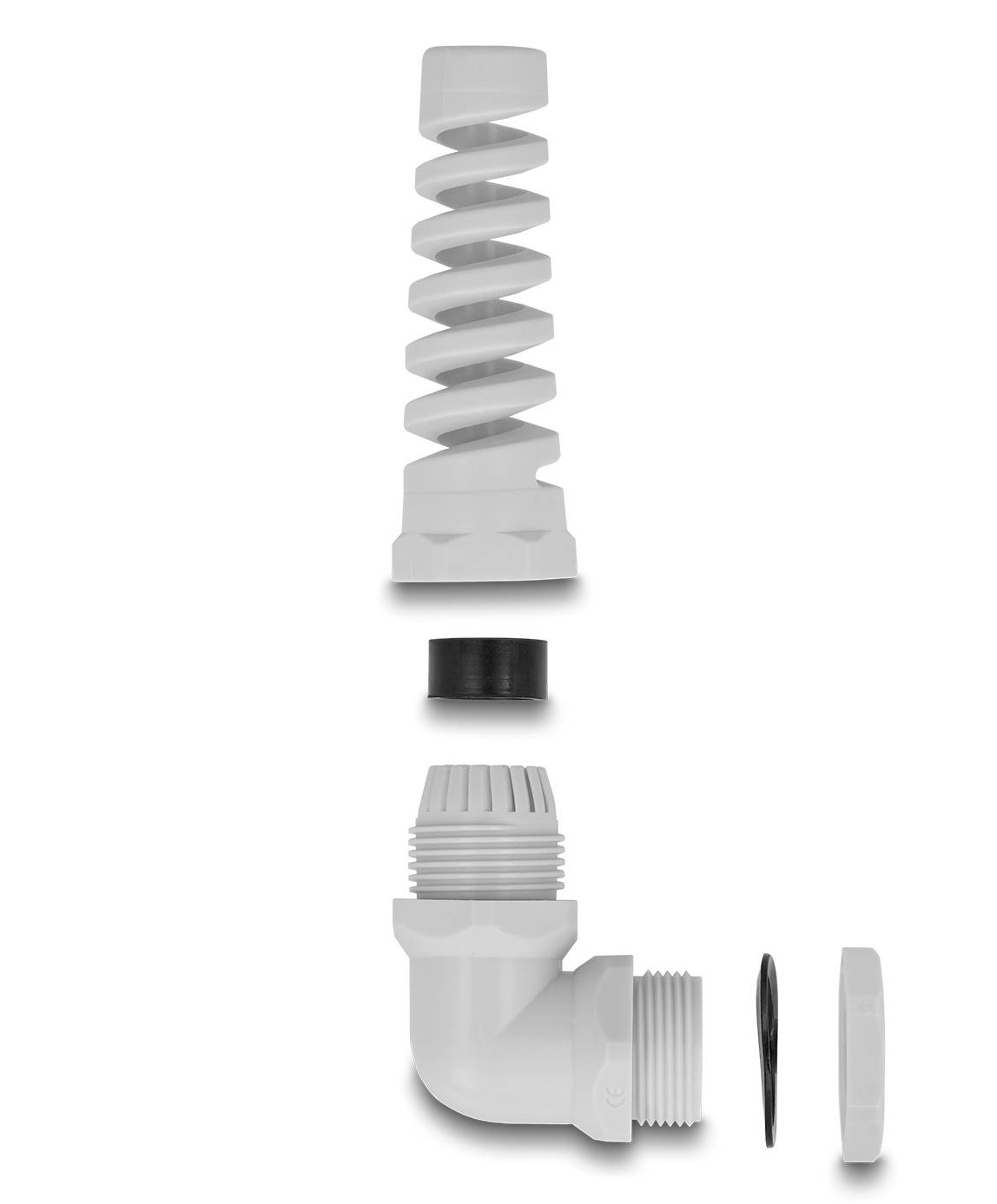

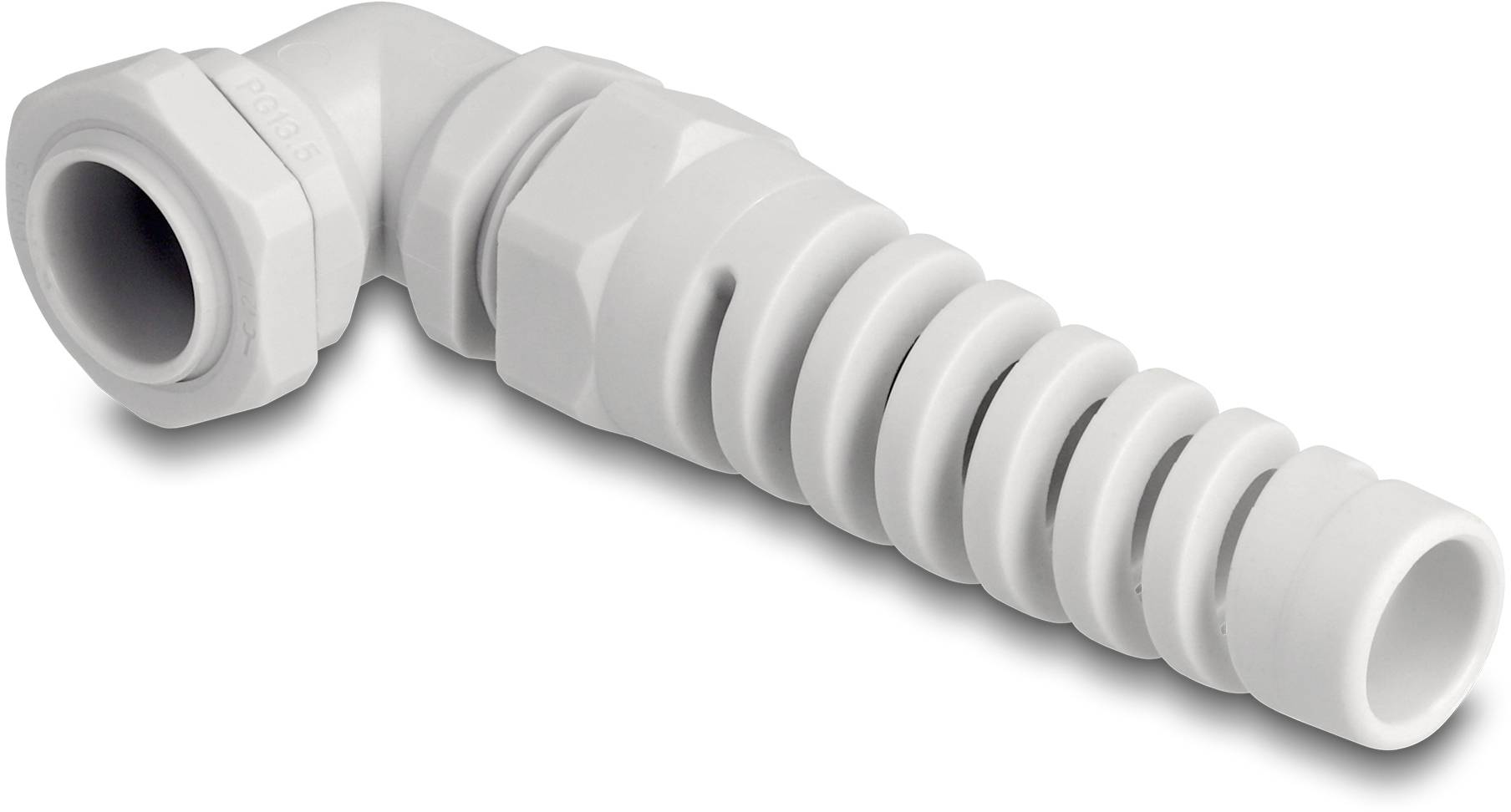

Screwed cable gland with strain relief 90° angled PG13.5 GRAY
Technical specifications
- Form factor: Angled
- Features
angled
- Factory colour
Grey
- External thread
PG13.5
- Material
Plastic
- Clamp Ø
6 mm
- Terminal Ø (max.)
12 mm
- Thread length
9 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
IP68
- Spanner size
24 mm
- Weight
0
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60586
- Type
60586
- Version
Adapter
- UKCA
yes
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
9 mm
- Quantity per pack
1 Stück(e)
- Cable diameter (min)
6 mm
- Cable diameter (max)
1.2 cm
- Spanner width
2.4 cm
Documents & Downloads
Datasheet
Datasheet 3383281 Delock 60586 angled PG13.5 Plastic Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383281 Delock 60586 angled PG13.5 Plastic Grey 1 pc(s)
Description

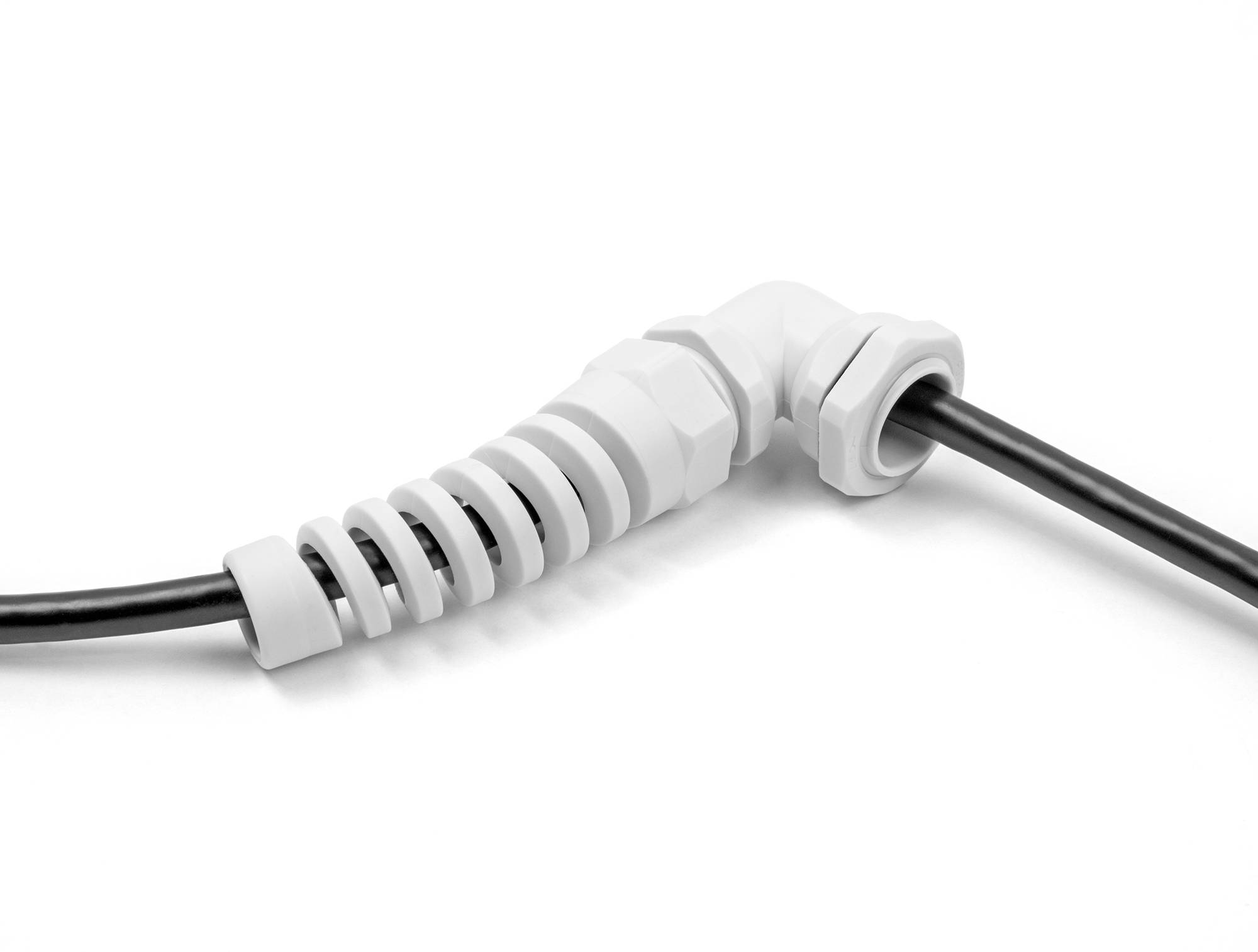

This cable screwing by Delock enables a watertight seal to the housing for conducting cables and electrical lines. The angled design is perfect for using the cable gland in installation areas with cramped spaces.
Additional protection through strain relief
Thanks to the bend relief spiral the flexible cables are secured and protected against excessive bend, e.g. with moving machine parts.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Ideal's robust construction is suitable for the automation, robotics and machinery sectors.
This text is machine translated.
Additional protection through strain relief
Thanks to the bend relief spiral the flexible cables are secured and protected against excessive bend, e.g. with moving machine parts.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Ideal's robust construction is suitable for the automation, robotics and machinery sectors.
This text is machine translated.
Features
- Thread size: PG13.5
- Thread length: 9 mm
- Wrench size: 24 mm
- Protection class: IP68
- Cable diameter:
- min. 6 mm
- max. 12 mm
- Operating temperature: -40 °C ~ 100 °C
- Material: plastic
- Colour: Grey RAL7035
