Delock 60670 60670 PV plug 2.5 mm² Cable length 0 mm
EAN:
Part number:
Item no:
Datasheet (PDF)

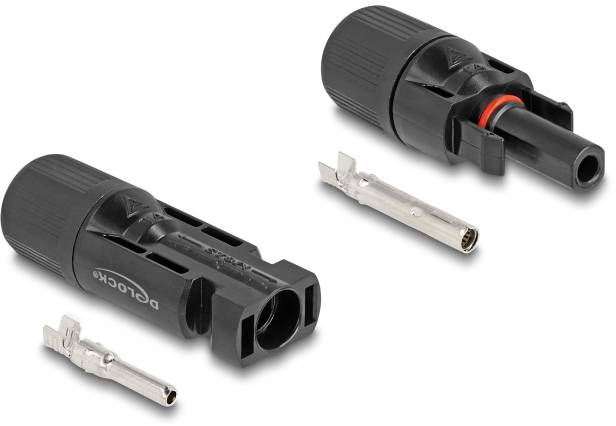

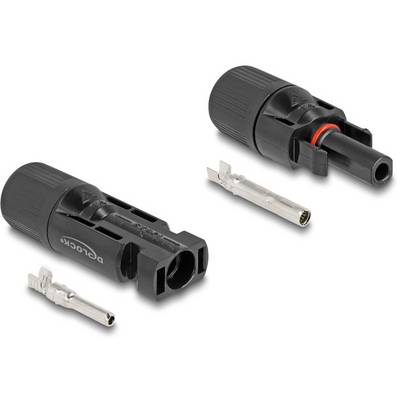

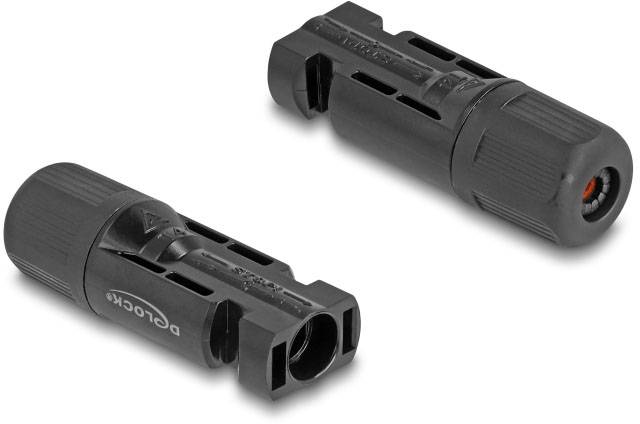

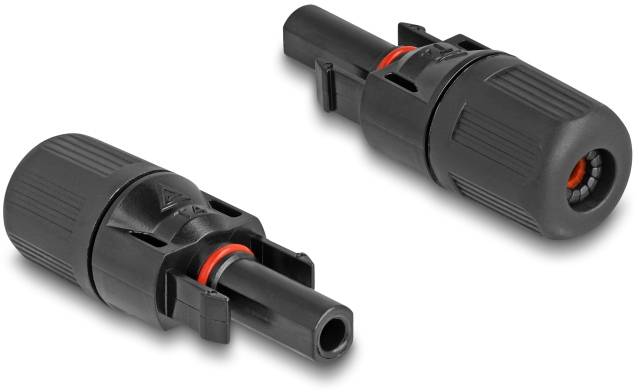

DL4 solar connector for cable for crimping, plug and socket, black 2 piece
Highlights & Details
- DL4 Male/Female Straight
- Black
- 1 pieces(s)
Technical specifications
- Product type
PV plug
- Cable length
0 mm
- Cross section per core
2.5 mm²
4 mm²
6 mm²
- Dim
(W x H x D) 39 x 18 x 104 mm
- Factory colour
Black
- Compatible with (details)
MC4
TS4
QC4
- Width
39 mm
- Height
18 mm
- Depth
104 mm
- Cross section
2.5 mm²
- Version
Cable
- Type A
Crimping
- Type B
Crimping
- Cable use
PC
- Connection type
Connector
Cable
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383334 Delock 60670 60670 PV plug 2.5 mm² Cable length 0 mm
User & Safety Instructions
User & Safety Instructions 3383334 Delock 60670 60670 PV plug 2.5 mm² Cable length 0 mm
Description
These DL4 Solar Cable Connectors from Delock can be used for cable assembly to route the power generated from a photovoltaic system. The DL4 plugs and sockets have a snap-in function, which prevents undesired interruptions and ensures a secure connection. The connection can be released again with the appropriate tool. The DL4 solar connectors are protected from dirt and moisture.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x DL4 plugs
- 1 x DL4 socket
- Cable cross-section: Approx. 2.5, 4, 6 mm²
- Compatible with MC4, TS4, QC4
- Operating temperature: -40 °C ~ 90 °C
- Protection class IP67
- Max. voltage 1000 V
- Colour, black
- Dimensions (LxWxH):
- Plug approx. 5.9 x 1.9 x 1.2 cm
- Socket approx. 5.0 x 1.9 x 1.9 cm
System requirements
- A free DL4 connection
