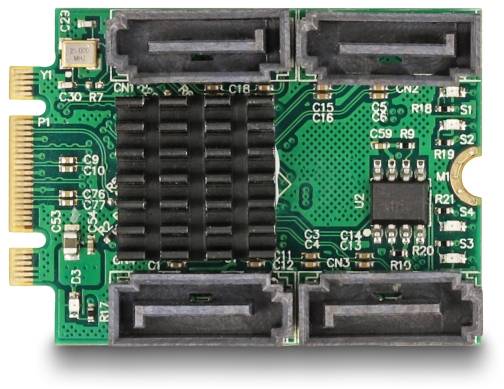

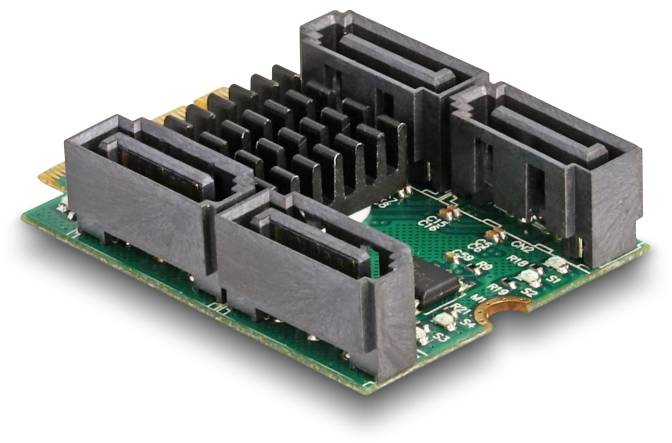

Delock 61062 GBIC [1x M2 - 4x SATA]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Converter M.2 Key B+M plug for 4 x SATA plug with RAID and HyperDuo
- built-in
- Host Interface: M.2
- Output interface SATA
- 6 Gbit/s
- Black, Green
Technical specifications
- Product type
GBIC
- Connection type
M.2 NGFF
SATA
- No. of A connectors
1 x
- Type A
M2
- No. of B connections
4 x
- Type B
SATA
- Chipset
Marvell
- RAID levels
0
1
10
JBOD
- Cable design
Round
- Version
Cable
- Factory colour
Black
Green
- Depth
42 mm
- Height
13 mm
- Width
30 mm
- Cable use
C13/C14 appliances
- Weight
0.033
- UKCA
yes
- Data transfer rate (max)
6 Gbit/s
- Quantity per pack
1 Stück(e)
- Internal
yes
- Internal SATA ports quantity
4
Documents & Downloads
Datasheet
Datasheet 3380100 Delock 61062 GBIC [1x M2 - 4x SATA]
User & Safety Instructions
User & Safety Instructions 3380100 Delock 61062 GBIC [1x M2 - 4x SATA]
Description
This converter from Delock extends the system by four SATA connections. With the assignment of more than one SATA port there is the possibility to use different RAID modes. The converter supports the Hyperduo function. This function combines one SSD and one HDD to take advantage of both data carriers, the speed of the SSD and the capacity of the HDD.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x M.2 Key B+M plug
- 4 x SATA 6 GB/s 7-pin plug
- Marvell chipset
- PCIe 2.0 interface
- Form factor M.2 3042
- Suitable for M.2 slot with key M or key B+M on a PCIe basis
- Data transfer rate of up to 6 GB/s.
- Supports RAID 0, 1, 10, JBOD, HyperDuo Virtual Disk (Safe/Capacity)
- Supports HDD and SSD
- Supports Native Command Queuing (NCQ)
- Bootable
- Dim. (LxWxH): Approx. 42 x 30 x 13 mm
System requirements
- Linux Kernel 5.15 or later
Windows 10/10-64/11
Windows Server 2019
One free M.2 Key M or Key B slot
