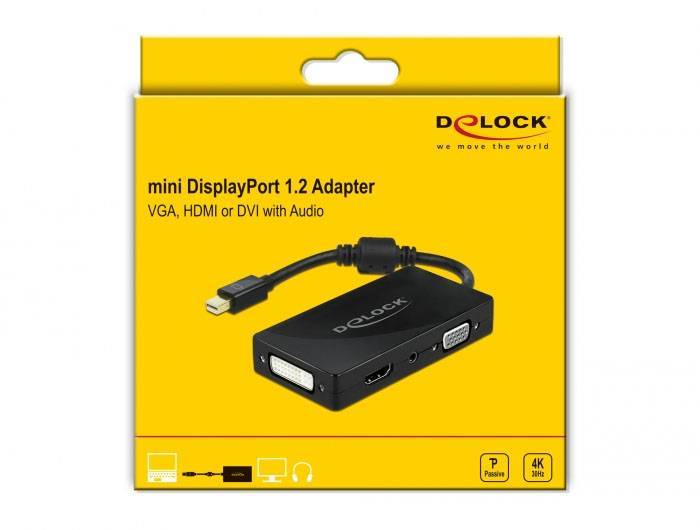

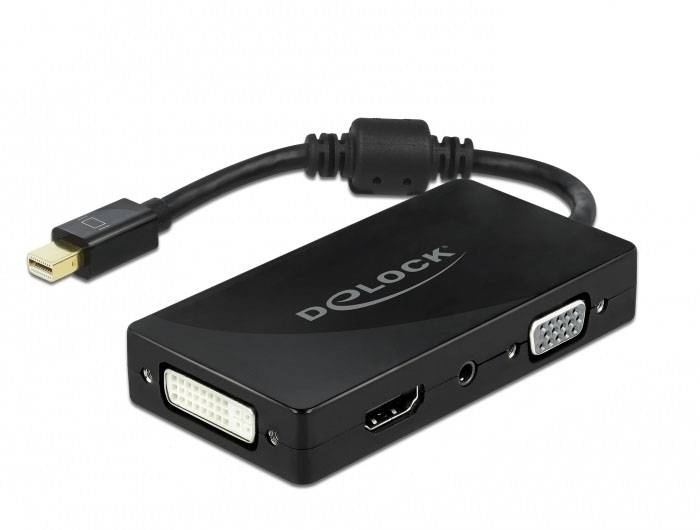

Delock 62073 Mini DisplayPort Adapter Black 15 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Mini DisplayPort 1.2 adapter to VGA / HDMI / DVI / Audio socket 4K passive black
Technical specifications
- Host Interface USB 2.0 Type B
- Product type
TV/monitor Adapter
- Connection type
Mini DisplayPort
- Type A
Mini DisplayPort
- Type B
VGA
HDMI®
DVI
- Cable length
15 cm
- Factory colour
Black
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- Interfaces (output)
VGA
HDMI™
DVI
Jack connector
USB type B
- No. of outputs
1 x
1 x
1 x
1 x
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3381657 Delock 62073 Mini DisplayPort Adapter Black 15 cm
User & Safety Instructions
User & Safety Instructions 3381657 Delock 62073 Mini DisplayPort Adapter Black 15 cm
Description
With this mini DisplayPort adapter from Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices, such as television, projector, monitor etc. can be connected.
Dual video output
If only one monitor is connected to the HDMI output, a maximum resolution of 4K 30 Hz can be achieved.
It is possible to operate two monitors simultaneously, HDMI + VGA or DVI + VGA, whereby a maximum resolution of 1920 x 1080 @ 60 Hz per monitor is possible. It is also possible to expand or mirror the desktop.
This text is machine translated.
Dual video output
If only one monitor is connected to the HDMI output, a maximum resolution of 4K 30 Hz can be achieved.
It is possible to operate two monitors simultaneously, HDMI + VGA or DVI + VGA, whereby a maximum resolution of 1920 x 1080 @ 60 Hz per monitor is possible. It is also possible to expand or mirror the desktop.
This text is machine translated.
Features
- Connections:
- 1 x mini DisplayPort connector
- 1 x VGA sockets
- 1 x HDMI-A socket
- 1 x DVI 24+5 socket
- 1 x 3.5 mm 3 pin jack socket
- 1 x USB 2.0 type micro B socket (optional for power supply)
- Chipset: Explore EP9632C
- DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
- DVI-D (Single Link), VGA not connected
- Passive converter (level shifter), only suitable for graphics cards with DP++ output
- Audio signal is only transmitted with HDMI
- HDMI specifications:
- Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected one
- Hardware)
- Supports 3D displays (1080p @ 60 Hz)
- VGA / DVI specification:
- Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected one
- Hardware)
- 1 x ferrite core
- Cable length without connections: Approx. 15 cm
- Colour, black
System requirements
- Linux Kernel 4.15 or later
Windows 8.1/8.1-64/10/10-64/11
A free mini DisplayPort DP++ socket
