Buy Delock 62670 GBIC [1x SATA - 1x M2, mSATA]

Delock 62670 GBIC [1x SATA - 1x M2, mSATA]-0

Delock 62670 GBIC [1x SATA - 1x M2, mSATA]-1

Delock 62670 GBIC [1x SATA - 1x M2, mSATA]-2

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Converter SATA 22 pin to 1 x M.2 + 1 x mSATA

built-in
Host Interface: SATA
Output interface M.2, mSATA
6 Gbit/s

Technical specifications

Product type: GBIC

Connection type: SATA
M.2 NGFF
mSATA

No. of A connectors: 1 x

Type A: SATA

No. of B connections: 1 x

Type B: M2
mSATA

Compatible with: 2280
2260
2242
2230
SATA SSD

Depth: 98 mm

Width: 65.5 mm

Weight: 0.10

UKCA: yes

Data transfer rate (max): 6 Gbit/s

Internal: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3378636 Delock 62670 GBIC [1x SATA - 1x M2, mSATA]

Description

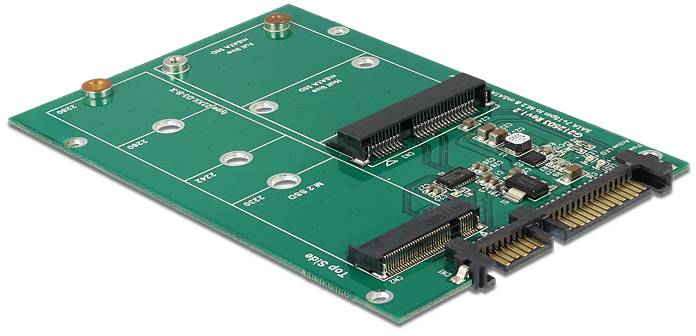

An M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format can be connected to this Delock converter. If both slots are occupied, only the M.2 SSD can be used. The converter can be integrated internally in the system via the SATA 22-pin interface.

This text is machine translated.

Features

Connection:
1 x SATA 6 GB/s 22-pin plug
1 x 67 Pin M.2 Key B Slot
1 x mSATA slot (full size)
Interface SATA
Supports M.2 modules in the format 2280, 2260, 2242 and 2230 with Key B or Key B+M on
SATA Base
Maximum height of the components on the module: 1.35 mm, use of double-sided
Built-in modules is possible
LED display for Power and activity
PWM chipset: Max. 3 A output current, short-circuit protection, inrush current
Suppression, overheating protection
Bootable
Dim. (LxB): Approx. 98 x 65.5 mm
OS independent, no driver installation required

System requirements

A free SATA 22-pin interface
