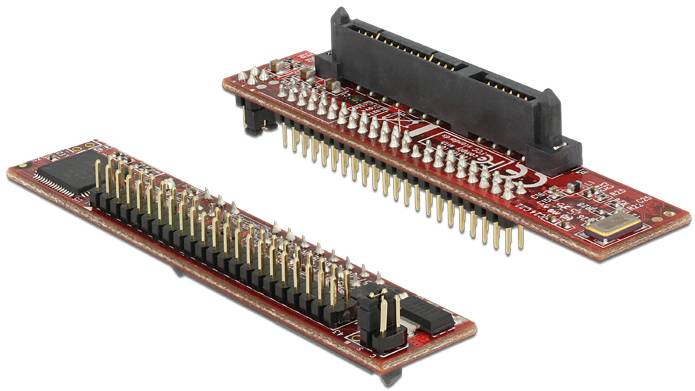

Delock 62686 GBIC [1x SATA - 1x IDE]
EAN:
Part number:
Item no:
SATA to IDE 44-pin converter
Highlights & Details
- built-in
- Host Interface: SATA
- Output interface IDE/ATA
- 3 Gbit/s
Technical specifications
- Product type
GBIC
- Connection type
SATA
IDE
- No. of A connectors
1 x
- Type A
SATA
- No. of B connections
1 x
- Type B
IDE
- Chipset
Marvell
- Compatible with
SATA SSD
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
69 mm
- Height
14 mm
- Width
16 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Data transfer rate (max)
3 Gbit/s
- Internal
yes
- Manual
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378653 Delock 62686 GBIC [1x SATA - 1x IDE]
Description
This Delock converter allows the connection of a SATA device to a IDE 44-pin interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SATA 3 GB/s 22-pin socket
- 1 x IDE 44-pin connector
- Marvell 88SA8052 chipset
- Ultra ATA/133 parallel interface
- Jumper for Master / Slave and Cable Select setting
- Supports PIO and UDMA mode
- Supports SATA HDDs / SSDs and SATA drives such as CD-ROM, DVD-ROM,
- Blu-ray etc.
- Dim. (LxWxH): Approx. 69 x 16 x 14 mm
- OS independent, no driver installation required
System requirements
- A free SATA 22-pin plug
