Delock 62843 GBIC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Converter M.2 Key B+M plug to 2 x USB 5 Gbps pin header
- built-in
- Host Interface: M.2
- Output interface USB 3.2 1st Gen 1 (3.1 Gen 1)
- 5 Gbit/s
Technical specifications
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 7 Home x64, Windows 7 Pro, Windows 7 Pro x64, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 10 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1
- Product type
GBIC
- Connection type
M.2 NGFF
USB
- No. of A connectors
1 x
- Type A
M2
- Type B
USB
- Compatible with
2280
2260
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
82 mm
- Height
14 mm
- Width
22 mm
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- UKCA
yes
- Data transfer rate (max)
5 Gbit/s
- Internal
yes
- Manual
yes
- Drivers included
yes
Documents & Downloads
Datasheet
Datasheet 3378737 Delock 62843 GBIC
User & Safety Instructions
User & Safety Instructions 3378737 Delock 62843 GBIC
Description

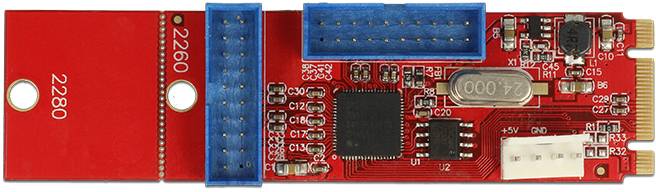

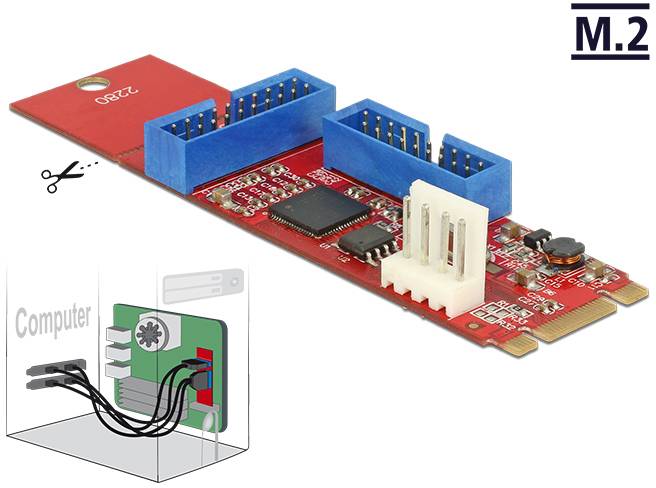

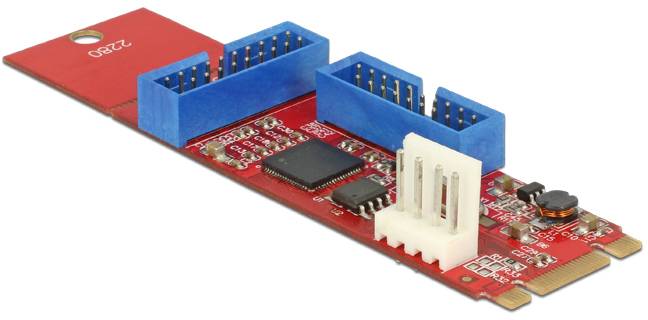

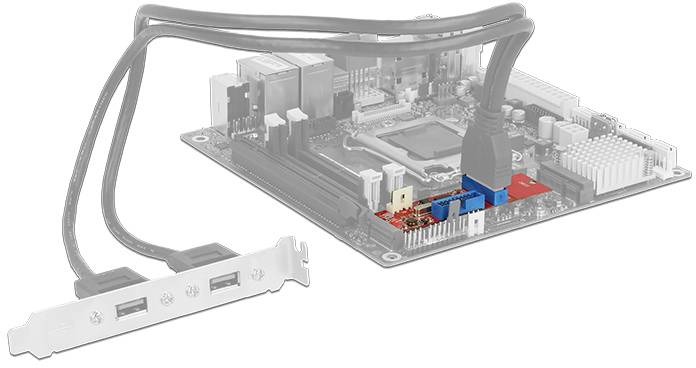

This converter from Delock extends the system by two USB 5 Gbps pin headers. The converter has a length of 80 mm, it can be shortened to 60 mm by the predetermined breaking point.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x M.2 Key B+M plug
- 2 x 19 pin USB 5 Gbps pin connector

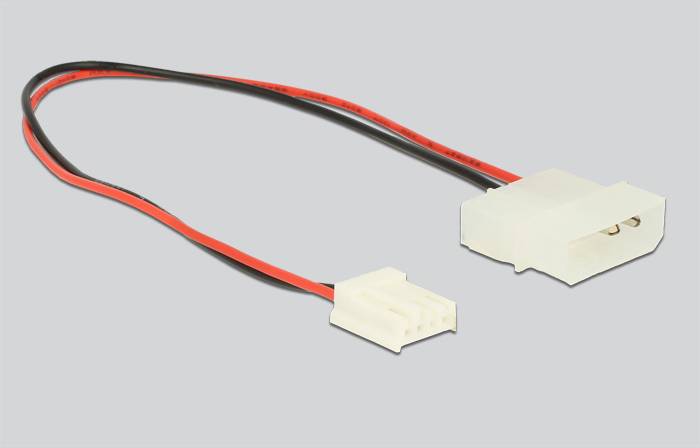

- 1 x Floppy 4-pin current plug
- Renesas chipset
- Interface PCIe
- Form factor M.2 2280 (2260)
- Suitable for M.2 slot with key M or key B+M on a PCIe basis
- Data transfer rate up to 5 Gbps
- Bootable
- Dim. (LxWxH): Approx. 82 x 22 x 14 mm
System requirements
- Linux Kernel 3.16 or later
Windows 7/7-64/8.1/8.1-64/10/10-64/11
A free M.2 Key M slot
Power supply with a free 4-pin power connector
