Delock 62848 GBIC [1x M2 - 1x Mini PCI]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

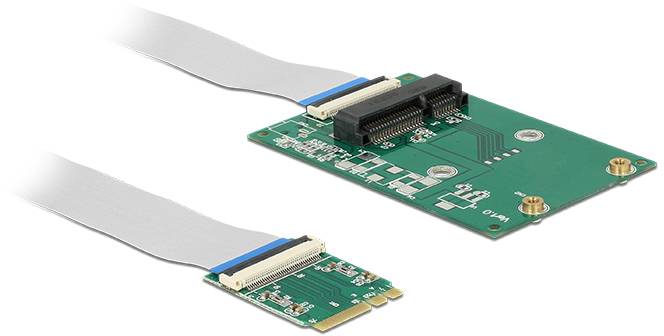

Converter M.2 Key A+E plug to 1 x Mini PCIe slot half size / full size with flexible cable
- built-in
- Host Interface: Mini PCI Express
- Output interface M.2
Technical specifications
- Host Interface: Mini PCI Express
- Product type
GBIC
- Connection type
M.2 NGFF
Mini PCI Express
- No. of A connectors
1 x
- Type A
M2
- No. of B connections
1 x
- Type B
Mini PCI
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
150 mm
- Height
50 mm
- Width
100 mm
- Cable use
C13/C14 appliances
Cable
- Weight
0.064
- UKCA
yes
- Operating temperature (T-T)
0 - 80 °C
- Internal
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3378748 Delock 62848 GBIC [1x M2 - 1x Mini PCI]
User & Safety Instructions
User & Safety Instructions 3378748 Delock 62848 GBIC [1x M2 - 1x Mini PCI]
Description

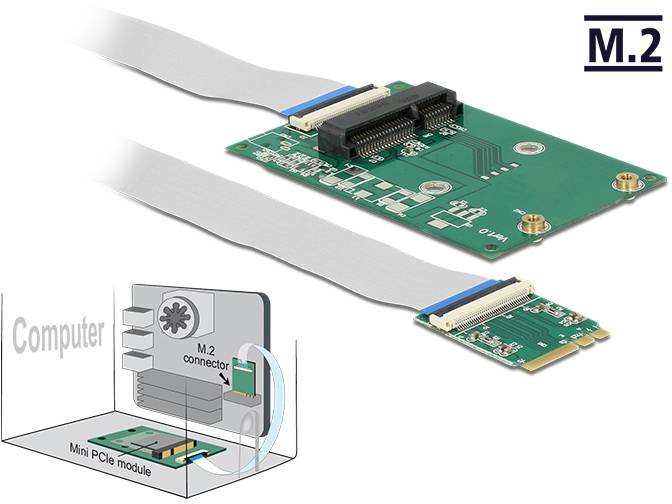

This converter from Delock converts the M.2 Key A or Key E interface into a mini PCIe interface. Various mini PCIe modules with USB and PCIe support (e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules) can be used on this converter. It is also possible to use both functions simultaneously with a module that has WLAN and Bluetooth, for example.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x 59 pin M.2 Key A+E plug
- 1 x Mini PCIe slot
- PCI Express REV 1.1
- Interface PCIe + USB
- Form factor M.2: 2230
- Form-factor Mini PCIe: Half size and full size
- Suitable for M.2 slot with key A or key E on PCIe and USB basis
- Operating temperature: 0 °C ~ 80 °C
- Dimensions (LxWxH):
- M.2 Card: Approx. 30 x 22 x 3 mm
- Mini PCIe Card: Approx. 69 x 45 x 6 mm
- OS independent, no driver installation required
System requirements
- One free M.2 Key A or Key E slot
