Delock 62853 GBIC [1x SATA, USB 2.0 - 1x mSATA, Mini PCI Express]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

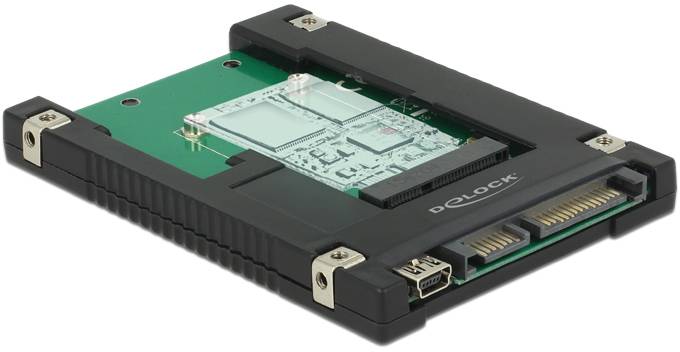

2.5″ converter SATA 22 Pin / USB 2.0 Type Mini-B to 1 x mSATA / Mini PCIe Slot
- built-in
- Host interface: MSATA
- Output interface SATA, USB 2.0
- 6 Gbit/s
Technical specifications
- Product type
GBIC
- Connection type
SATA
USB 2.0
mSATA
Mini PCI Express
- No. of A connectors
1 x
- Type A
SATA
USB 2.0
- No. of B connections
1 x
- Type B
mSATA
Mini PCI Express
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
100 mm
- Height
7 mm
- Width
70 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Data transfer rate (max)
6 Gbit/s
- Internal
yes
- USB 2.0 ports quantity
1
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3378766 Delock 62853 GBIC [1x SATA, USB 2.0 - 1x mSATA, Mini PCI Express]
User & Safety Instructions
User & Safety Instructions 3378766 Delock 62853 GBIC [1x SATA, USB 2.0 - 1x mSATA, Mini PCI Express]
Description

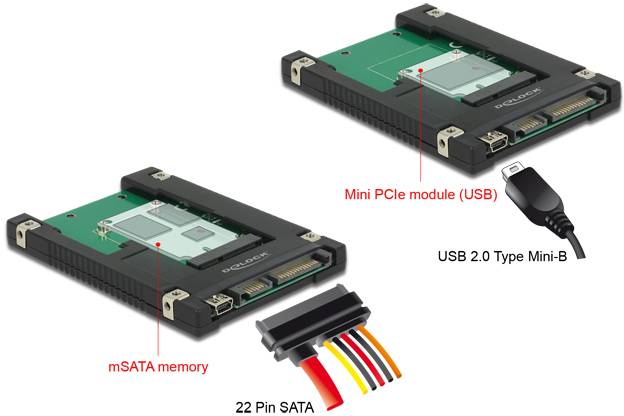

This Delock converter can be used to connect a half-size or full-size mSATA SSD and replace a 2.5″ hard drive. The converter is integrated in the system via the SATA 22-pin interface, optionally the power supply can be done via the USB connection.
In addition, instead of the mSATA SSD, a mini PCIe module can be connected on a USB basis and integrated in the system via the USB mini-B interface.
This text is machine translated.
In addition, instead of the mSATA SSD, a mini PCIe module can be connected on a USB basis and integrated in the system via the USB mini-B interface.
This text is machine translated.
Features
- Connections:
- 1 x SATA 6 GB/s 22-pin plug
- 1 x USB 2.0 type mini-B socket
- 1 x mSATA / Mini PCIe slot (half size / full size)
- Interface Mini PCIe USB
- Form factor: 2.5″
- Data transfer rate of up to 6 GB/s.
- For 3.3 V mSATA modules
- Power supply via SATA 15 pin connector or mini USB port
- Bootable
- Dim. (LxWxH): Approx. 100 x 70 x 7 mm
System requirements
- Linux Kernel 3.19 or later
Windows 7/7-64/8.1/8.1-64/10/10-64/11
A free SATA 22-pin interface
A free USB connection (for mini PCIe or power supply)
