Delock 62866 GBIC [1x SATA - 1x M2, mSATA]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2.5″ converter SATA 22 pin to 1 x M.2 Key B + 1 x mSATA - 9.5 mm
- built-in
- Host Interface: SATA
- Output interface M.2, mSATA
- 6 Gbit/s
- Black, Green
Technical specifications
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 7 IOT Core, Windows 7 Pro, Windows 7 Pro x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1
- Product type
GBIC
- Connection type
SATA
M.2 NGFF
mSATA
- No. of A connectors
1 x
- Type A
SATA
- No. of B connections
1 x
- Type B
M2
mSATA
- Compatible with
2280
2260
2242
2230
- Cable design
Round
- Version
Cable
- Factory colour
Black
Green
- Depth
100 mm
- Height
9.5 mm
- Width
70 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Data transfer rate (max)
6 Gbit/s
- Internal
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3378768 Delock 62866 GBIC [1x SATA - 1x M2, mSATA]
User & Safety Instructions
User & Safety Instructions 3378768 Delock 62866 GBIC [1x SATA - 1x M2, mSATA]
Description

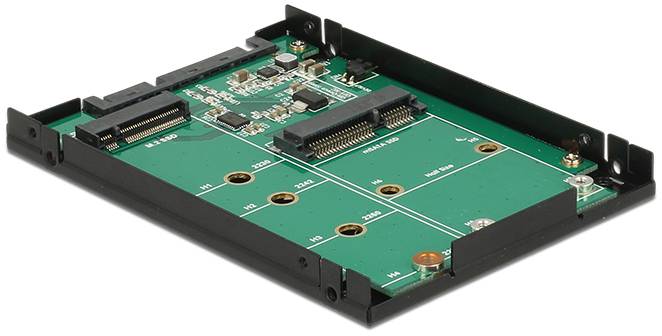

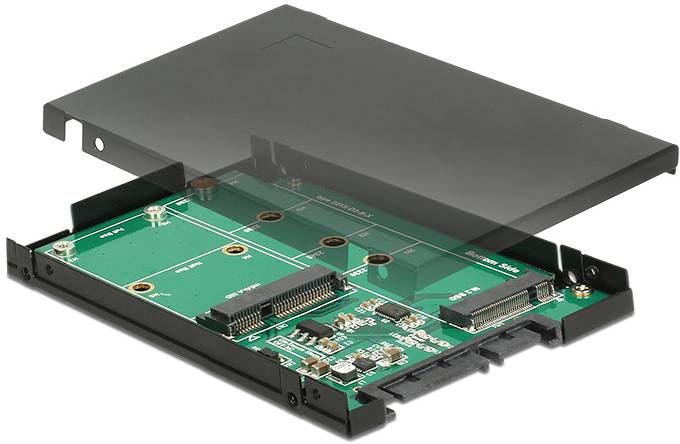

An M.2 SATA SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format can be connected to this converter from Delock. If both slots are occupied, only the M.2 SSD can be used. The converter can be integrated in the system via the SATA 22-pin interface.
This text is machine translated.
This text is machine translated.
Features

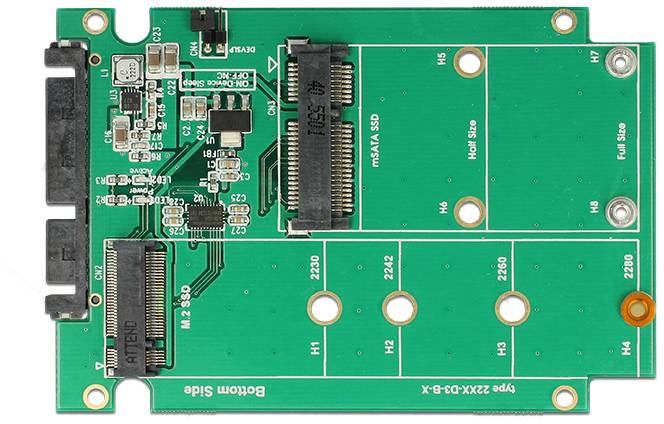

- Connections:
- 1 x SATA 6 GB/s 22-pin plug
- 1 x 67 Pin M.2 Key B Slot
- 1 x mSATA slot (half size / full size)
- Interface SATA
- Form factor: 2.5″
- Supports M.2 modules in the format 2280, 2260, 2242 and 2230 with Key B
- Or Key B+M on SATA basis
- Maximum height of the components on the module: 1.35 mm,
- Use of modules equipped on two sides possible
- LED display
- Maximum current for modules is 3 amps
- Short-circuit protection, overheating protection
- ESD protection up to 2 kV

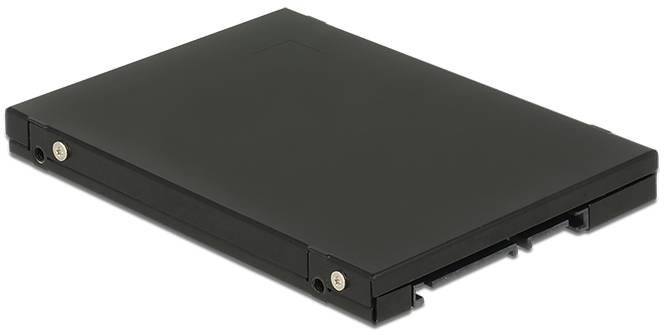

- Dim. (LxWxH): Approx. 100 x 70 x 9.5 mm
System requirements
- Linux Kernel 3.20 or later
Windows 7/7-64/8.1/8.1-64/10/10-64/11
A free SATA 22-pin interface
