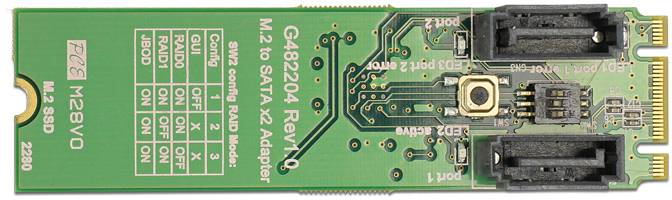

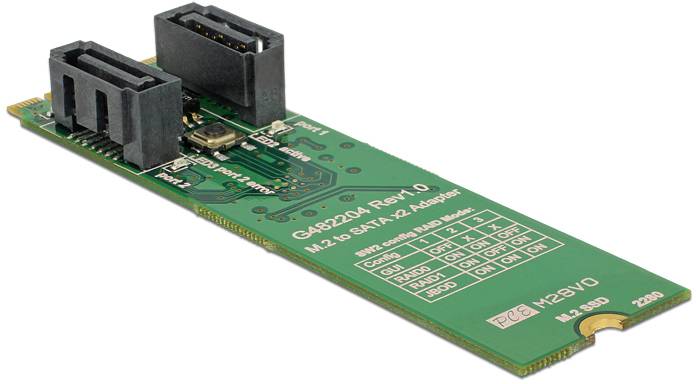

Buy Delock 62961 GBIC [1x M2 - 2x SATA]

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Converter M.2 Key B+M plug to 2 x SATA 7-pin plug with RAID

built-in
Host Interface: M.2
Output interface SATA
6 Gbit/s
Green

Technical specifications

Product type: GBIC

Connection type: M.2 NGFF
SATA

No. of A connectors: 1 x

Type A: M2

No. of B connections: 2 x

Type B: SATA

Chipset: ASMedia

RAID levels: 0
1
JBOD

Compatible with: 2280

Cable design: Round

Version: Cable

Factory colour: Green

Depth: 80 mm

Height: 11 mm

Width: 22 mm

Cable use: C13/C14 appliances

Weight: 0.057

UKCA: yes

Data transfer rate (max): 6 Gbit/s

Internal: yes

Manual: yes

Internal SATA ports quantity: 2

Documents & Downloads

Datasheet

Datasheet 3378806 Delock 62961 GBIC [1x M2 - 2x SATA]

User & Safety Instructions

User & Safety Instructions 3378806 Delock 62961 GBIC [1x M2 - 2x SATA]

Description

This converter from Delock extends the system by two SATA connections. With the assignment of more than one SATA port there is the possibility to use different RAID modes.

This text is machine translated.

Features

Connections:
1 x 59 Pin M.2 Key B+M plug
2 x SATA 6 GB/s 7-pin plug
Asmedia ASM1092R chipset
Interface SATA
Form factor M.2 2280
Suitable for M.2 slot with key M or key B on a SATA basis
Data transfer rate of up to 6 GB/s.
Supports RAID 0, 1, JBOD
Supports HDD and SSD
1 x button for RAID setting
1 x DIP switch for RAID mode
Dim. (LxWxH): Approx. 80 x 22 x 11 mm

System requirements

Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux from Kernel 3.3.0 / Kernel 4.9.4
One free M.2 Key M or Key B slot
