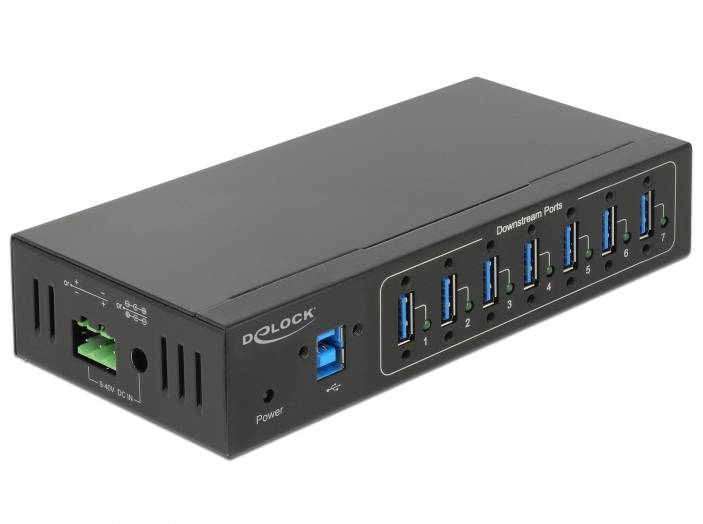

Delock 63311 USB hub 7 ports USB type A, DC jack 3.5 mm USB 3.2 1st Gen 5 GBit/s Black 63311
EAN:
Part number:
Item no:
Datasheet (PDF)
External industrial hub 7 x USB 3.0 type A with 20 kV ESD protection
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 7
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Product type
USB hub
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Port
7 ports
- Interfaces (output)
USB type A
DC jack 3.5 mm
- No. of outputs
7 x
- Cable length
0 mm
- Power supply (LOV)
mains-powered
- Used at
External
- Factory colour
Black
- Width
80 mm
- Height
32 mm
- Depth
158 mm
- Weight
0.551
- Cable design
Round
- Version
Cable
- Type A
USB
- Type B
USB
- Cable use
C13/C14 appliances
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- Input voltage
9 - 40 V
- UKCA
yes
- Terminal block included
yes
- Ports quantity
7
- Data transfer rate
5000 Mbit/s
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Card reader integrated
no
- Manual
yes
- Plug and Play
yes
- Surge protection
yes
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3381612 Delock 63311 USB hub 7 ports USB type A, DC jack 3.5 mm USB 3.2 1st Gen 5 GBit/s Black 63311
User & Safety Instructions
User & Safety Instructions 3381612 Delock 63311 USB hub 7 ports USB type A, DC jack 3.5 mm USB 3.2 1st Gen 5 GBit/s Black 63311
Description
This stable, industrial-capable USB hub by Delock in metal casing, is connected to a computer via the USB Type-A connection. It extends the computer by seven USB Type-A connections, which support the USB Battery Charging specification BC1.2. This allows connected devices such as Smartphones to be charged faster. If necessary, an optional power supply or an optional power cable can be connected to the power jack.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps type B socket
- 7 x USB 5 Gbps type A socket - Battery charging specification BC1.2
- 1 x 9 – 40 V DC power socket
- 1 x 3 Pin Terminal power connection
- Chipset: VIA VL817
- Data transfer rates up to:
- SuperSpeed USB 5 Gbps,
- Hi-speed 480 Mbps,
- Full speed 12 Mbps,
- Low speed 1.5 Mbps
- 8 x LED display
- USB ports with screw terminals
- Heavy duty metal casing
- Hole spacing USB type A: Approx. 19 mm
- Hole spacing USB type B: Approx. 16.5 mm
- M3 thread size
- Removable wall mount
- Power supply: Bus-powered or self-powered
- Flexible power supply from 9 V to 40 V
- Automatic detection of the input polarity at the power connections
- ESD protection up to 20 kV for all ports
- Dim. (LxWxH): Approx. 158 x 80 x 32 mm
- Colour, black
- Plug & Play
System requirements
- Linux Kernel 3.16 or later
Mac OS X 10.9 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port
