Delock 63320 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD 0 mm
EAN:
Part number:
Item no:
Highlights & Details
Delock 63320 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD 0 mm
- 1 x HDMI-A 19-pin male
- 1 x HDMI-A 19-pin female
- 3840 x 2160 pixels
- Housing material: Plastic
- Black
- 1 pieces(s)
Technical specifications
- Connection 1:1 x HDMI-A 19 pin
- Connection 2:1 x HDMI-A 19 pin
- Product type
TV/monitor EDID emulator
- Connection type
HDMI
- No. of A connectors
1 x
- Type A
HDMI plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
0 mm
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
- Cable features
4K UHD
- Cable use
TV/monitor
- Version
EDID emulator
- Range of use
Monitors/TV adapters
- Signal flow direction
Unidirectional (uni)
- UKCA
yes
- Maximum resolution (HDMI)
3840 x 2160 p
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381265 Delock 63320 HDMI EDID emulator [1x HDMI plug - 1x HDMI socket] Black 4K UHD 0 mm
Description

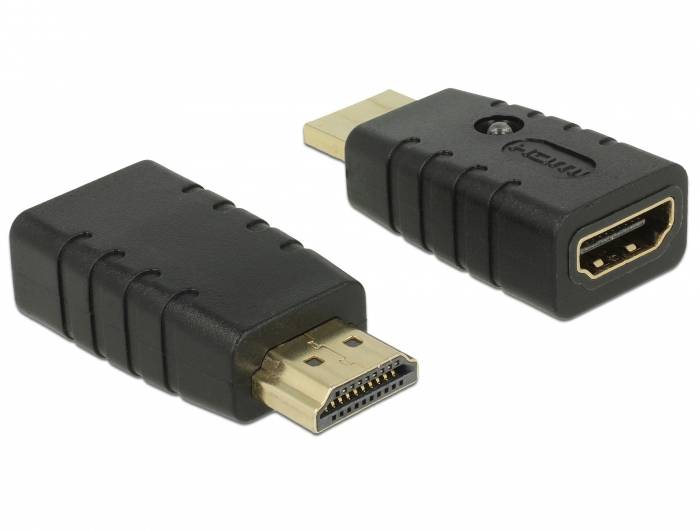

This adapter from Delock emulates a monitor, so that the signal source does not switch off the signal or changes the resolution even without a connected screen. The adapter contains a standard set of EDID/DDC data, but it can also read and save the data from a connected monitor.
This text is machine translated.
This text is machine translated.
Features

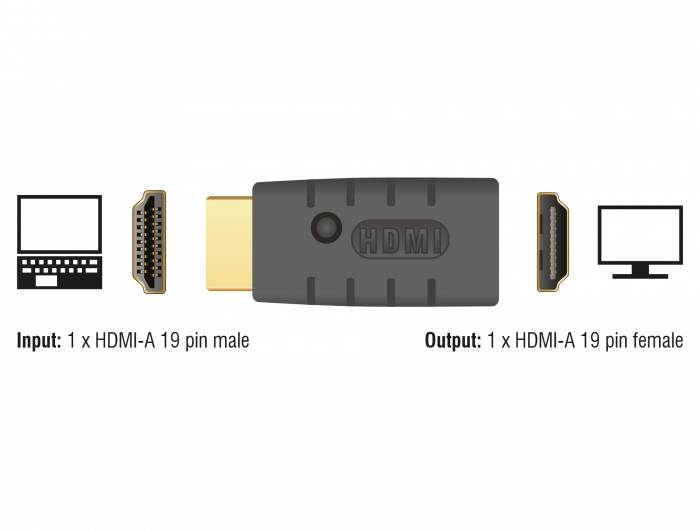

- Connections:
- Input 1 x HDMI A 19-pin plug
- Output 1 x HDMI-A 19-pin jack
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the
- Connected hardware)
- Do not Require external current supply
- 1 x LED display
- Plastic housing
- Colour, black
- Dimensions incl. connection (LxWxH): Approx. 44.0 x 20.5 x 12.5 mm
