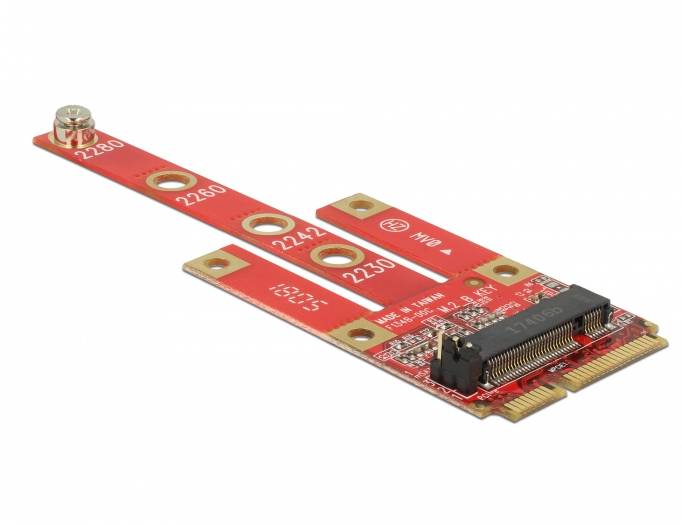

Delock 63384 GBIC [1x Mini PCIe - 1x M2]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Converter Mini PCIe to M.2 Key B Slot + Micro SIM Slot
- built-in
- Output interface M.2
- Red
Technical specifications
- Product type
GBIC
- Connection type
Mini PCI Express
M.2 NGFF
- No. of A connectors
1 x
- Type A
Mini PCIe
- No. of B connections
1 x
- Type B
M2
- Compatible with
2280
2260
2242
2230
- Cable design
Round
- Version
Cable
- Factory colour
Red
- Depth
93 mm
- Width
30 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity
1
- Internal
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3378922 Delock 63384 GBIC [1x Mini PCIe - 1x M2]
User & Safety Instructions
User & Safety Instructions 3378922 Delock 63384 GBIC [1x Mini PCIe - 1x M2]
Description
An M.2 module in 2280, 3042, 2242, 2230, 2260 or 3030 format can be connected to this converter from Delock. The converter is integrated in the system via the mini PCIe interface. Due to the predetermined breaking points the adapter can be shortened. Modules with SATA, USB or PCIe (x1) signal transfer are supported.
Furthermore, there is the possibility to insert a micro SIM card in the slot and to use it with a corresponding M.2 module.
This text is machine translated.
Furthermore, there is the possibility to insert a micro SIM card in the slot and to use it with a corresponding M.2 module.
This text is machine translated.
Features
- Connections:
- 1 x mini PCIe plugs
- 1 x 67 Pin M.2 Key B Slot
- 1 x Micro SIM Slot
- Interface USB 2.0 / PCIe / SATA
- Form factor: Mini PCIe full size/half size
- Supports M.2 modules in the format 2280, 2260, 2242, 2230, 3042 and 3030 with key B or key B+M on USB / PCIe / SATA basis
- Maximum height of the components on the module: 1.5 mm, use of two-sided modules possible
- Jumper for PCIe / USB or SATA module setting
- Dim. (LxB): Approx. 93 x 30 mm
System requirements
- Motherboard with a free mini PCIe slot with USB / PCIe / SATA interface
