Delock 63397 Toslink switch
EAN:
Part number:
Item no:
Datasheet (PDF)

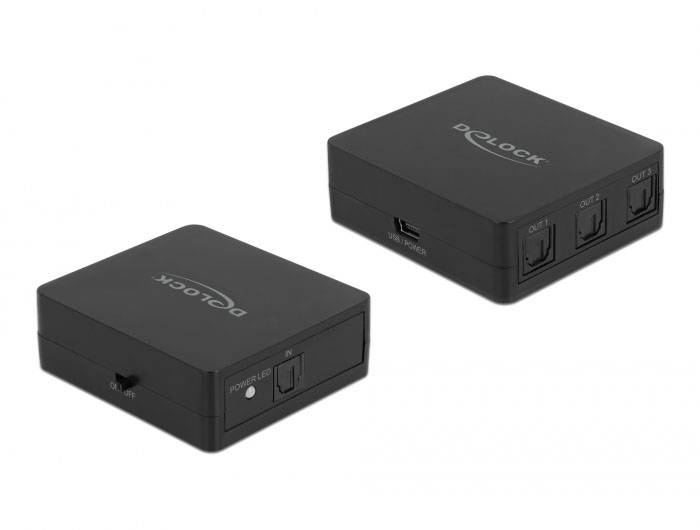

S/PDIF TOSLINK Splitter 1 In 3 Out with USB power supply
Highlights & Details
- Audio input channels: 1
- 3 channels
- Audio connections Toslink
- Audio output: Toslink
- On/Off switch
- Black
Technical specifications
- Product type
Toslink switch
- Factory colour
Black
- Width
54 mm
- Height
20 mm
- Depth
61 mm
- Weight
109 g
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Output voltage
5 V
- UKCA
yes
- Audio-in ports quantity
1
- Audio-out ports quantity
3
- On/off switch
yes
Documents & Downloads
Datasheet
Datasheet 3383359 Delock 63397 Toslink switch
User & Safety Instructions
User & Safety Instructions 3383359 Delock 63397 Toslink switch
Description
With this TOSLINK splitter of Delock, up to three TOSLINK devices can be operated simultaneously at one TOSLINK output.
Supports HD audio formats
The splitter supports all the common 2.0 and 5.1 audio formats such as LPCM, Dolby Digital, DTS audio and thus offers a sound experience like in the cinema.
High resolution scanning rate
The splitter offers a sampling rate of up to 24 bits and 96 kHz. Thus the sound playback can be played back without any loss in the High-Res audio range.
High transmission distance
The splitter supports an output transmission distance of up to 40 m via an optical TOSLINK cable with a signal loss of less than 0.2 dB / m.
USB power supply

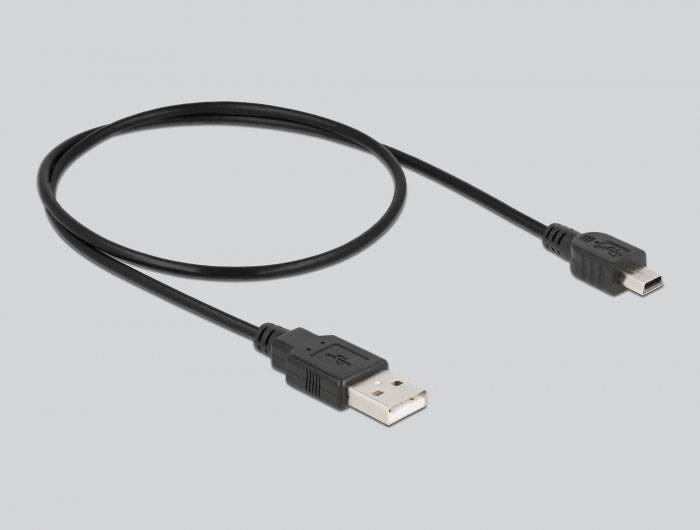

The splitter does not need an additional external power supply, the power is supplied via the USB cable included in the delivery.
This text is machine translated.
Supports HD audio formats
The splitter supports all the common 2.0 and 5.1 audio formats such as LPCM, Dolby Digital, DTS audio and thus offers a sound experience like in the cinema.
High resolution scanning rate
The splitter offers a sampling rate of up to 24 bits and 96 kHz. Thus the sound playback can be played back without any loss in the High-Res audio range.
High transmission distance
The splitter supports an output transmission distance of up to 40 m via an optical TOSLINK cable with a signal loss of less than 0.2 dB / m.
USB power supply
The splitter does not need an additional external power supply, the power is supplied via the USB cable included in the delivery.
This text is machine translated.
Features

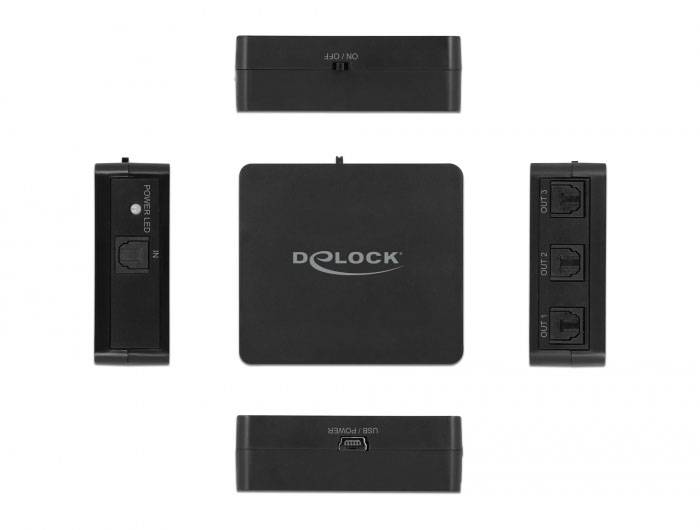

- Connections:
- Input:
- 1 x TOSLINK jack S/PDIF
- 1 x USB type Mini-B connector (5 V power supply)
- Output 3 x TOSLINK jack S/PDIF
- Supported sampling rates 32 / 44.1 / 48 / 96 kHz
- Bit rate 16 - 24 Bit
- Baud rate: Max. 16 Mbps
- Supports all standard 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
- Supports signal retiming
- On/Off switch
- Power LED (blue)
- Plastic housing
- Colour, black
- Dim. (LxWxH): Approx. 61 x 54 x 20 mm
- Voltage: 5 V
- Overvoltage protection
- USB bus Power
System requirements
- Digital optical audio signal
A free USB type A socket
