Delock 63917 GBIC [1x SATA - 1x M2]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Converter SATA Pin 8 Power socket to M.2 Key B slot
- built-in
- Host Interface: SATA
- Output interface M.2
- 6 Gbit/s
Technical specifications
- Product type
GBIC
- Connection type
SATA
M.2 NGFF
- No. of A connectors
1 x
- Type A
SATA
- No. of B connections
1 x
- Type B
M2
- Compatible with
2280
2260
2242
2230
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
114 mm
- Height
11 mm
- Width
30 mm
- Cable use
C13/C14 appliances
- 4-pin Molex
1
- UKCA
yes
- Data transfer rate (max)
6 Gbit/s
- Internal
yes
- Number of M.2 (B) slots
1
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3381171 Delock 63917 GBIC [1x SATA - 1x M2]
User & Safety Instructions
User & Safety Instructions 3381171 Delock 63917 GBIC [1x SATA - 1x M2]
Description

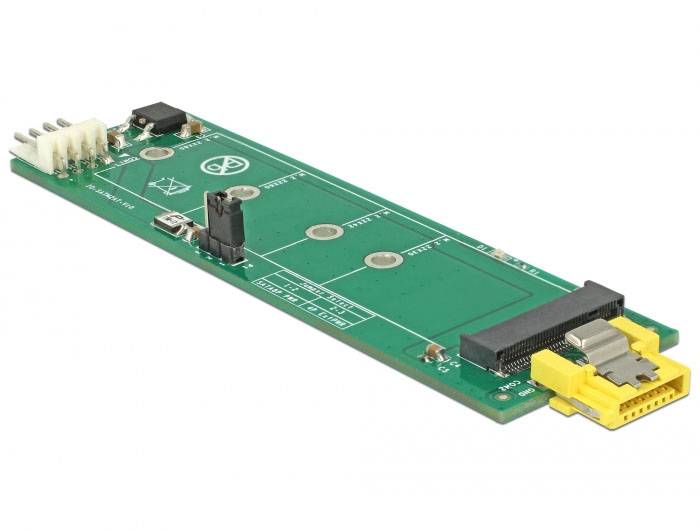

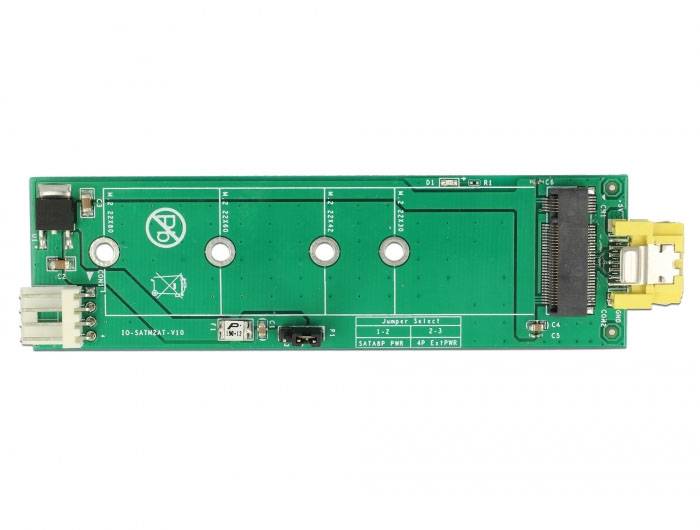

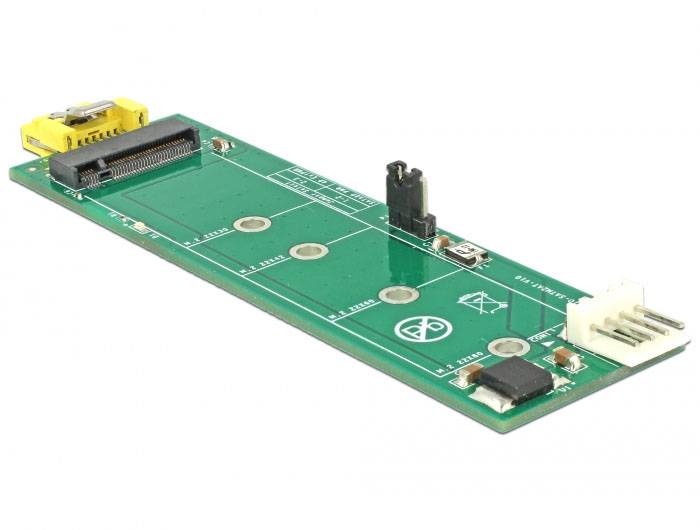

An M.2 SSD in 2280, 2260, 2242 and 2230 format can be connected to this converter from Delock. The converter can be connected to a SATA Pin 8 Power plug and requires no additional power supply. Furthermore, the converter can be connected to a standard SATA connection; a power supply has to be applied to the 4-pin power connection.
63917 video
This text is machine translated.
63917 video
This text is machine translated.
Features

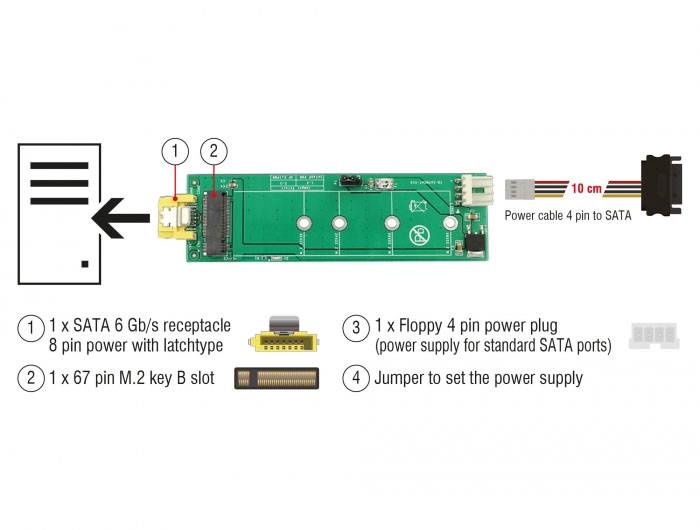

- Connections:
- 1 x SATA 6 GB/s connector pin 8 Power with snap-in function
- 1 x 67 Pin M.2 Key B Slot

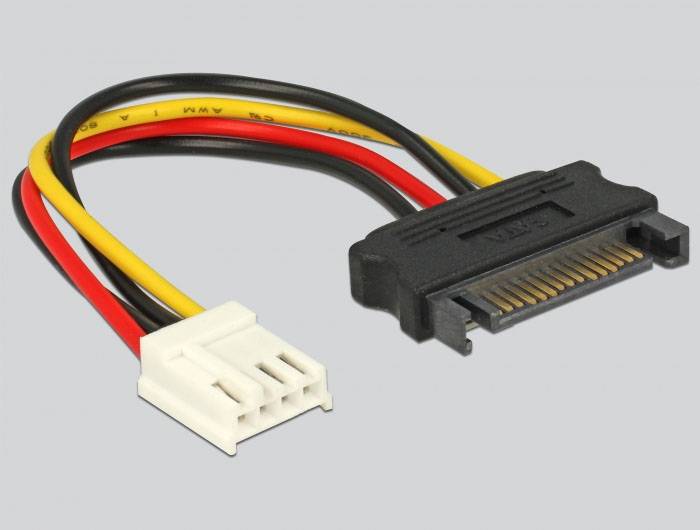

- 1 x floppy 4 pin power connector (power supply with standard SATA ports)
- Interface SATA
- Supports M.2 modules in the format 2280, 2260, 2242 and 2230 with Key B
- Or Key B+M on SATA basis
- Maximum height of the components on the module: 1.5 mm,
- Use of modules equipped on two sides possible
- LEDs for Power and activity

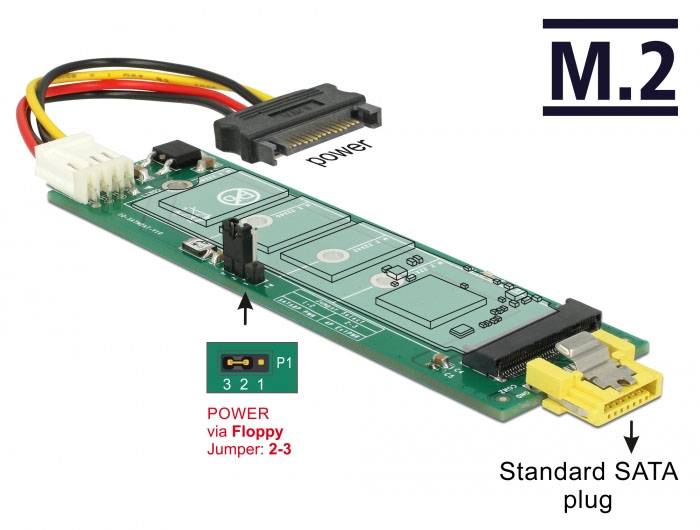

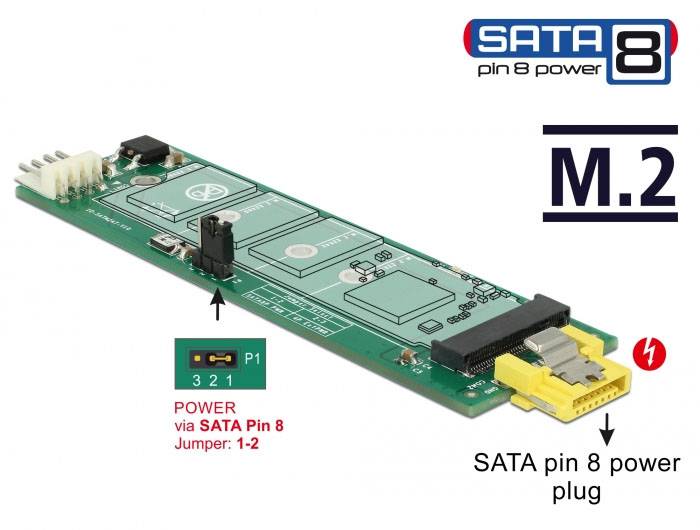

- Jumper for setting the voltage supply
- Data transfer rate of up to 6 GB/s.
- Dim. (LxWxH): Approx. 114 x 30 x 11 mm
System requirements
- Linux Kernel 3.10 or later
Windows 7/7-64/8.1/8.1-64/10/10-64
A free SATA Pin 8 Power connector or
A free SATA connection + 4-pin power connection
