Delock 64069 GBIC [1x M2 - 1x USB 3.2 2nd Gen]
EAN:
Part number:
Item no:
Datasheet (PDF)
Converter for M.2 NVMe SSD with USB 3.1 1st Gen 2
Highlights & Details
- built-in
- Host Interface: PCIe
- Output interface M.2
- NVMe SSD
- 10 Gbit/s
- Green
Technical specifications
- Product type
GBIC
- Connection type
M.2 NGFF
USB
- No. of A connectors
1 x
- Type A
M2
- No. of B connections
1 x
- Type B
USB 3.2 2nd Gen
- Chipset
JMicron
- Compatible with
2280
2260
2242
- Cable design
Round
- Version
Cable
- Factory colour
Green
- Depth
22 mm
- Height
6 mm
- Width
110 mm
- Cable use
C13/C14 appliances
- Weight
0.038
- UKCA
yes
- Data transfer rate (max)
10 Gbit/s
- Quantity
1
- Number of M.2 (M) slots
1
- Internal
yes
- NVMe
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3378986 Delock 64069 GBIC [1x M2 - 1x USB 3.2 2nd Gen]
User & Safety Instructions
User & Safety Instructions 3378986 Delock 64069 GBIC [1x M2 - 1x USB 3.2 2nd Gen]
Description

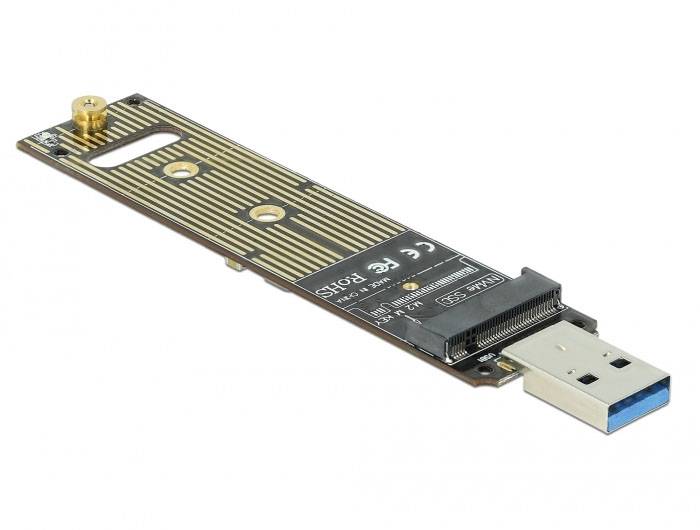

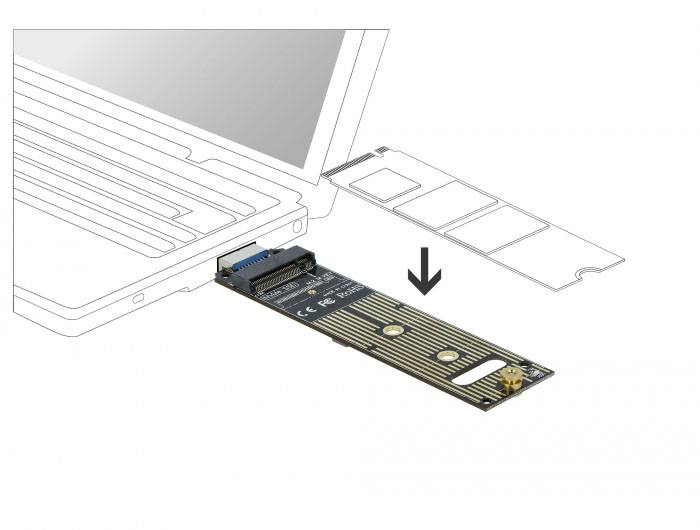

This converter from Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format and can be connected via USB to a PC or a notebook.
Ideal test equipment
Due to the USB-A plug and the direct mounting of the SSD on the board, without casing, the converter from Delock can be used excellently as test equipment.
This text is machine translated.
Ideal test equipment
Due to the USB-A plug and the direct mounting of the SSD on the board, without casing, the converter from Delock can be used excellently as test equipment.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB 10 Gbps (USB 3.1 1st Gen 2) Type A connector
- 1 x 67 Pin M.2 Key M Slot
- JMicron JMS583 chipset
- Supports M.2 modules in 2280, 2260 and 2242 format with Key M or
- Key B+M on PCIe (NVMe) basis
- Maximum height of the components on the module: 1.5 mm,
- Use of modules equipped on two sides possible
- Supports NVM Express (NVMe SSD)
- Data transfer rate up to 10 Gbps
- LED display for Power and access
- Bootable
- Dim. (LxWxH): Approx. 110 x 22 x 6 mm
- Plug & Play
System requirements
- Chrome OS 71.0 or higher
Linux Kernel 4.9.4 or later
Mac OS X 10.14 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port
