Delock 64072 KVM changeover switch 3840 x 2160 p
EAN:
Part number:
Item no:
HDMI 2 - 1 switch bi-directional 4K 60 Hz compact
Highlights & Details
- HDMI video port type
- 3840 x 2160 pixels
- Black
Technical specifications
- Product type
KVM changeover switch
- Supported monitors
2
- Resolution (max.)
3840 x 2160 p
- Factory colour
Black
- Width
53 cm
- Height
20 cm
- Depth
50 cm
- Weight
83 g
- Cable design
Round
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- Cable use
C13/C14 appliances
- Connection type
HDMI
- UKCA
yes
- Manual
yes
- HDMI in
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381580 Delock 64072 KVM changeover switch 3840 x 2160 p
Description

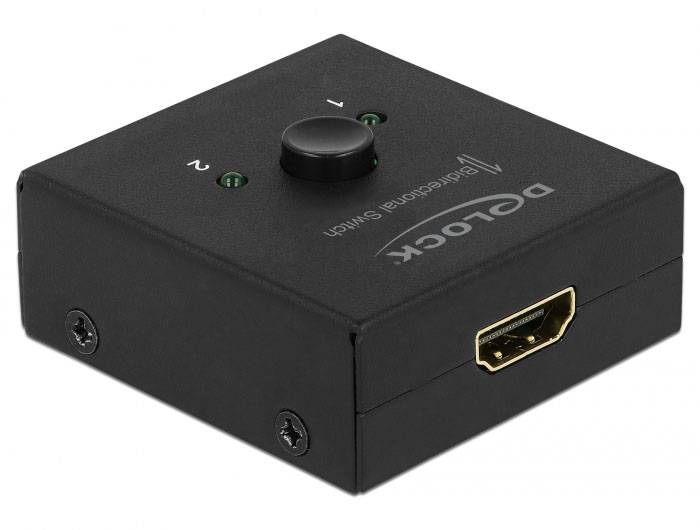

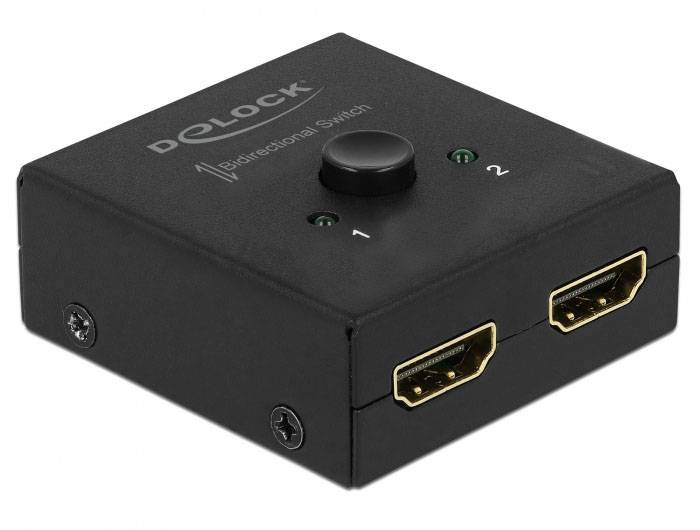

This HDMI converter from Delock is a manual bi-directional switch for connecting different devices with HDMI connection, which offers two different possible applications.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Features
- Connections:
- Function 1
- Input 2 x HDMI type A socket
- Output 1 x HDMI type A socket
- Function 2
- Input 1 x HDMI type A socket
- Output 2 x HDMI type A socket
- High Speed HDMI specification
- Supports HDR
- HDMI port switching via switch
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the
- Connected hardware)
- Do not Require external current supply
- Metal housing
- Colour, black
- Dim. (LxWxH): Approx. 53 x 50 x 20 mm
System requirements
- A free HDMI socket
HDMI cable
