Delock 64077 GBIC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
U.2 for M.3 / NF1 converter
- built-in
- Host Interface: U.2
- Output interface: M.3
- NVMe SSD
- Purpose: PC
- 32 Gbit/s
- Red, silver
Technical specifications
- Product type
GBIC
- No. of A connectors
1 x
- Type A
U.2
- Cable design
Round
- Version
Cable
- Factory colour
Red
Silver
- Depth
130 mm
- Height
7 mm
- Width
70 mm
- Cable use
C13/C14 appliances
- Cooling
Passive
- UKCA
yes
- Data transfer rate (max)
32 Gbit/s
- Quantity
1
- Internal
yes
- NVMe
yes
- Manual
yes
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3379056 Delock 64077 GBIC
User & Safety Instructions
User & Safety Instructions 3379056 Delock 64077 GBIC
Description

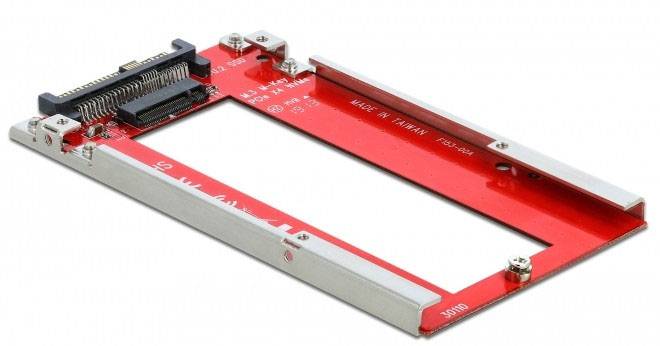

An M.3 / NF1 (NGSFF) SSD can be connected to this converter of Delock. An M.3 Module with 110 mm length and 30 mm width can be connected to the converter. The converter can be integrated internally in the system via the U.2 68-pin interface.
Cooling the SSD

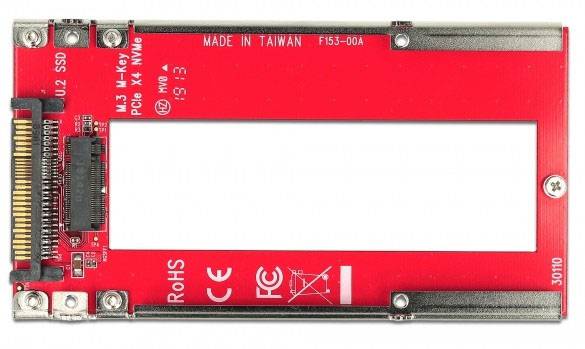

For better cooling, the PCB of the converter has a recess, which lies directly below the inserted SSD. This makes it possible to attach an optional cooler also to the underside of the SSD.
This text is machine translated.
Cooling the SSD
For better cooling, the PCB of the converter has a recess, which lies directly below the inserted SSD. This makes it possible to attach an optional cooler also to the underside of the SSD.
This text is machine translated.
Features
- Connections:
- 1 x U.2 SFF-8639 plug
- 1 x M.3 / NF1 Slot
- Interface PCIe / NVMe SSD
- Supports M.3 / NF1 modules in the format 30110
- Supports M.3 / NF1 SSD up to 4.8 mm thickness
- Supports NVM Express (NVMe SSD)
- Data transfer rate up to 32 Gbps
- Bootable, UEFI version 2.3.1 or higher
- Dim. (LxWxH): Approx. 130 x 70 x 7 mm
System requirements
- Linux Kernel 4.6.4 or later
Windows 7/7-64/8.1/8.1-64/10/10-64
A free U.2 SFF-8639 interface
