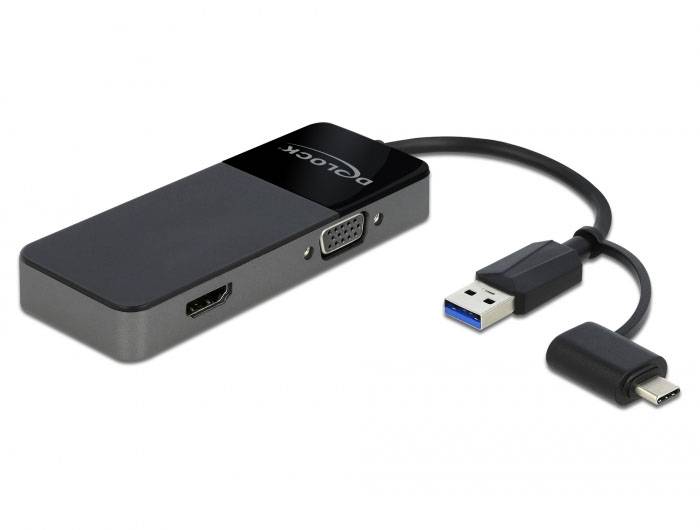

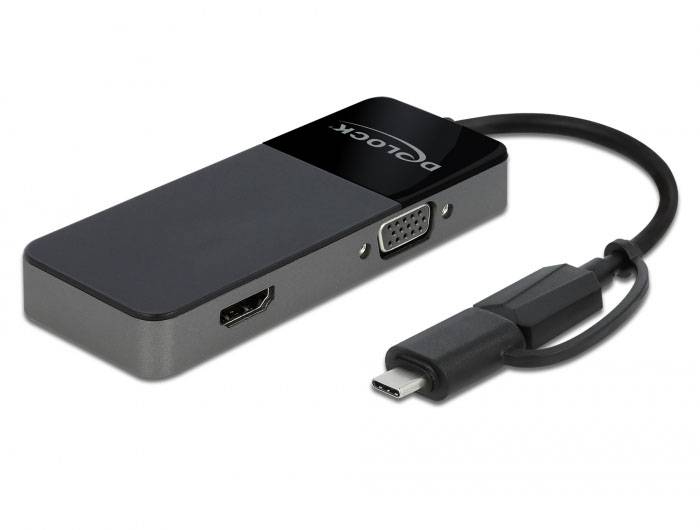

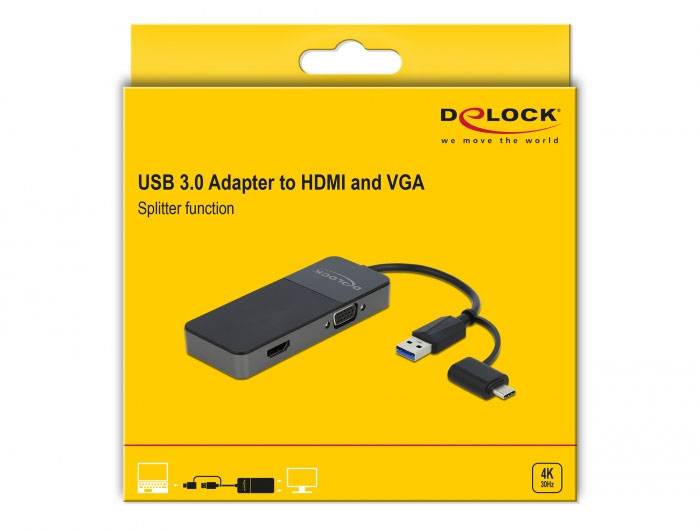

Delock 64085 USB 3.2 Gen 1 (USB 3.0) / HDMI / VGA Adapter Black 12 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Product type
TV/monitor Adapter
- Connection type
USB 3.2 Gen 1 (USB 3.0)
HDMI
VGA
- Type A
USB-A
USB-C®
- Type B
HDMI®
VGA
- Cable length
12 cm
- Factory colour
Black
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- No. of VGA ports
1 x
- Weight
0
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383409 Delock 64085 USB 3.2 Gen 1 (USB 3.0) / HDMI / VGA Adapter Black 12 cm
User & Safety Instructions
User & Safety Instructions 3383409 Delock 64085 USB 3.2 Gen 1 (USB 3.0) / HDMI / VGA Adapter Black 12 cm
Description
This adapter from Delock enables the connection of an additional HDMI and VGA monitor, projector etc. to a PC or a notebook via USB type A connection. No DisplayPort alternative mode support is required, so it can also be used with older computers. The cable-mounted adaptor also allows you to connect to the USB Type-C™ port. Two monitors can be operated at the same time, in order to extend, for example, the desktop.
UHD and full HD resolution
A resolution of up to 4K 30 Hz is possible at the HDMI connection and at VGA connection up to 1080p at 60 Hz. This also applies if both video outputs are operated at the same time.
Mirroring and extension
If only an additional video output is used, the desktop can be alternatively extended or mirrored. If both video outputs are used additionally, these two can be extended, or one monitor is expanded and the other mirrored.
This text is machine translated.
UHD and full HD resolution
A resolution of up to 4K 30 Hz is possible at the HDMI connection and at VGA connection up to 1080p at 60 Hz. This also applies if both video outputs are operated at the same time.
Mirroring and extension
If only an additional video output is used, the desktop can be alternatively extended or mirrored. If both video outputs are used additionally, these two can be extended, or one monitor is expanded and the other mirrored.
This text is machine translated.
Features
- Connections:
- On the device:
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A connector
- 1 x HDMI-A socket
- 1 x VGA sockets
- On the adapter:
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A socket
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) USB Type-C™ connector
- Chipsatz: Silicon motion
- Resolution:
- HDMI up to 3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- VGA up to 1920 x 1080 @ 60 Hz
- (Depending on the system and the connected hardware)
- Supports HDCP 1.4
- Backward compatible to USB 2.0.
- Transmission of audio and video signals
- Functions: Mirror and expand
- Cable length without connections: Approx. 12 cm
- Colour, black
System requirements
- Mac OS X 10.12.6 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port or
PC or laptop with a free USB Type-C™ port
