Delock 64093 GBIC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
USB Type-C™ to SFF-8643 converter
- built-in
- Host interface: USB Type-C.
- Output interface SFF-8643
- NVMe SSD
- 10 Gbit/s
- Black, Green
Technical specifications
- Host interface: USB Type-C.
- Other operating systems support: ChromeOS
- Product type
GBIC
- Connection type
USB-C®
SFF
- No. of A connectors
1 x
- Type A
USB-C®
- Type B
USB
- Chipset
ASMedia
- Cable design
Round
- Version
Cable
- Factory colour
Black
Green
- Depth
41 mm
- Height
16 mm
- Width
84 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Data transfer rate (max)
10 Gbit/s
- Internal
yes
- NVMe
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3380150 Delock 64093 GBIC
User & Safety Instructions
User & Safety Instructions 3380150 Delock 64093 GBIC
Description

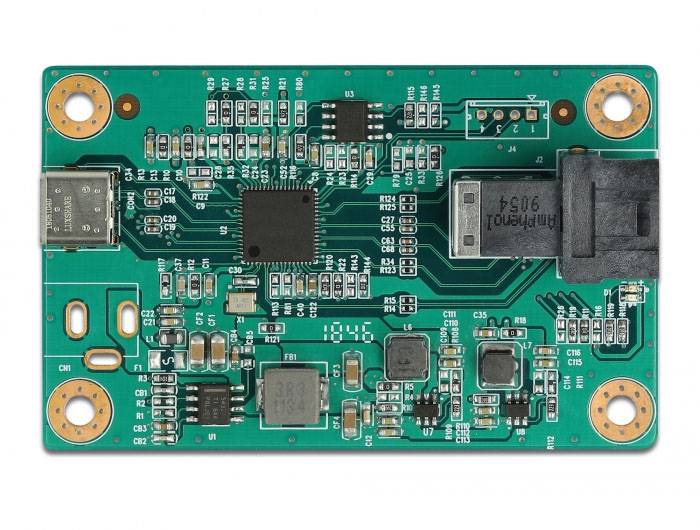

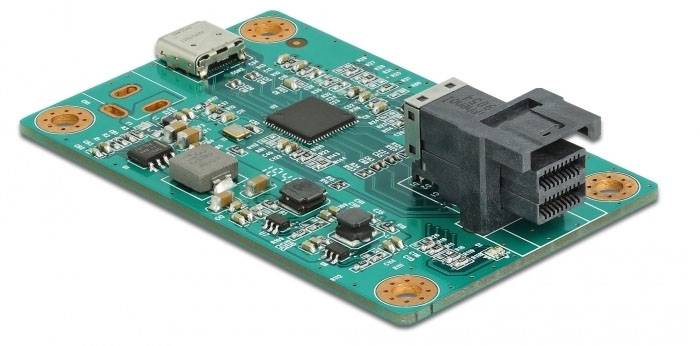

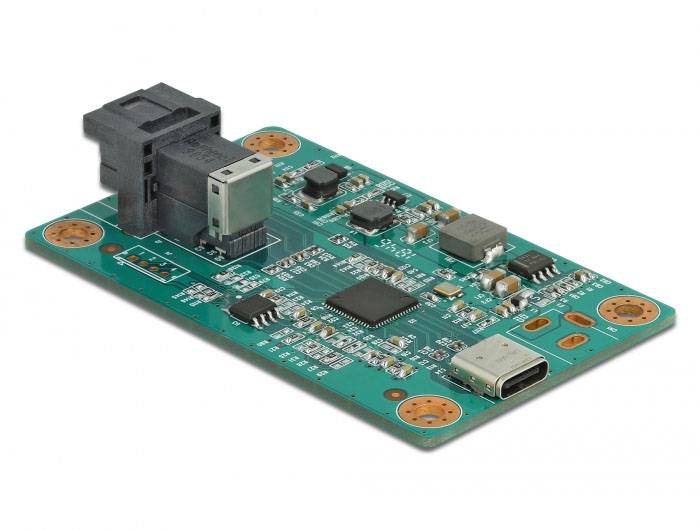

This Delock converter allows you to connect a U.2 NVMe SSD or M.2 SSD, for example, via the USB port to a PC or notebook using optional cable. Thus, the converter can be used excellently as test equipment.
Supports SuperSpeed USB 10 Gbps
A maximum data transfer rate of up to USB 3.2 Gen 2 - 10 Gbps can be achieved.
This text is machine translated.
Supports SuperSpeed USB 10 Gbps
A maximum data transfer rate of up to USB 3.2 Gen 2 - 10 Gbps can be achieved.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB 10 Gbps (USB 3.2 1st Gen 2) USB Type-C™ connector
- 1 x SFF-8643 socket
- Asmedia ASM2362 chipset
- Supports NVM Express (NVMe SSD)
- Data transfer rate up to 10 Gbps
- LED display for Power and access
- Bootable
- Dim. (LxWxH): Approx. 79 x 41 x 16 mm
System requirements
- Chrome OS 76.0 or higher
Linux Kernel 3.3 or later
Mac OS X 10.15.1 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or Notebook with a free USB port.
