Delock 64148 GBIC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

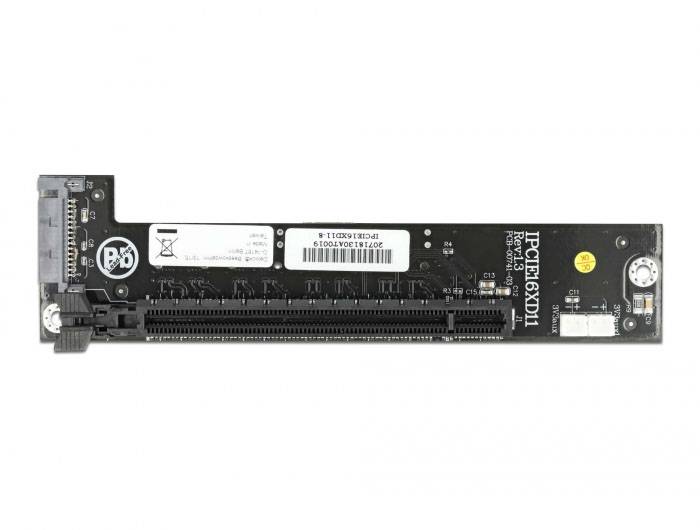

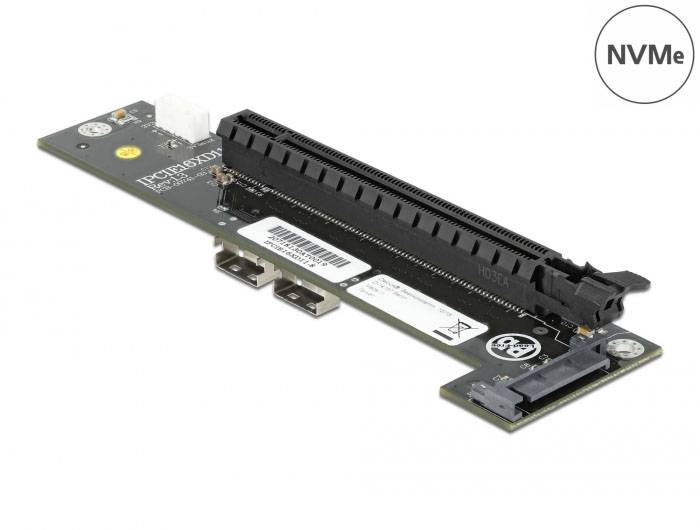

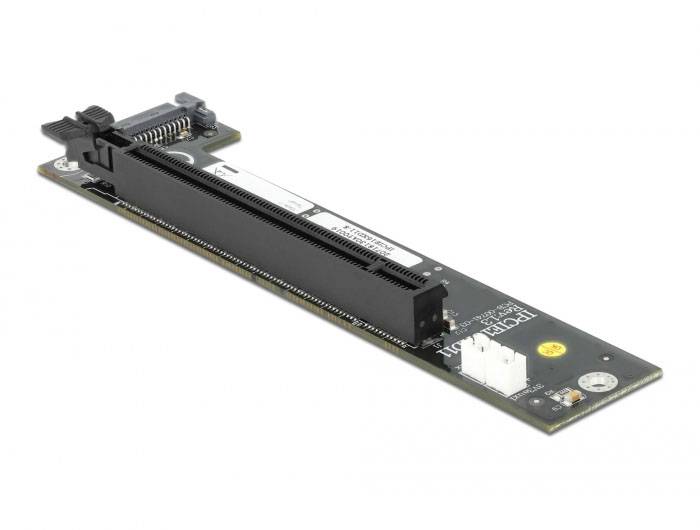

Converter 2 x SFF-8654 to PCIe x16 Bifurcation
- built-in
- Output interface: PCIe
- NVMe SSD
- Black
Technical specifications
- Product type
GBIC
- Connection type
SFF
PCI Express
- No. of B connections
1 x
- Type B
PCI Express
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
150 mm
- Height
21 mm
- Width
40 mm
- Cable use
C13/C14 appliances
- Wireless charging
No
- UKCA
yes
- Internal
yes
- NVMe
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3380172 Delock 64148 GBIC
User & Safety Instructions
User & Safety Instructions 3380172 Delock 64148 GBIC
Description
This converter from Delock can be linked in the system via the SFF-8654 interface and provides a PCI Express x16 slot. Various PCI Express cards can be connected to the slot.
PCI Express x16 with 8 lanes
The converter supports four PCIe lanes per SFF-8654 port and thus offers a maximum of 8 lanes. Thus, it is possible to use the converter with only one SFF-8654 connection, as long as the respective PCI Express card only requires a maximum of four PCIe lanes.
PCIe fork
The converter can be connected to a PCI Express card that has the PCIe Bifurcation function to provide eight lanes (x4 + x4) on the PCIe x16 slot. This allows PCI Express cards with bifurcation function to be connected to the PCI Express slot of the converter, for example to connect two M.2 or U.2 SSDs.
This text is machine translated.
PCI Express x16 with 8 lanes
The converter supports four PCIe lanes per SFF-8654 port and thus offers a maximum of 8 lanes. Thus, it is possible to use the converter with only one SFF-8654 connection, as long as the respective PCI Express card only requires a maximum of four PCIe lanes.
PCIe fork
The converter can be connected to a PCI Express card that has the PCIe Bifurcation function to provide eight lanes (x4 + x4) on the PCIe x16 slot. This allows PCI Express cards with bifurcation function to be connected to the PCI Express slot of the converter, for example to connect two M.2 or U.2 SSDs.
This text is machine translated.
Features
- Connections:
- 2 x SFF-8654 socket
- 1 x SATA 15-pin power connection
- 1 x PCI Express x16 (8-Lane), V4.0
- 2 x 2 pin 3.3 V power connection for PCIe slot
- Supports NVM Express (NVMe SSD)
- Dim. (LxWxH): Approx. 150 x 40 x 21 mm
System requirements
- One free SFF-8654 interface (4-lane)
Two free SFF-8654 interfaces (4-lane + 4-lane) with bifurcation
