Name: Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey
Brand: Delock
SKU: 3381965

Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey-0

Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey-1

Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey-2

Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey-3

Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Thunderbolt™ 4 hub 3 port with additional SuperSpeed USB 10 Gbps type-A port - 8K

Host Interface: Thunderbolt 4
Hub interfaces: Thunderbolt, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Number of connections: 5
40000 Mbit/s
Grey aluminum

Technical specifications

Product type: USB hub

Cable specs: Thunderbolt™ 4

Transfer rate (max.): 40 GBit/s

Port: 3+1 ports

Interfaces (output): Thunderbolt 4
USB type A
DC jack 3.5 mm

No. of outputs: 3 x

Power supply (LOV): mains-powered

Used at: External

Distributor/switch features: + USB C connector

Factory colour: Grey

Width: 74 mm

Height: 13 mm

Depth: 124 mm

Weight: 880 g

Cable design: Round

Version: Cable

Type A: Thunderbolt 4

Type B: USB

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Cable use: C13/C14 appliances

Connection type: Thunderbolt

Max. output current: 5 A

Output voltage: 20 V

Type: AC

Input voltage: 100 - 240 V

UKCA: yes

AC adapter included: yes

Ports quantity: 5

Data transfer rate: 40000 Mbit/s

Quantity per pack: 1 Stück(e)

DC-in jack: yes

Manual: yes

Plug and Play: yes

Thunderbolt ports quantity: 4

Documents & Downloads

Datasheet

Datasheet 3381965 Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey

User & Safety Instructions

User & Safety Instructions 3381965 Delock 64157 USB hub 3+1 ports Thunderbolt 4, USB type A, DC jack 3.5 mm Thunderbolt™ 4 40 GBit/s + USB C connector Grey

Description

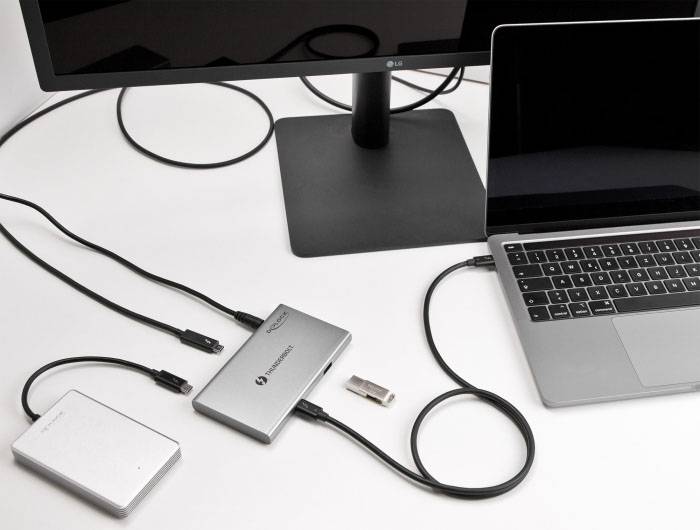

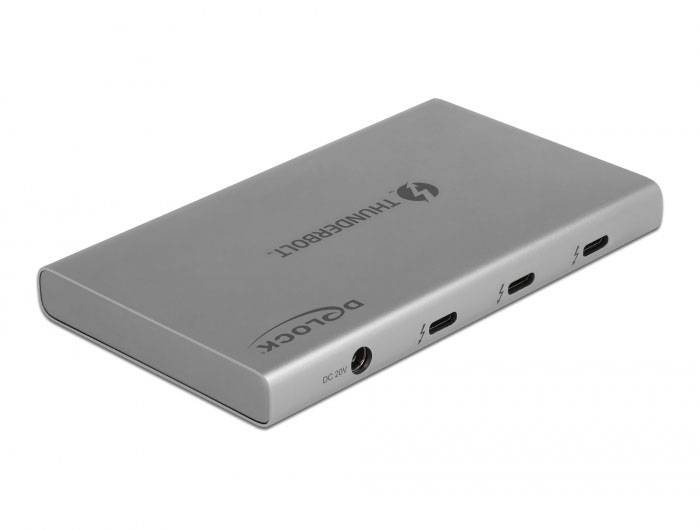

This sturdy Thunderbolt™ 4 hub from Delock in a metal enclosure is connected to a computer or notebook via the Thunderbolt™ port. It extends the computer by three Thunderbolt™ 4 ports and a SuperSpeed USB type A socket.

Certified

Thunderbolt 4 hub
Three complete Thunderbolt™ 4 ports are available, to which up to 40 Gbps of data can be transferred. In addition, two 4K monitors or one 8K monitor can be connected, because the Thunderbolt™ connection supports DP Alternate Mode. You can also connect any USB-C™ device.

Additional USB Type-A socket
The USB Type-A connection supports data transfer up to 10 Gbps. Various USB devices, such as USB storage or external hard disks can be connected.

USB Power delivery and dynamic power distribution with max. 85 watt

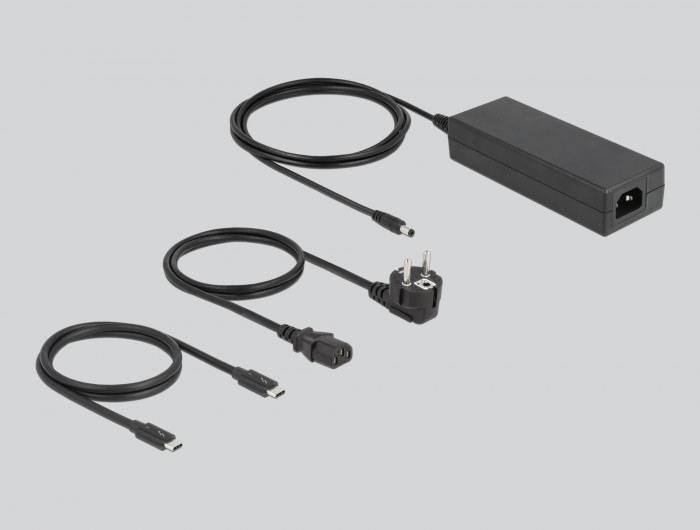

The supplied power supply supplies the hub, the devices connected to the hub and the host device with power, maximum 85 Watts. A dynamic distribution of the power takes place. This means that the notebook can be charged with a maximum of 60 watts and then there is a remaining 25 watt available for the hub. If the laptop requires less power for charging, a correspondingly more power is available for the hub, maximum however 54.5 watt. Each of the three downstream Thunderbolt™ ports offers a maximum power of 15 watts, while the type-A USB port offers a maximum of 4.5 watts.

This text is machine translated.
