Delock 64221 GBIC [1x M2 - 1x Mini PCI]
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

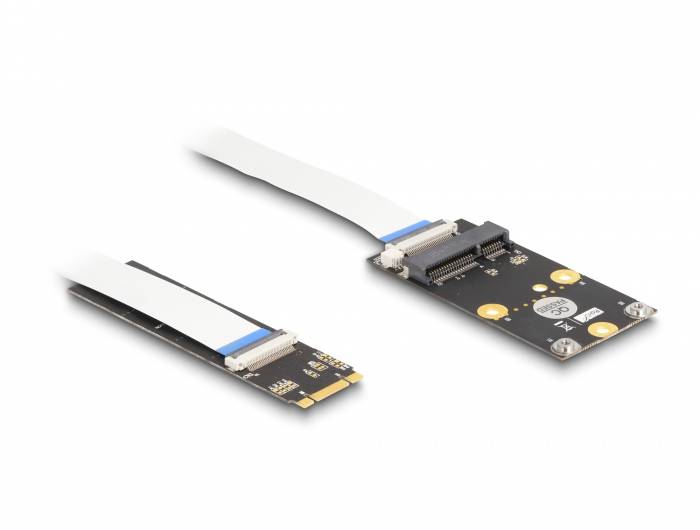

Converter M.2 Key B+M plug to 1 x Mini PCIe slot half size / full size with flexible cable
- built-in
- Host Interface: M.2
- Mini PCIe output interface
- Black
Technical specifications
- Product type
GBIC
- Connection type
M.2 NGFF
Mini PCI Express
- No. of A connectors
1 x
- Type A
M2
- No. of B connections
1 x
- Type B
Mini PCI
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Internal
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3381488 Delock 64221 GBIC [1x M2 - 1x Mini PCI]
User & Safety Instructions
User & Safety Instructions 3381488 Delock 64221 GBIC [1x M2 - 1x Mini PCI]
Description
This converter from Delock converts the M.2 Key B or Key M interface in a mini PCIe interface. Various mini PCIe modules with USB and PCIe support can be used on this converter. WLAN, Bluetooth, GNSS, 4G, 5G, etc. can be connected to the M.2 Key B or Key M interface, HSPA and NFC modules. It is also possible to use both functions simultaneously with a module that has WLAN and Bluetooth, for example.
This text is machine translated.
This text is machine translated.
Features

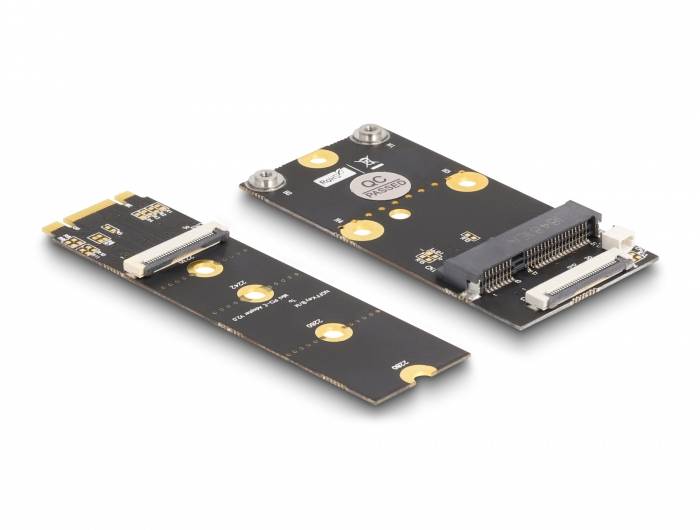

- Connections:
- 1 x M.2 Key B+M plug
- 1 x Mini PCIe slot

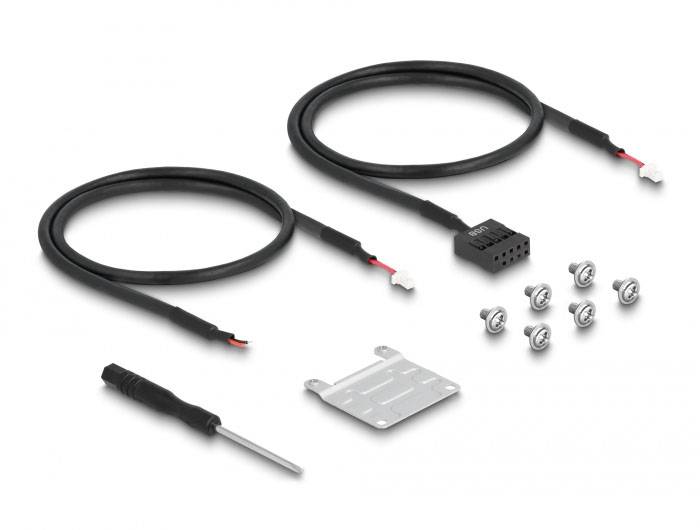

- 1 x 2 Pin header for USB connection
- PCI Express REV 2.0
- Interface PCIe + USB
- Form factor M.2: 2280
- Form-factor Mini PCIe: Half size and full size
- Suitable for M.2 slot with key M or key B on PCIe basis
- Dimensions (LxWxH):
- M.2 Card: Approx. 80 x 22 x 3 mm
- Mini PCIe Card: Approx. 66 x 32 x 5 mm
System requirements
- One free M.2 Key B or Key M slot
