Name: Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]
Brand: Delock
SKU: 3381179

Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]-0

Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]-1

Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]-2

Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]-3

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

2.5″ Converter U.3 SFF-8639 to M.2 NVMe Key M - 7 mm

built-in
Host Interface: U.3
Output interface M.2
NVMe SSD
Red

Technical specifications

Host Interface: U.3
Support for other operating systems: UEFI 2.3
Sustainability Compliance: Yes

Product type: GBIC

Connection type: M.2 NGFF

No. of A connectors: 1 x

Type A: U.3 NVMe PCIe 4.0 x4

No. of B connections: 1 x

Type B: M2

Compatible with: 2280
2260
2242

Cable design: Round

Version: Cable

Factory colour: Red

Depth: 100 mm

Height: 7 mm

Width: 70 mm

Cable use: C13/C14 appliances

Max. output current: 5 A

Output voltage: 3.3 V

UKCA: yes

Quantity per pack: 1 Stück(e)

Number of M.2 (M) slots: 1

Internal: yes

NVMe: yes

Manual: yes

Easy to install: yes

Documents & Downloads

Datasheet

Datasheet 3381179 Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]

User & Safety Instructions

User & Safety Instructions 3381179 Delock 64228 GBIC [1x U.3 NVMe PCIe 4.0 x4 - 1x M2]

Description

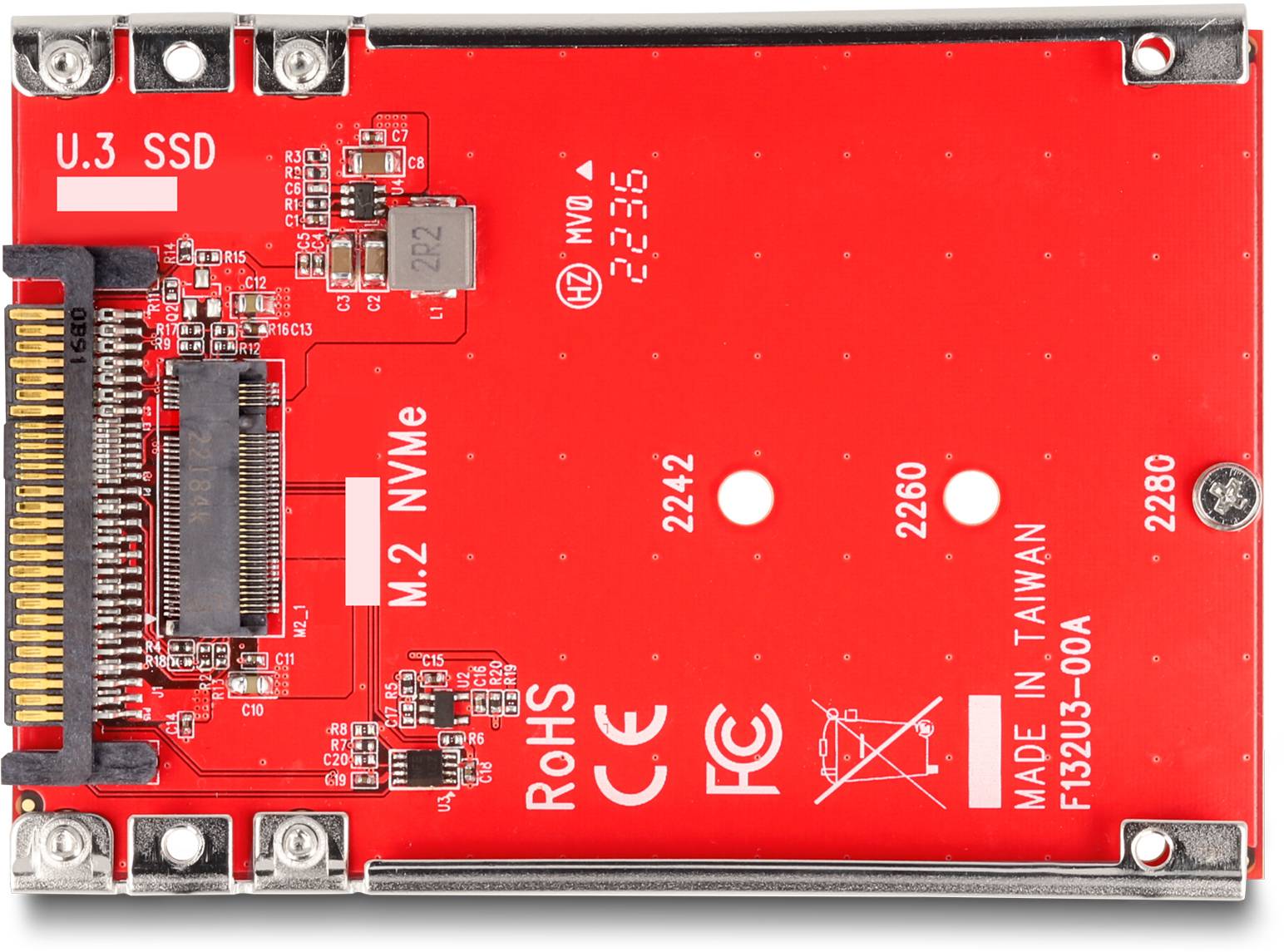

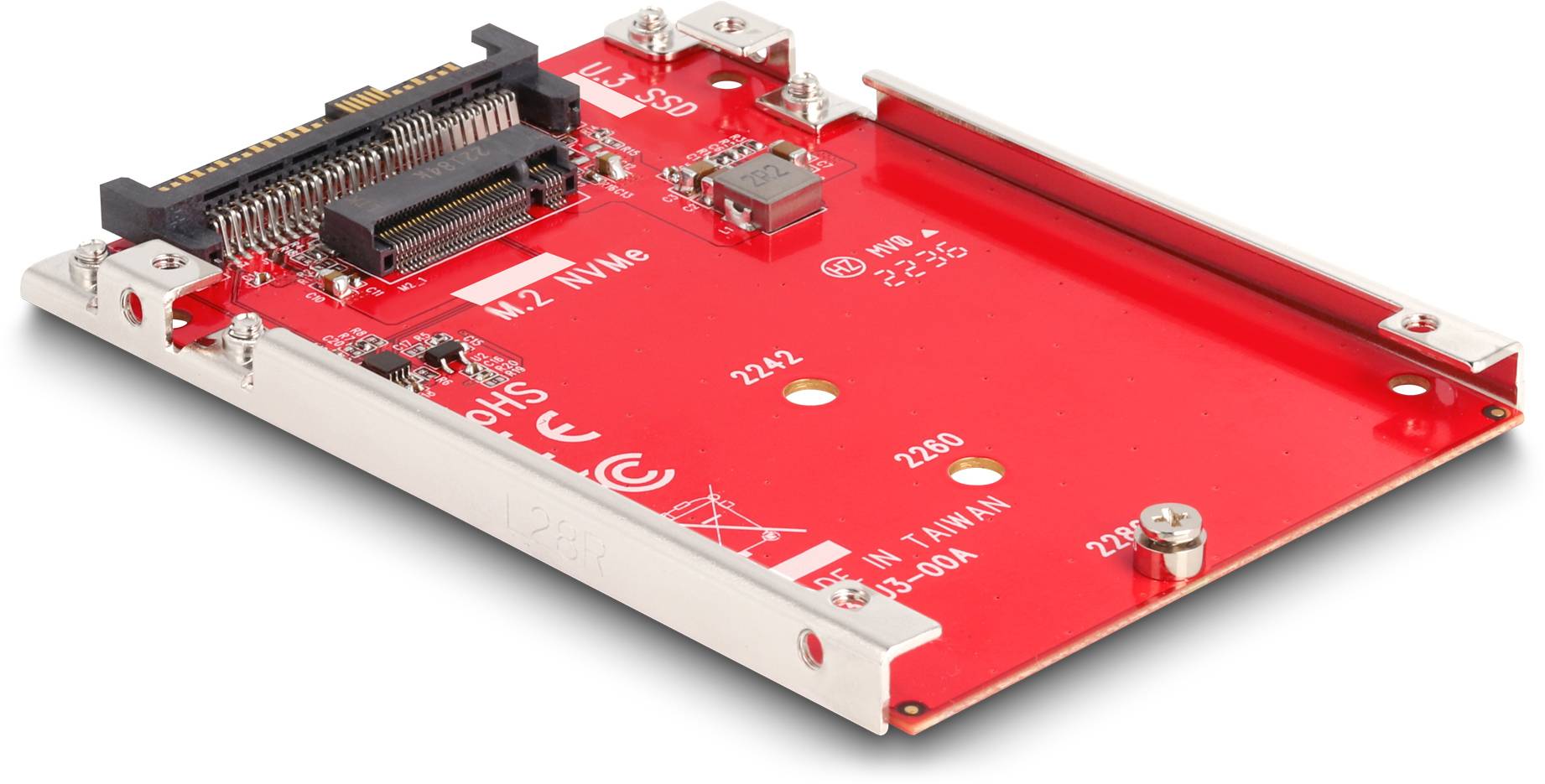

An M.2 SSD in 2280, 2260 and 2242 format can be connected to this Delock converter. The converter can be internally connected to the system via the U.3 interface.

This text is machine translated.

Features

Connections:
1 x U.3 SFF-8639 plug
1 x M.2 Key M slot
PCIe x4 REV interface 4.0
Supports M.2 modules in the format 2280, 2260 and 2242 with Key M or Key B+M on PCIe basis
Maximum height of the components on the module: 1.5 mm, use of two-sided modules possible
Supports NVM Express (NVMe SSD)
Bootable, UEFI version 2.3.1 or higher
Maximum output power 16.5 Watt (3.3 V / 5 A)
Dim. (LxWxH): Approx. 100 x 70 x 7 mm

System requirements

Linux Kernel 5.15 or later
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2019
A free U.3 SFF-8639 interface
