1/4
Delock 64232 USB hub 4+2 ports USB type A, USB C® USB 3.2 2nd Gen 10 GBit/s + USB C connector Grey 64232
EAN:
Part number:
Item no:
Datasheet (PDF)
6 port USB hub with 4 x USB type A socket and 2 x USB type C™ socket
Highlights & Details
- Cable connected
- Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type A + Type-C.
- Plug & Play
Technical specifications
- Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type A + Type-C.
- Product type
USB hub
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Port
4+2 ports
- Interfaces (output)
USB type A
USB C®
- No. of outputs
6 x
- Cable length
15 cm
- Used at
External
- Distributor/switch features
+ USB C connector
- Factory colour
Grey
- Width
25 mm
- Height
17 mm
- Depth
125 mm
- Weight
0.087
- Cable design
Round
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
- USB 2.0 ports quantity
4
- Microphone in
no
- Card reader integrated
no
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3381489 Delock 64232 USB hub 4+2 ports USB type A, USB C® USB 3.2 2nd Gen 10 GBit/s + USB C connector Grey 64232
User & Safety Instructions
User & Safety Instructions 3381489 Delock 64232 USB hub 4+2 ports USB type A, USB C® USB 3.2 2nd Gen 10 GBit/s + USB C connector Grey 64232
Description

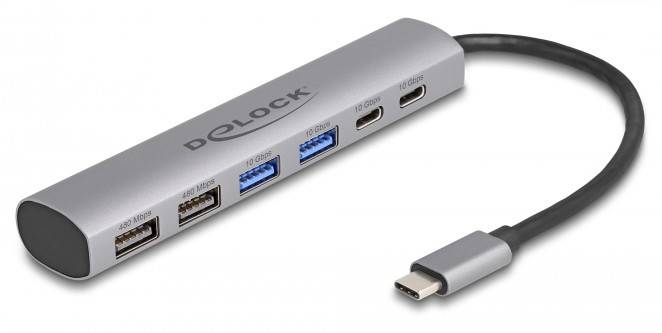

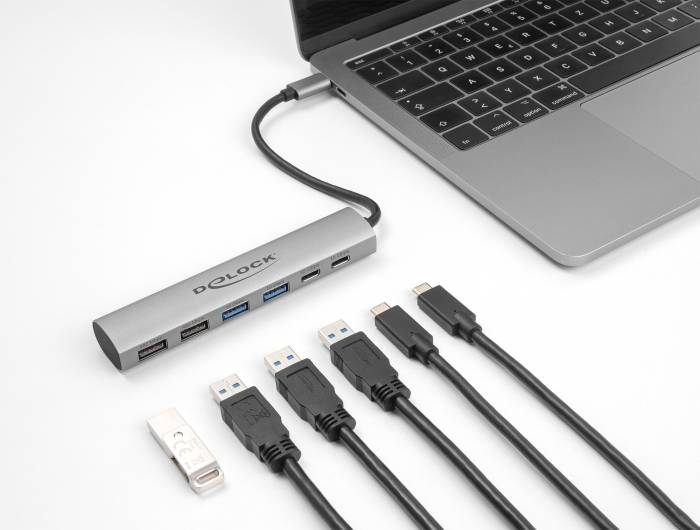

The Delock USB hub can be connected to a PC or notebook via the USB Type-C™ interface. It has four USB Type-A connectors and two USB Type-C™ connectors. Different USB devices, such as docking stations, card readers, external housings etc. can be connected. A maximum data transfer rate of up to 10 Gbps can be achieved. Owing to its small dimensions and its stable casing this Delock hub is especially suitable while traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x USB 10 Gbps USB Type-C™ connector
- 2 x USB 10 Gbps USB Type-C™ jack
- 2 x USB 10 Gbps Type-A socket
- 2 x USB 2.0 type A socket
- Fresco Logic FL7002, FL5500, VIA VL162
- Data transfer rate up to 10 Gbps
- Plug & Play
- Aluminium casing material
- Colour: grey
- Cable length without connections: Approx. 15 cm
- Dim. (LxWxH): Approx. 125 x 25 x 17 mm
System requirements
- Chrome OS
Linux Kernel 5.15 or later
Mac OS X 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
Device with a free USB4™ port or a free Thunderbolt™ 4 port
