Delock 64248 USB hub 4 ports USB type A USB 3.2 1st Gen 5 GBit/s Grey 64248
EAN:
Part number:
Item no:
Datasheet (PDF)
USB 5 Gbps hub with 2 x USB type A and 2 x USB type C™ sockets and 1 x fast charge port + switch
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 1 (3.1 1 1st Gen) Type-A, USB 3.2 1st Gen (1 Gen 1) Type-C
- Number of connections: 7
- 5000 Mbit/s
- Grey metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Cable type: Round cable
- Supports other operating systems: Android, ChromeOS, iOS, iPadOS
- Product type
USB hub
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Port
4 ports
- Interfaces (output)
USB type A
- No. of outputs
4 x
- Cable length
0.6 m
- Power supply (LOV)
mains-powered
- Used at
External
- Factory colour
Grey
- Width
47 mm
- Height
23 mm
- Depth
115 mm
- Weight
0.365 kg
- Cable design
Round
- Version
Cable
- Type A
USB
- Type B
USB
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable use
C13/C14 appliances
- Supported OS
Android
- Max. output current
3 A
- Output voltage
12 V
- Type
DC
- Input voltage
100 - 240 V
- UKCA
yes
- AC adapter included
yes
- Ports quantity
7
- Data transfer rate
5000 Mbit/s
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
3
- DC-in jack
yes
- Manual
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3383815 Delock 64248 USB hub 4 ports USB type A USB 3.2 1st Gen 5 GBit/s Grey 64248
User & Safety Instructions
User & Safety Instructions 3383815 Delock 64248 USB hub 4 ports USB type A USB 3.2 1st Gen 5 GBit/s Grey 64248
Description

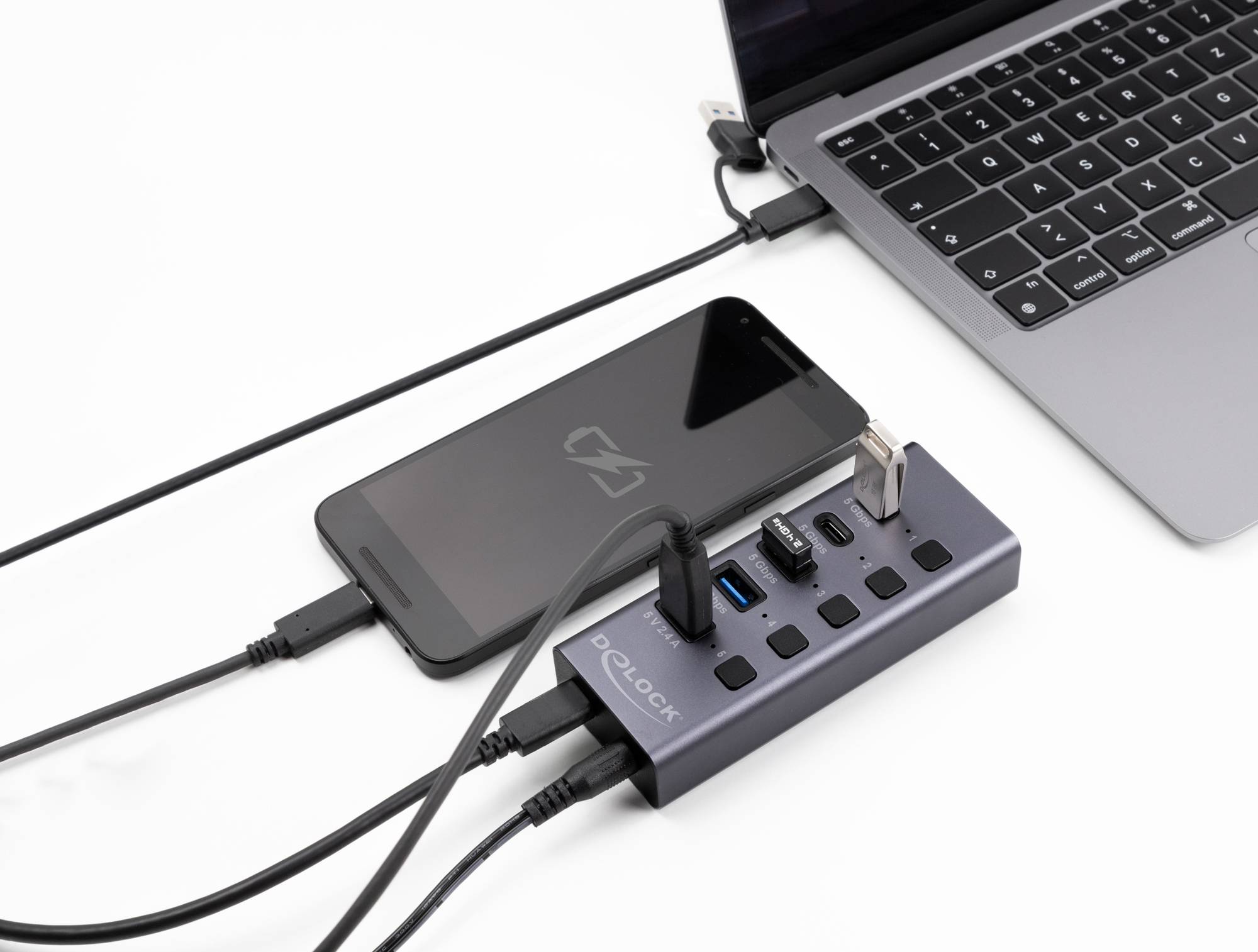

This stable Delock USB hub in a metal enclosure is connected to a computer, notebook or mobile device via the USB Type A or USB-C™ connector. It extends the computer by four USB ports. Different USB devices, such as USB sticks, card readers, external housings etc. can be connected. A maximum data transfer rate of up to 5 Gbps can be achieved. Another USB type-A port enables charging devices such as smartphones up to 2.4 A. Because of the specially designed adapter, the Delock hub can be quickly and easily connected to the USB type A port. Thus it can be connected without any problem with new devices with USB Type-C™ socket and older devices, which have only one USB Type-A connection. The adapter is located directly on the cable and therefore cannot be removed.
This text is machine translated.
This text is machine translated.
Features

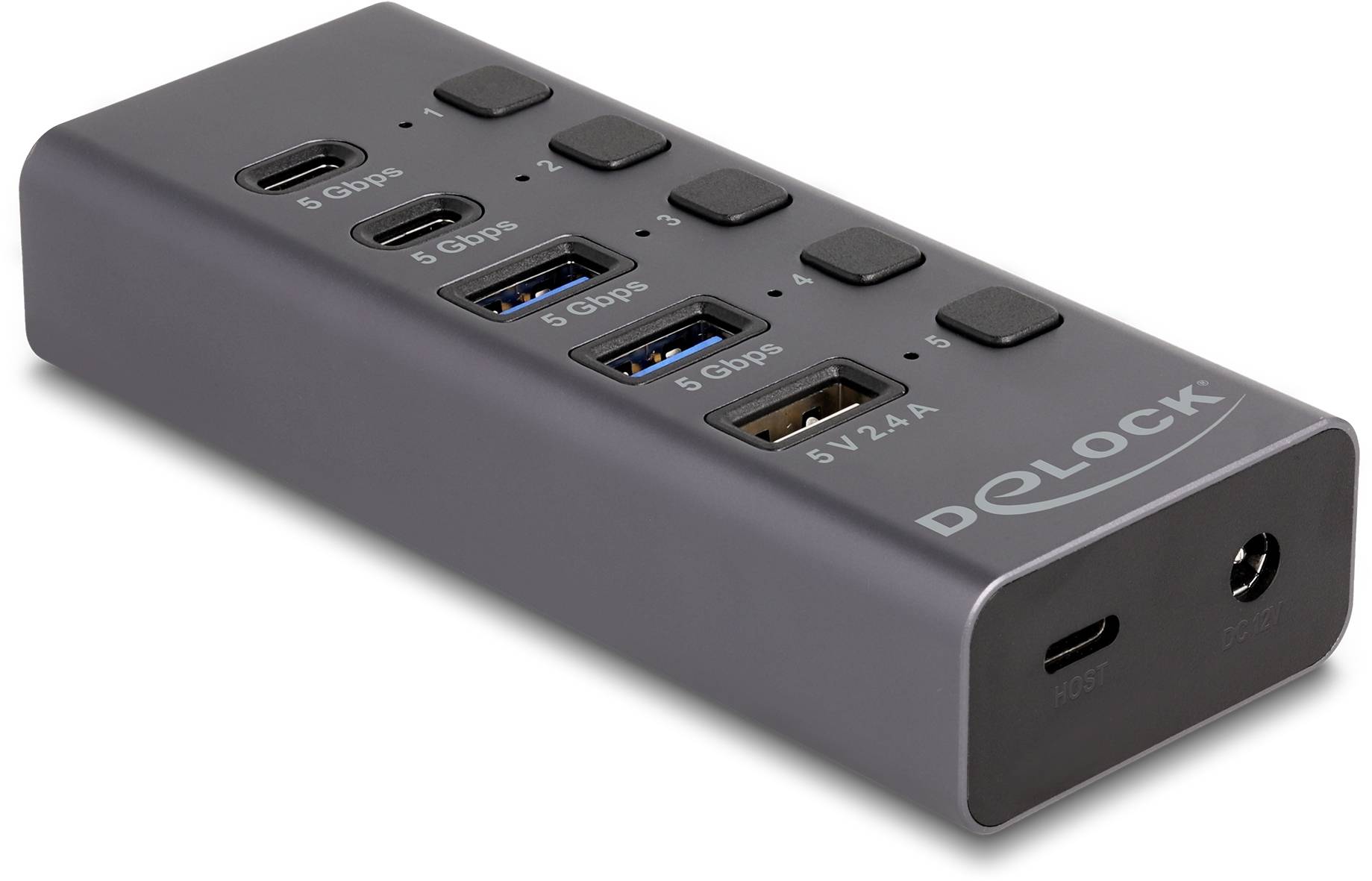

- Connections:
- 1 x USB 5 Gbps USB Type-C™ jack
- 2 x USB 5 Gbps Type-A socket
- 2 x USB 5 Gbps USB Type-C™ jack
- 1 x USB Type-A charging socket (max. 5 V / 2.4 A)
- 1 x 12 V DC power socket
- Data transfer rate up to 5 Gbps
- 5 x LED display
- Heavy duty metal casing
- Power supply: Bus-powered or self-powered
- Dim. (LxWxH): Approx. 115 x 47 x 23 mm
- Colour: grey
- Plug & Play
System requirements
- Android 11.0 or higher
Chrome OS
Linux Kernel 5.15 or later
Mac OS X 12.4 or higher
Windows 10/10-64/11
IPad Air (4. Next generation) or higher
IPad Pro (3) Next generation) or higher
Surface Pro 7
A free USB type-A socket or
A free USB Type-C™ socket
