Delock 65845 65845 SMA connector 50 Ω 1 pc(s) Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
SMA connector
Impedance
50 Ω
Connection
SMA
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

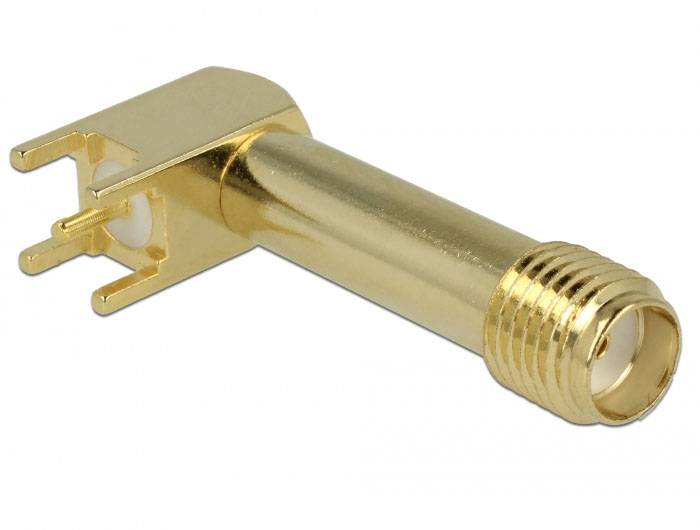

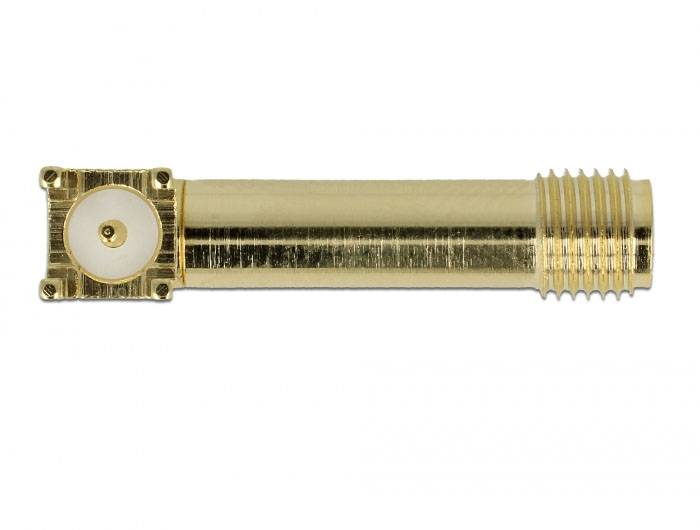

SMA Bush 90° PCB
- Connection type: SMA
- Connection 1: SMA
- 0 - 6000 MHz 50 ohm
- Housing material: Brass
- 1 pieces(s)
Technical specifications
- Connection 1: SMA
- Packaging type
Bag
- Product type
SMA connector
- Impedance
50 Ω
- Connection
SMA
- Content
1 pc(s)
- Max. frequency
6 GHz
- Case material
Brass gold plated
- Manufacturer part #
65845
- Insulation material
PTFE
- Contact material
Brass gold plated
- Length
25 mm
- Type
65845
- Seal type
None
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
12.2 mm
- Height
5.2 mm
- Width
25 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-55 - 165 °C
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Withstanding voltage
500 V
- Frequency range
0 - 6000 MHz
Documents & Downloads
Datasheet
Datasheet 3383647 Delock 65845 65845 SMA connector 50 Ω 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383647 Delock 65845 65845 SMA connector 50 Ω 1 pc(s) Bag
Description
This socket by Delock is suitable for soldering on PCBs. The gold coating prevents corrosion and provides an optimum connection.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA socket
- Pin: Gold-plated brass
- Insulation PTFE
- Housing: Gold-plated brass
- Frequency range: 0 - 6 GHz
- Impedance: 50 ohm
- VSWR: ≤1.5
- Thread type: 1/4″ - 36 US - 2A
- Thread length: 5.5 mm
- Operating temperature: -55 °C - 165 °C
- Voltage resistance 500V/50Hz
- Material: Gold-plated brass
- Solder mounting 5 solder points
- Raster: 2.54 mm
- Measured in (LxHxD) 28.0 x 12.2 x 5.2 mm
System requirements
- Suitable board for mounting the SMA connector
