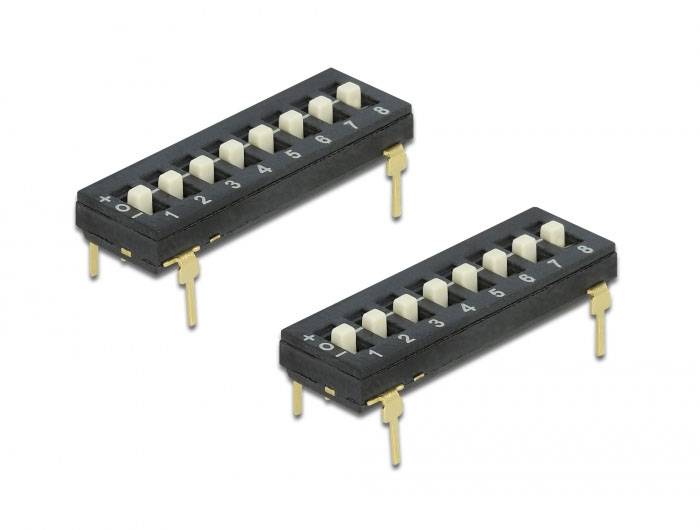

Delock 66306 66306 DIP switch Tri-state 1 pc(s) Bundle
EAN:
Part number:
Item no:
Packaging type
Bundle
Product type
DIP switch
Type
Tri-state
Type
66306
Content
1 pc(s)
Delock 66306 accessories for conducting boards DIP switch 2 piece(s)
Technical specifications
- DIP switch type
- Packaging type
Bundle
- Product type
DIP switch
- Type
Tri-state
- Type
66306
- Content
1 pc(s)
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Type A
Print
- Type B
Print
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
2 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383939 Delock 66306 66306 DIP switch Tri-state 1 pc(s) Bundle
Description
This DIP switch from Delock is suitable for solder mounting on a circuit board.
Tri-state switching
The tri-state switch is composed of 8 individual switches each with 3 switch positions (+, 0, -) per position. It allows more codes to be generated than a standard DIP switch with only 2 switch positions (on / off).
THT assembly technology

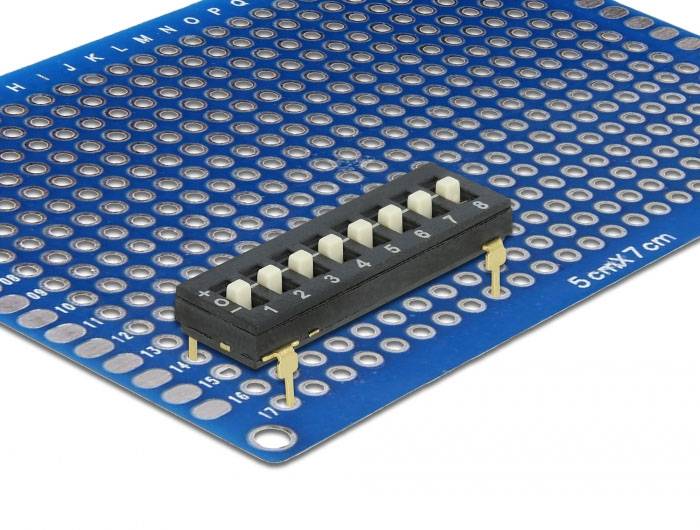

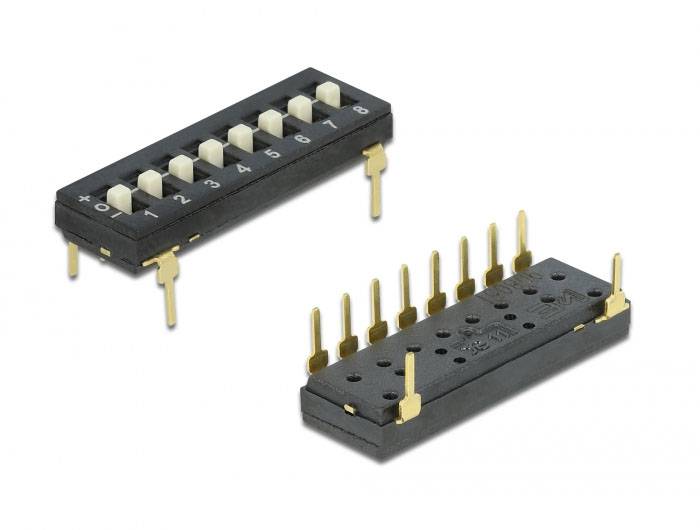

The attached solder pins on the DIP switch are placed in contact holes on the board and soldered to the bottom. The circuit series are used to set configurations as well as to change parameters.
Wide range of uses
The DIP switch is mainly used in telecommunications, computer and measurement applications.
This text is machine translated.
Tri-state switching
The tri-state switch is composed of 8 individual switches each with 3 switch positions (+, 0, -) per position. It allows more codes to be generated than a standard DIP switch with only 2 switch positions (on / off).
THT assembly technology
The attached solder pins on the DIP switch are placed in contact holes on the board and soldered to the bottom. The circuit series are used to set configurations as well as to change parameters.
Wide range of uses
The DIP switch is mainly used in telecommunications, computer and measurement applications.
This text is machine translated.
