Delock 66322 D-SUB connector - 1 pc(s) Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
D-SUB connector
Connector type
Adapter
Number of pins
9
Content
1 pc(s)
Datasheet (PDF)
Adapter D-Sub 9-pin socket for terminal block 9-pin with pushbutton
Highlights & Details
- -
Technical specifications
- Packaging type
Bag
- Product type
D-SUB connector
- Connector type
Adapter
- Number of pins
9
- Content
1 pc(s)
- Manufacturer part #
66322
- Type
66322
- Factory colour
Black
Green
Silver
Yellow
- Depth
36 mm
- Height
17 mm
- Width
31 mm
- Connection type
USB
- CS
2.54 mm
- No. of rows
2
- Connection angle
180°
- UKCA
yes
- Operating temperature (T-T)
-20 - 70 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383776 Delock 66322 D-SUB connector - 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383776 Delock 66322 D-SUB connector - 1 pc(s) Bag
Description

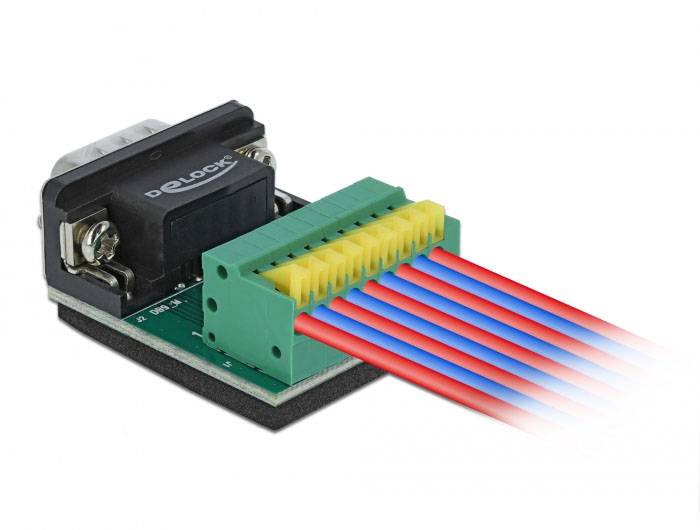

This terminal block adapter from Delock can be used to connect stranded wires with stripped ends. Thus, the adapter is not only suitable for special industrial applications but can also be used in hobby areas such as railway modeling.
This text is machine translated.
This text is machine translated.
Features

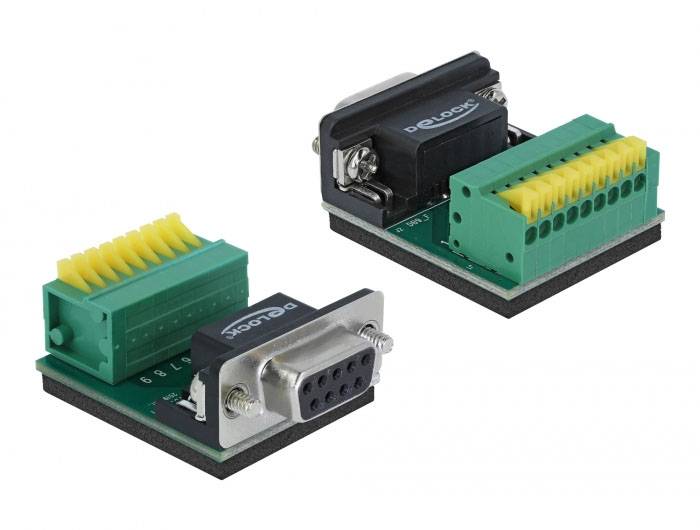

- Connections:
- 1 x serial D-Sub 9 socket with screws
- 1 x 9 pin terminal block with pushbutton
- Pin assignment: 1:1
- Lead wire spacing 2.54 mm
- Can be used for a wire cross-section from 26 to 20 AWG
- Operating temperature: -20 °C ~ 70 °C
- Dim. (LxWxH): Approx. 36 x 31 x 17 mm
System requirements
- A free D-Sub 9-pin plug
