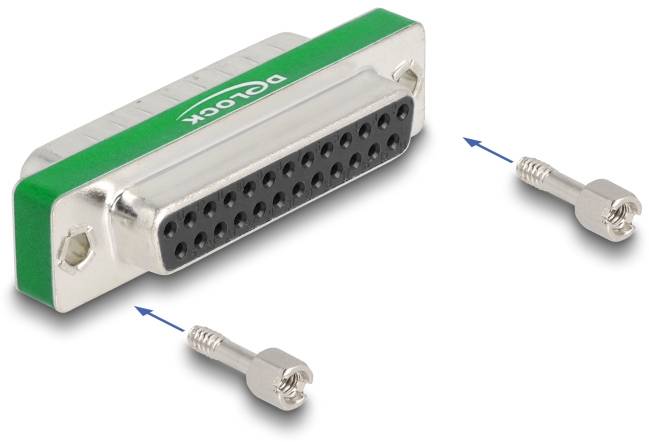

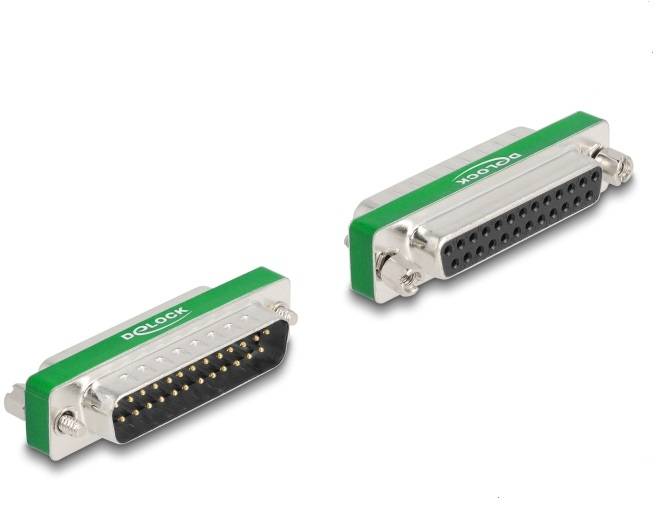

Delock 66479 D-SUB filter - 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
D-SUB filter
Connector type
straight
Number of pins
25
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
HF / EMI noise filter D-Sub 25-pin connector to socket with low pass capacitive
- -
Technical specifications
- Connection 1: D-Sub 25 pin
- Connection 2: D-Sub 25 pin
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Packaging type
Single
- Product type
D-SUB filter
- Connector type
straight
- Number of pins
25
- Content
1 pc(s)
- Manufacturer part #
66479
- Contact material
Brass
- Type
66479
- Cable design
Round
- Version
Cable
- Factory colour
Green
Silver
- Depth
53.4 mm
- Height
12.7 mm
- Width
17.9 mm
- Cable use
C13/C14 appliances
- Contact surface
Gold plated
- UKCA
yes
- Operating temperature (T-T)
-55 - 105 °C
- Relative humidity
0 - 95 %
- Voltage rating
50 V
Documents & Downloads
Datasheet
Datasheet 3383975 Delock 66479 D-SUB filter - 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3383975 Delock 66479 D-SUB filter - 1 pc(s) Single
Description
With integrated broadband filters, the HF/EMI noise filter in Delock's D-Sub adapter prevents interference and signal noise, for example, in serial RS-232/RS-485 and digital as well as analogue I/O interfaces. The adapter contains 15 low-pass broad band filters for HF/EMI shielding of the D-Sub interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x D-Sub 25-pin connector
- 1 x D-Sub 25 pin socket
- Pin assignment: 1:1
- Contact: gold-plated brass
- Screw type #4-40 UNC
- Housing material: Tin-plated steel
- Low-pass filter capacitance 25 x 1000 pF
- Nominal voltage 50 VDC
- Operating temperature: -55 °C ~ 105 °C
- Relative humidity: 0 - 95% (non-condensing)
- Dim. (LxWxH): Approx. 53.4 x 17.9 x 12.7 mm
System requirements
- A free D-Sub 25-pin interface
