Delock 66566 VGA Adapter [1x D-SUB plug 15-pin - 1x Socket] Black 0 mm
EAN:
Part number:
Item no:
Highlights & Details

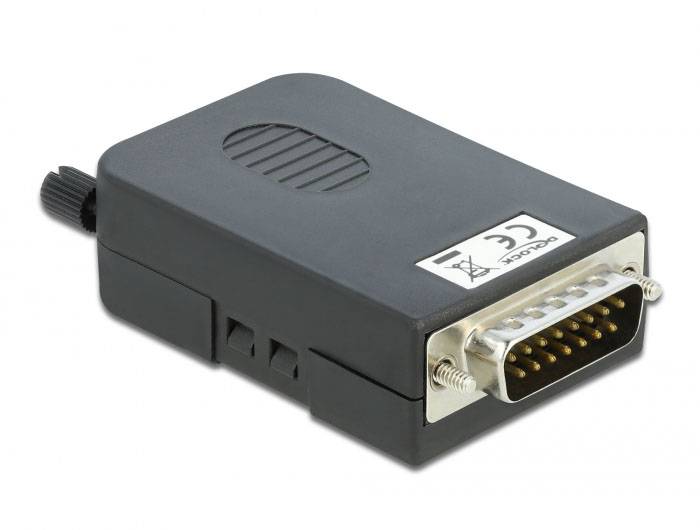

Delock 66566 VGA Adapter [1x D-SUB plug 15-pin - 1x Socket] Black 0 mm
- Serial sub-D15 female
- 16 pin terminal Block
- Housing material: Plastic
- Black
Technical specifications
- Connection 1: Serial Sub-D15
- Connection 2 16 pin terminal Block
- Product type
TV/monitor Adapter
- Connection type
VGA
- No. of A connectors
1 x
- Type A
D-SUB plug 15-pin
- No. of B connections
1 x
- Type B
Socket
- Cable length
0 mm
- Factory colour
Black
26/18
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Depth
78 mm
- Height
21 mm
- Width
42 mm
- Screen size diagonal (inches)
24 inch
- UKCA
yes
- Operating temperature (T-T)
-20 - 105 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383986 Delock 66566 VGA Adapter [1x D-SUB plug 15-pin - 1x Socket] Black 0 mm
Description

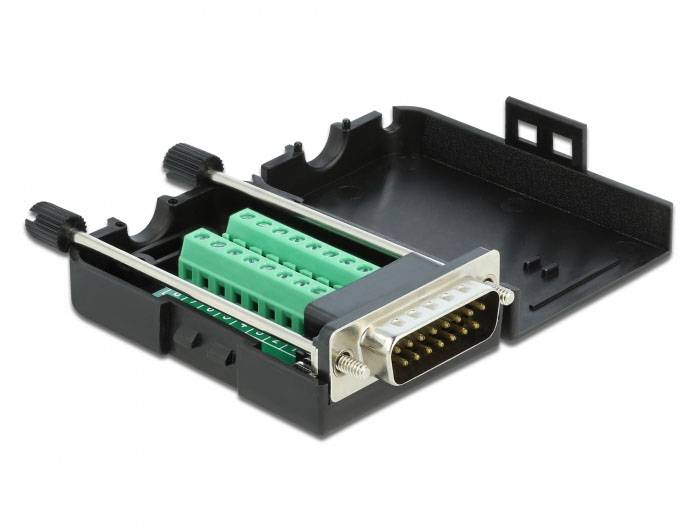

This terminal block adapter from Delock can be used to connect stranded wires with stripped ends. Thus, the adapter is not only suitable for special industrial applications but can also be used in hobby areas such as railway modeling.
Protection through housing

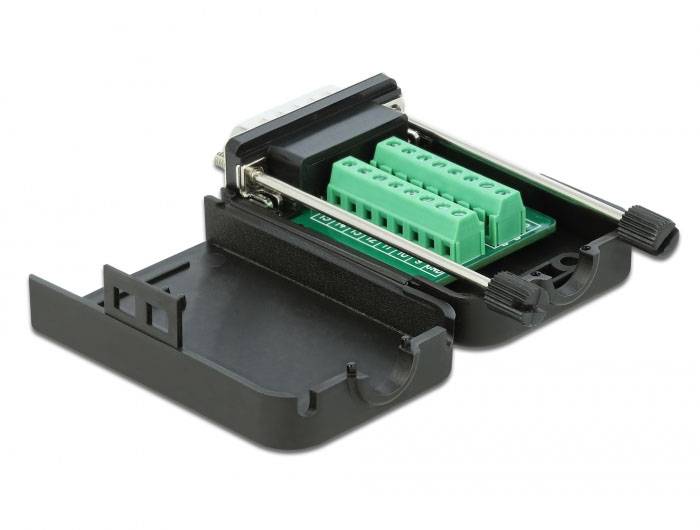

The plastic housing protects the circuit board against dirt and damage.
Strain relief

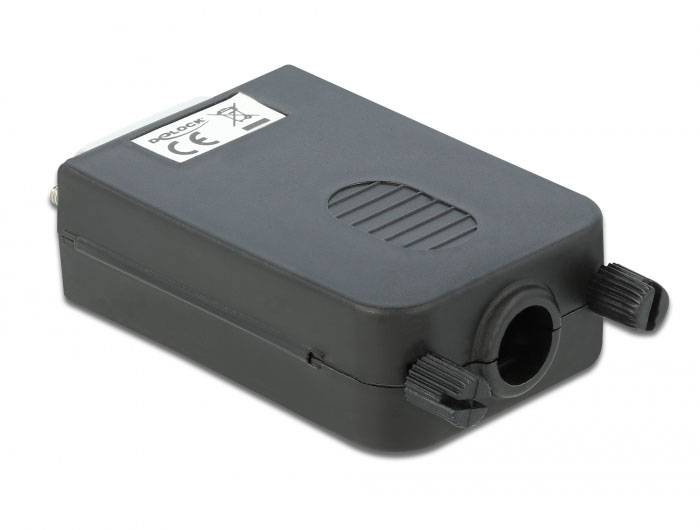

The screw-on strain relief holds the cable in the housing.
This text is machine translated.
Protection through housing
The plastic housing protects the circuit board against dirt and damage.
Strain relief
The screw-on strain relief holds the cable in the housing.
This text is machine translated.
