Delock 66597 D-SUB connector - 2 pc(s) Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
D-SUB connector
Connector type
Socket
Number of pins
25
Content
2 pc(s)
Datasheet (PDF)

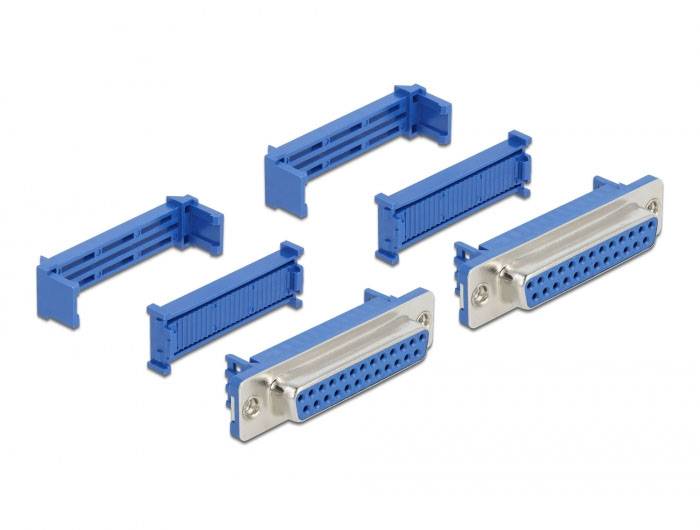

D-Sub 25 socket with insulation displacement connection, 2 pieces
Highlights & Details
- -
Technical specifications
- Packaging type
Bag
- Product type
D-SUB connector
- Connector type
Socket
- Number of pins
25
- Content
2 pc(s)
- Manufacturer part #
66597
- Type
66597
- Cable design
Round
- Version
Cable
- Factory colour
Blue
- Depth
17.5 mm
- Height
12.8 mm
- Width
53.1 mm
- Cable use
C13/C14 appliances
- CS
1.27 mm
- No. of rows
2
- Connection angle
180°
- UKCA
yes
- Operating temperature (T-T)
-40 - 105 °C
Documents & Downloads
Datasheet
Datasheet 3383991 Delock 66597 D-SUB connector - 2 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383991 Delock 66597 D-SUB connector - 2 pc(s) Bag
Description
This D-Sub 25 socket with insulation displacement terminal from Delock is suitable for the assembly of flat band cables with 25 pin and a pitch of 1.27 mm. These D-Sub ribbon cable connectors are widely used, for example, in industry, telecommunications and hobbies.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x D-Sub 25 socket (2 row) with nuts with cutting terminal
- 1 x press-in clip
- 1 x strain relief clip
- Suitable for flat cable with 1.27 mm pitch
- Operating temperature: -40 °C ~ 105 °C
- Colour : blue
- Dim. (LxWxH): Approx. 53.1 x 17.5 x 12.8 mm
System requirements
- A free D-Sub 25 connector and ribbon cable 25 pin with 1.27 mm pitch
