Delock 66633 2.0 Sound card, external
EAN:
Part number:
Item no:
Datasheet (PDF)
Sound Card
Highlights & Details
- USB 2.0 Type-A straight male
- 3.5 mm 3 pin, Female straight
- USB version 2.0
- Aluminium casing material
- Grey
- 1 pieces(s)
Technical specifications
- Connection 1 USB 2.0 Type A
- Connection 2: 3.5 mm 3 pin,
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Sound card, external
- Channels
2.0
- Interfaces (output)
Audio stereo (3.5 mm jack)
- Interfaces (input)
USB type A
- Content
1 pc(s)
- Weight
0.05
- Factory colour
Grey
- Width
20.1 mm
- Height
10 mm
- Length
45.6 mm
- Cable design
Round
- Cable length
0.004 m
- Version
Cable
- Type A
USB
- Type B
USB
- No. of A connectors
1 x
- No. of B connections
2 x
- Cable use
C13/C14 appliances
- Connector version
straight
- Connection type
USB 2.0
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3383778 Delock 66633 2.0 Sound card, external
User & Safety Instructions
User & Safety Instructions 3383778 Delock 66633 2.0 Sound card, external
Description

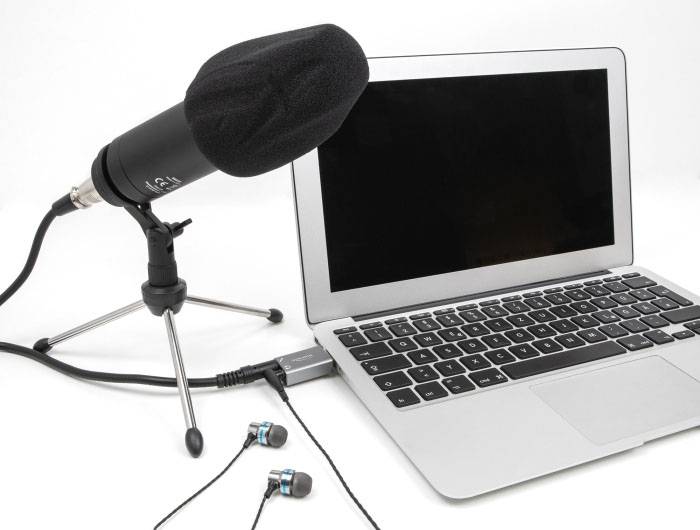

The sound adapter from Delock extends computer, notebook or tablet PC by an additional external sound card. The 3.5 mm stereo jack socket output offers a maximum sampling rate of 16 bit / 48 kHz, so that the favorite music can be played in DVD audio quality. A PC microphone can be attached to the 3.5-mm jack microphone input of this adapter and thus high-quality audio recordings can be made with a maximum sampling rate of 16 bit / 48 kHz. This makes the adapter Ideal for video chats, streaming and gaming.
Plug & Play
Thanks to USB plug & play, the adapter is immediately ready to use and no driver installation is required. The adapter works with all major operating systems such as Windows, Mac OS, Chrome OS, Linux and Android.
This text is machine translated.
Plug & Play
Thanks to USB plug & play, the adapter is immediately ready to use and no driver installation is required. The adapter works with all major operating systems such as Windows, Mac OS, Chrome OS, Linux and Android.
This text is machine translated.
Features
- Connections:

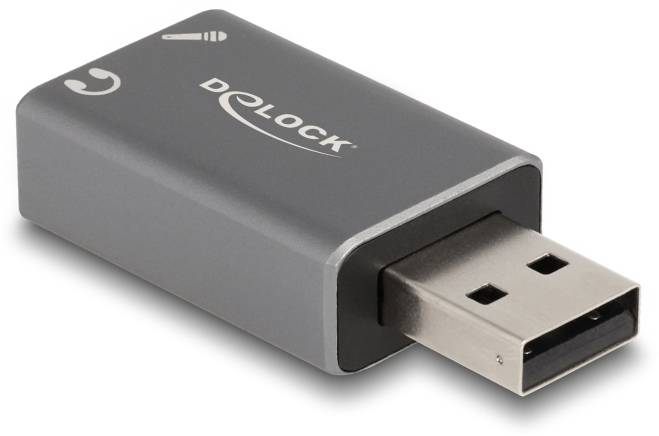

- 1 x USB 2.0 Type-A connector

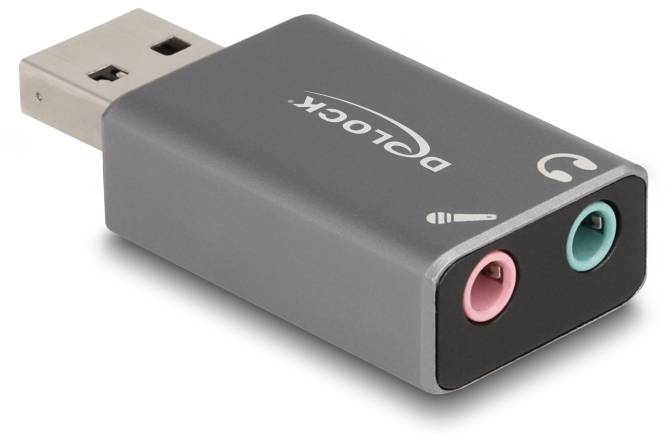

- 1 x speaker 3.5 mm 3 pin stereo jack socket
- 1 x microphone 3.5 mm 3 Pin mono jack socket
- Up to 16 bit / 48 kHz sampling rate for recording and playback
- Plug & Play
- Aluminium casing material
- Colour: grey
- Dim. (LxWxH): Approx. 45.6 x 20.1 x 10.0 mm
System requirements
- Android 11.0 or higher
Chrome OS 116.0 or higher
Linux Kernel 5.11 or later
Mac OS X 13.1 or higher
Windows 10/10-64/11
PlayStation 5
Surface Pro 9
PC or notebook with a free USB type A port
