Delock 67003 FO splice box Optical fiber 1 U
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
FO splice box
Optical fiber
Singlemode OS2
- Fibre type
9/125 µ
- Rack unit
1 U
- Factory colour
Black
- Length
482 mm
- Width
220 mm
- Height
44 mm
- Cable design
Round
- Version
Cable
- Depth
220 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Number of fibres supported (max)
12
Documents & Downloads
Datasheet
Datasheet 3379381 Delock 67003 FO splice box Optical fiber 1 U
User & Safety Instructions
User & Safety Instructions 3379381 Delock 67003 FO splice box Optical fiber 1 U

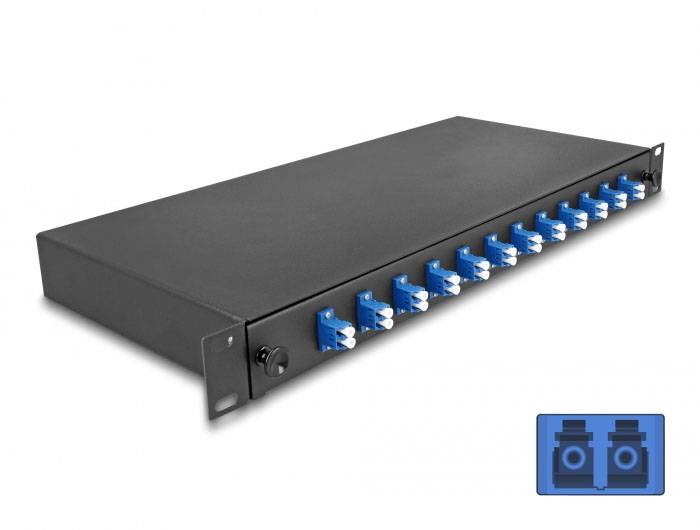

Description
This pre-fabricated fiber optic splice box from Delock can be installed in a 19″ device cabinet and is suitable for Ideal for the fast and safe construction of the fiber optic network in buildings.
Fully equipped.
The LWL box is equipped with 12 LC duplex couplers and with 24 pigtails, which are already inserted in the splice box.

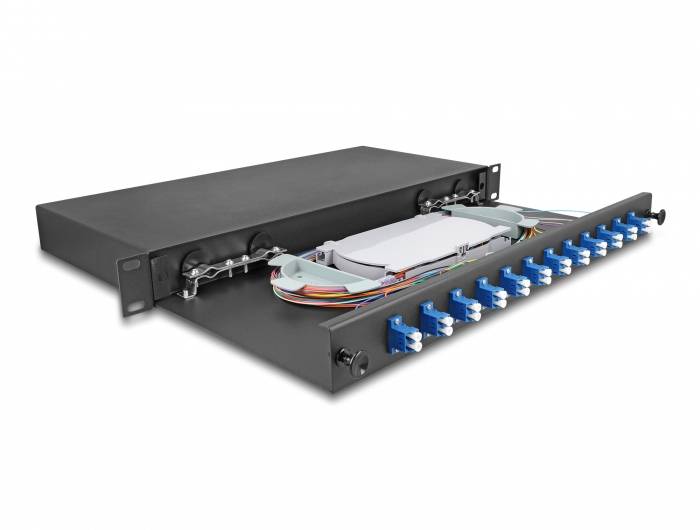

With drawer
The front panel is extendable, which allows you to work on both sides of the couplings without removing the cover.
This text is machine translated.
Fully equipped.
The LWL box is equipped with 12 LC duplex couplers and with 24 pigtails, which are already inserted in the splice box.
With drawer
The front panel is extendable, which allows you to work on both sides of the couplings without removing the cover.
This text is machine translated.
Features
- For mounting in 19″ cabinets, 1 HE
- SpliceBox with 12 x LC duplex couplings
- Pull-out drawer
- With splice box
- Fibre pigtails are colored in accordance with DIN (IEC 60304)
- OS2 Pigtails
- 9/125 µm fiber
- Cable sheath material LSOH
- Cable length approx. 1.5 m
- Black enclosure
- Case material: metal
- Dim. (LxWxH): Approx. 482 x 220 x 44 mm
