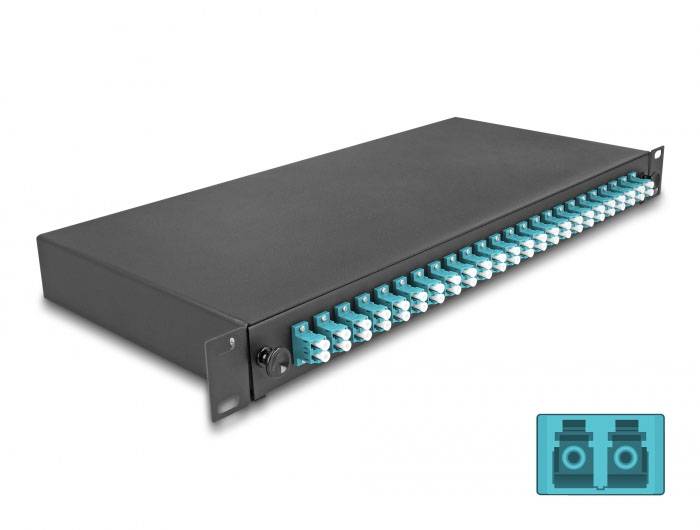

Delock 67010 FO splice box 1 U
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
FO splice box
Multimode OM3
- Fibre type
50/125 µ
- Rack unit
1 U
- Factory colour
Black
- Length
482 mm
- Width
220 mm
- Height
44 mm
- Depth
220 mm
- UKCA
yes
- Number of fibres supported (max)
24
Documents & Downloads
Datasheet
Datasheet 3379388 Delock 67010 FO splice box 1 U
User & Safety Instructions
User & Safety Instructions 3379388 Delock 67010 FO splice box 1 U
Description
This pre-fabricated fiber optic splice box from Delock can be installed in a 19″ device cabinet and is suitable for Ideal for the fast and safe construction of the fiber optic network in buildings.
Fully equipped.
The LWL box is equipped with 24 LC duplex couplers and with 48 pigtails, which are already inserted in the splice box.
With drawer
The front panel is extendable, which allows you to work on both sides of the couplings without removing the cover.
This text is machine translated.
Fully equipped.
The LWL box is equipped with 24 LC duplex couplers and with 48 pigtails, which are already inserted in the splice box.
With drawer
The front panel is extendable, which allows you to work on both sides of the couplings without removing the cover.
This text is machine translated.
Features
- For mounting in 19″ cabinets, 1 HE
- SpliceBox with 24 x LC duplex couplings
- Pull-out drawer
- With splice box
- Fibre pigtails are colored in accordance with DIN (IEC 60304)
- OM3 pigtail
- 50/125 µm fiber
- Cable sheath material LSOH
- Cable length approx. 1.5 m
- Black enclosure
- Case material: metal
- Dim. (LxWxH): Approx. 482 x 220 x 44 mm
