Delock 67154 DisplayPort module Keystone Cable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

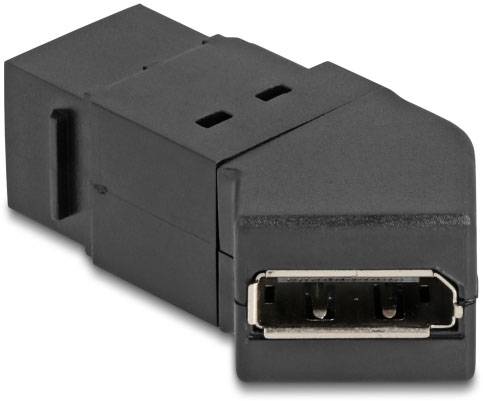

Keystone module mini DisplayPort socket to DisplayPort socket 45° angled 8K 30 Hz black
- Mini DisplayPort Straight Female
- DisplayPort Female
- Coating plug contacts: Gold
- 7680 x 4320 pixels
- Housing material: Acrylonitrile-butadiene-styrene (ABS), polycarbonate (PC)
- Black
- 1 pieces(s)
Technical specifications
- Connection 1: Mini DisplayPort
- Connection1 Form factor: Straight
- Connection 2 Form factor: Angled
- Compatible with
Keystone
- Product type
DisplayPort module
Cable
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
49 mm
- Height
25 mm
- Width
40 mm
- Display resolution
7680 x 4320 Pixel
- Frame rate
30 Hz
- Cable use
C13/C14 appliances
- Connections
RJ45 connector
- Connection type
DisplayPort
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384070 Delock 67154 DisplayPort module Keystone Cable 1 pc(s)
Description
This module from Delock can be used, for example, to extend a DisplayPort cable.
With bracket for installation
The adapter can be installed in a panel, in a housing or switching cabinet.
With angled connection
The angled connection enables a place-saving laying in narrow and difficult to access places in devices or in cable channels.
This text is machine translated.
With bracket for installation
The adapter can be installed in a panel, in a housing or switching cabinet.
With angled connection
The angled connection enables a place-saving laying in narrow and difficult to access places in devices or in cable channels.
This text is machine translated.

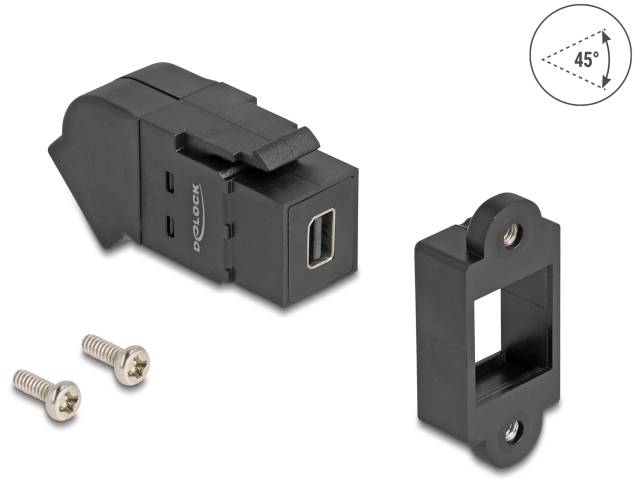

Features
- Connections:
- 1 x mini DisplayPort socket for installation
- 1 x DisplayPort socket angled at 45°
- Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected one
- Hardware)
- Gold-plated contacts
- With holder for panel mounting
- Holder (W x H): Approx. 40 x 18 mm
- Mounting hole diameter: Approx. 2.2 mm
- Hole spacing: Approx. 30 mm
- Screw connection #4-40 UNC
- Material: PC & ABS
- Colour, black
- Dim. (LxWxH): Approx. 49 x 40 x 25 mm
