Delock 81313 81313 Expansion module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Expansion module
- Interfaces
USB type A
- Cable design
Round
- Version
Cable
- Factory colour
White
- Depth
45 mm
- Height
38 mm
- Width
45 mm
- Cable use
C13/C14 appliances
- Connections
USB-A socket
- Connection type
USB 2.0
- UKCA
yes
- Sockets quantity
2
- Rated voltage
100 - 240 V
- Rated frequency
50/60 Hz
- USB output current
2.1 A
- USB output voltage
5 V
- Rated current
0.2 A
- Number of products included
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381715 Delock 81313 81313 Expansion module
User & Safety Instructions
User & Safety Instructions 3381715 Delock 81313 81313 Expansion module
Description

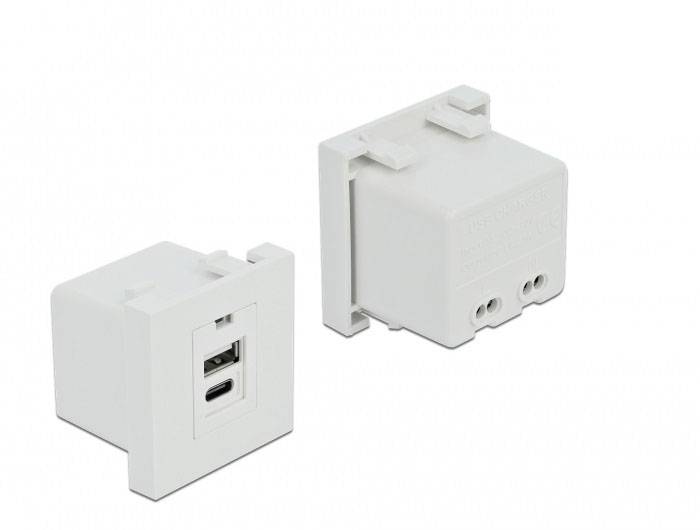

This Delock Easy 45 USB charging port module features a USB Type A and USB Type-C™ charging port. The simple latching mechanism ensures the module sits firmly in its place and can be easily removed if required.
Easy 45 connections
Easy 45 is a variable, modular system that allows you to assemble components such as sockets, HDMI or USB ports to meet your needs. The Easy 45 modules are standardized and can be mounted in various module carriers or cable ducts. Easy 45 provides the interface between electrical, network and system installation and many peripherals, such as TVs, monitors, printers, notebooks and much more.
This text is machine translated.
Easy 45 connections
Easy 45 is a variable, modular system that allows you to assemble components such as sockets, HDMI or USB ports to meet your needs. The Easy 45 modules are standardized and can be mounted in various module carriers or cable ducts. Easy 45 provides the interface between electrical, network and system installation and many peripherals, such as TVs, monitors, printers, notebooks and much more.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-A socket
- 1 x USB Type-C™ socket
- 1 x 2 Pin terminal block N, L
- Input AC 100 ~ 240 V/50 ~ 60 Hz/0.2 A
- USB output: Max. 5.0 V / 2.1 A total
- Output power: Max. 10.5 W total
- Average operational efficiency 81.40%
- Efficiency at low load (10 %) 73.50 %
- Power consumption at zero load 0.166 W.
- Short-circuit protection
- LED display for Power
- Material: PC plastic
- Suitable for module carrier Delock Easy 45
- Suitable for 45 mm dado trunking with a minimum mounting depth of 45 mm
- Module size 45 x 45 mm
- Dim. (LxWxH): Approx. 45 x 45 x 38 mm
- Colour: white
System requirements
- A free module slot Delock Easy 45
