Delock 81346 81346 Expansion module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Easy 45 module VGA socket to terminal block 22.5 x 45 mm
- Flat-nosed
- VGA (D-Sub) Female
- Terminals
- White
- 1 pieces(s)
Technical specifications
- Connection 1: VGA (D-Sub)
- Connection 2: Terminal
- Product type
Expansion module
- Interfaces
VGA
- Cable design
Round
- Version
Cable
- Factory colour
White
- Depth
22.5 mm
- Height
43 mm
- Width
45 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381732 Delock 81346 81346 Expansion module
User & Safety Instructions
User & Safety Instructions 3381732 Delock 81346 81346 Expansion module
Description

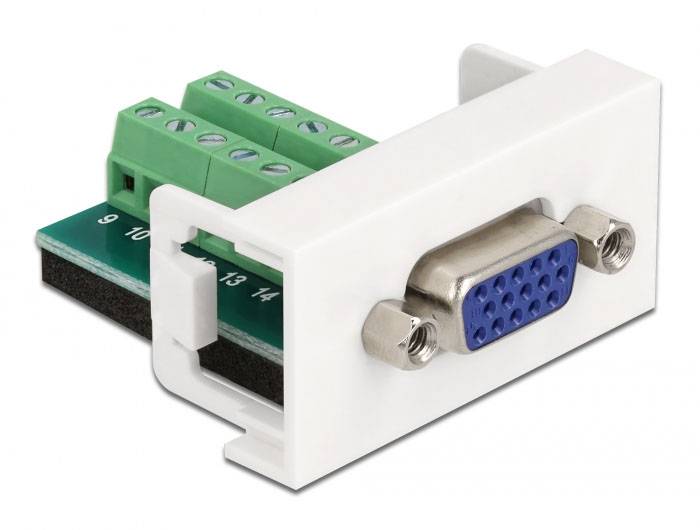

This Delock Easy 45 module provides a VGA socket. The simple latching mechanism ensures the module sits firmly in its place and can be easily removed if required.
Easy 45 connections
Easy 45 is a variable, modular system that allows you to assemble components such as sockets, HDMI or USB ports to meet your needs. The Easy 45 modules are standardized and can be mounted in various module carriers or cable ducts. Easy 45 is the interface between electrical, network and system installation and numerous peripheral devices, such as TV, monitors, printers, notebooks and many more.
This text is machine translated.
Easy 45 connections
Easy 45 is a variable, modular system that allows you to assemble components such as sockets, HDMI or USB ports to meet your needs. The Easy 45 modules are standardized and can be mounted in various module carriers or cable ducts. Easy 45 is the interface between electrical, network and system installation and numerous peripheral devices, such as TV, monitors, printers, notebooks and many more.
This text is machine translated.
Features
- Connections:
- External 1 x VGA jack

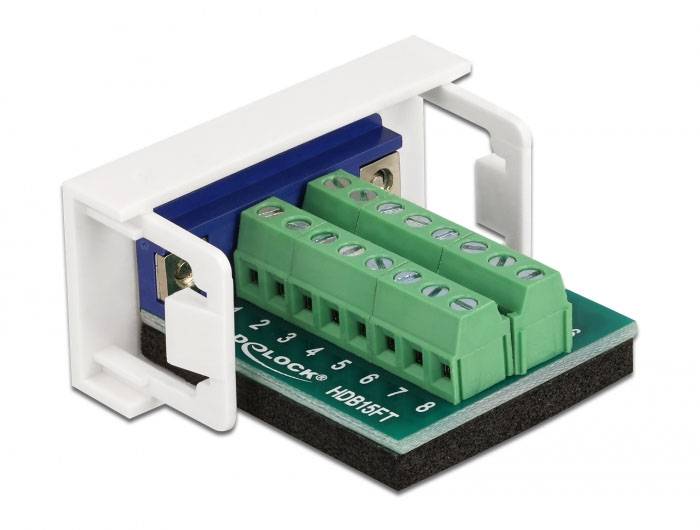

- Internal 1 x 16-pin terminal block screw terminal
- Material: PC plastic
- Suitable for module carrier Delock Easy 45
- Suitable for 45 mm dado trunking with a minimum mounting depth of 45 mm
- Module size 22.5 x 45 mm
- Dim. (LxWxH): Approx. 22.5 x 45.0 x 43.0 mm
- Colour: white
System requirements
- A free module slot Delock Easy 45
