Delock 81388 81388 Expansion module 10 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Easy 45 module SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-A socket to USB Type-C connector with breakout cable, 22.5 x 45 mm
- 1 m).
- USB C Straight Male
- USB A Straight Female
- USB 3.2 2 1st Gen (3.1 Gen) 2 10000 Mbit/s
- Black, White
- 1 pieces(s)
Technical specifications
- Connection 1 USB C
- Connection 2 USB A
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product color: Black, white
- Product type
Expansion module
- Transfer rate
10 GBit/s
- Interfaces
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2nd gen)
- LAN transfer rate
10000 MBit/s
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Maximum data transfer rate
10000 Mbit/s
- Quantity per pack
1 Stück(e)
- Output current (max)
3 A
- Maximum data transfer rate
10 Gbit/s
- Connector 1 dimensions (WxDxH)
22,5 x 45 x 38,5 mm
- Connector 2 dimensions (WxDxH)
22,5 x 45 x 38,5 mm
- Cable diameter
4.5 mm
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3382144 Delock 81388 81388 Expansion module 10 GBit/s
User & Safety Instructions
User & Safety Instructions 3382144 Delock 81388 81388 Expansion module 10 GBit/s
Description

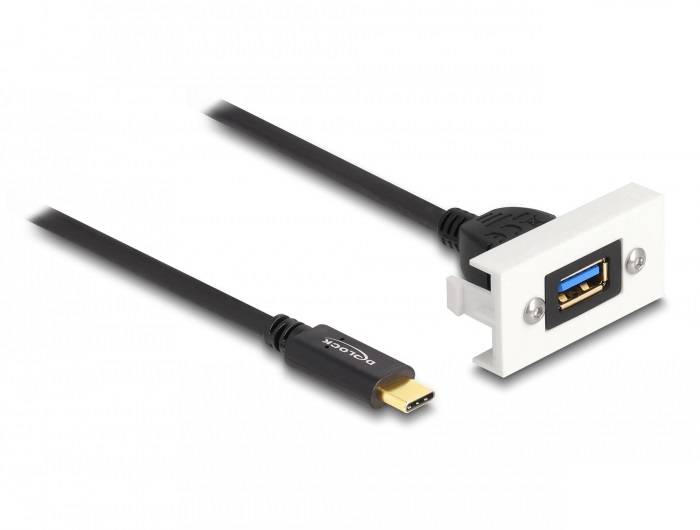

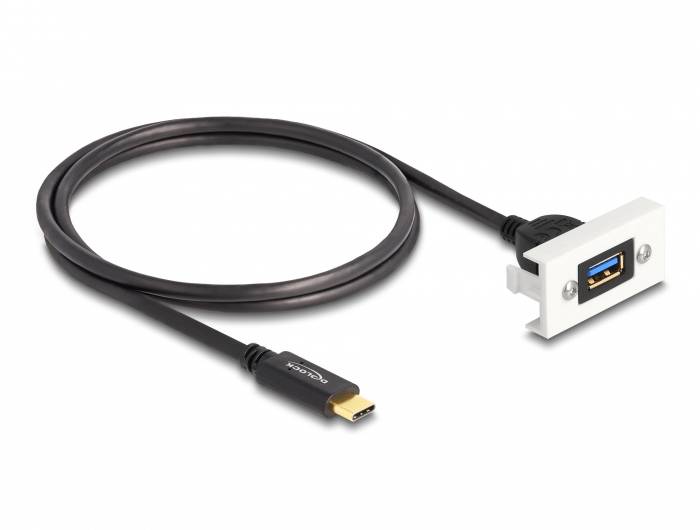

This Delock Easy 45 module provides a USB type A socket. The panel is firmly seated in its place by the simple snap mechanism and can be replaced easily and without tools if necessary. Easy 45 is a variable, modular system that allows you to assemble components such as sockets, HDMI or USB ports to meet your needs. The Easy 45 modules are standardized and can be mounted in various module carriers or cable ducts. Easy 45 is the interface between electrical, network and system installation and numerous peripheral devices, such as TV, monitors, printers, notebooks and many more.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB 10 Gbps (USB 3.2 1st Gen 2) USB Type-C™ connector
- 1 x SuperSpeed USB 10 Gbps (USB 3.2 1st Gen 2) Type A socket
- Host = USB Type-C™; Device = USB Type A
- Wire section:
- 30 AWG Data cable
- 22 AWG power line
- Output current: Up to 3 A.
- Cable diameter: Approx. 4.5 mm
- Data transfer rate up to SuperSpeed USB 10 Gbps
- Length including connections: Approx. 1 m.
- Material: PC plastic
- Suitable for module carrier Delock Easy 45
- Suitable for 45 mm dado trunking with a minimum mounting depth of 45 mm
- Module size 22.5 x 45 mm
- Dim. (LxWxH): Approx. 22.5 x 45.0 x 38.5 mm
- Colour: white
System requirements
- A free module slot Delock Easy 45
