Delock 85931 FO socket Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Fibre optic distributor box for DIN rail 8-port gray
Technical specifications
- Product type: Piggyback connector
- Product type
FO socket
- Material
Metal
- Factory colour
Grey
- Width
126 mm
- Height
35 mm
- Depth
137 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3380430 Delock 85931 FO socket Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3380430 Delock 85931 FO socket Grey 1 pc(s)
Description

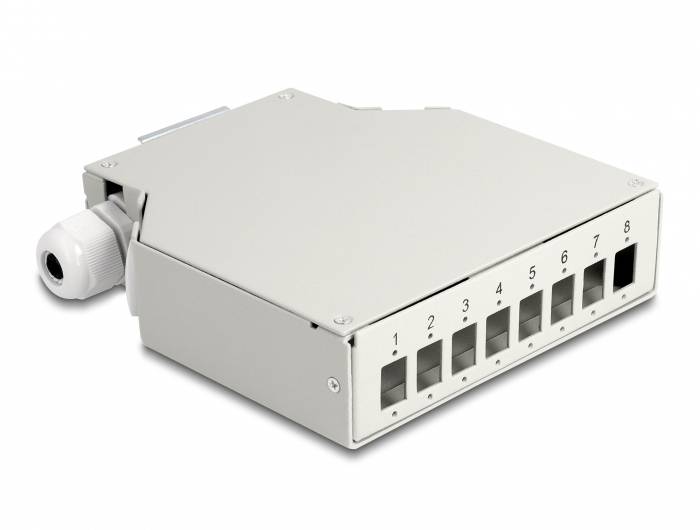

This LWL distribution box from Delock is suitable for assembly on a 35 mm broad top-hat rail and can accommodate up to 8 LWL-couplings of the types SC Simplex or LC duplex.
PG cable glands for fiber optic cables

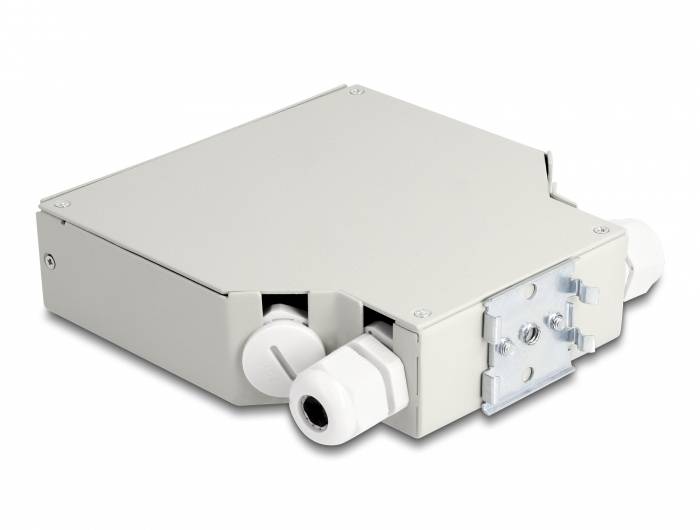

The fiber optic cable can be fed via two watertight PG11 cable glands each.
With splice box

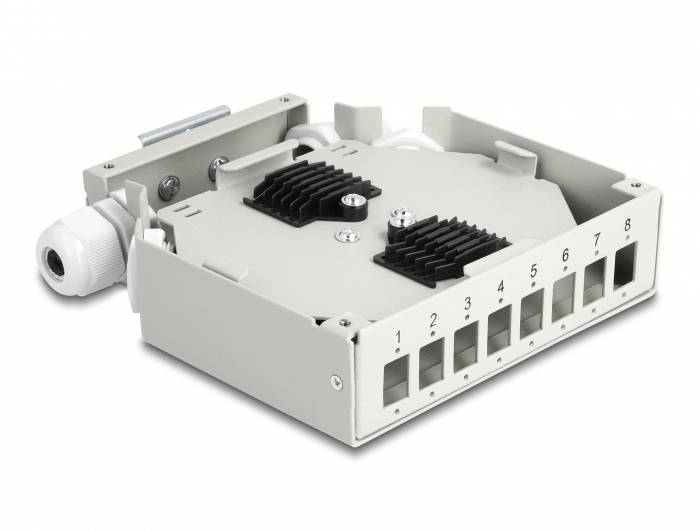

The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
This text is machine translated.
PG cable glands for fiber optic cables
The fiber optic cable can be fed via two watertight PG11 cable glands each.
With splice box
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
This text is machine translated.
Features
- 8 slots for SC Simplex or LC duplex couplings

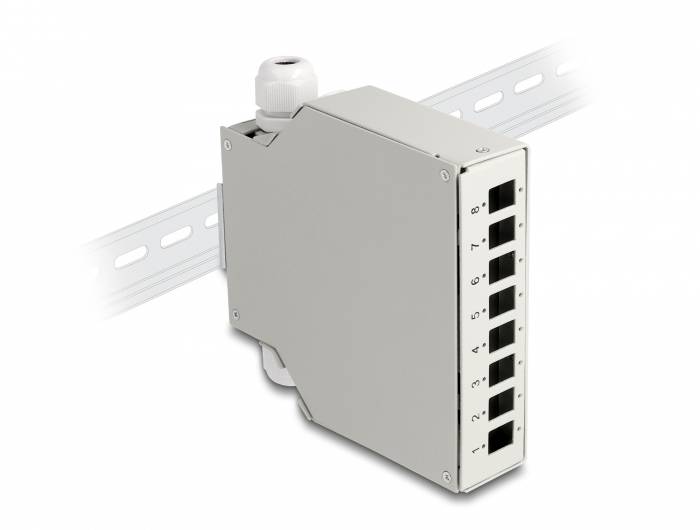

- DIN rail mounting 35 mm
- Rectangular cut-out 13.0 x 9.6 mm
- Mounting hole diameter: Approx. 1.6 mm
- Hole spacing: Approx. 18 mm
- With splice box
- PG11 cable glands and sealing plugs
- Ambient temperature: -40 °C - 85 °C
- Housing color: Grey
- Case material: metal
- Dim. (LxWxH): Approx. 137 x 126 x 35 mm
