Delock 86169 Network outlet Surface-mount, Assembly Insert with main panel and frame CAT 6 1 port White
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
4% = € 0.25
€ 5.62
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Only 10 Piece(s) available

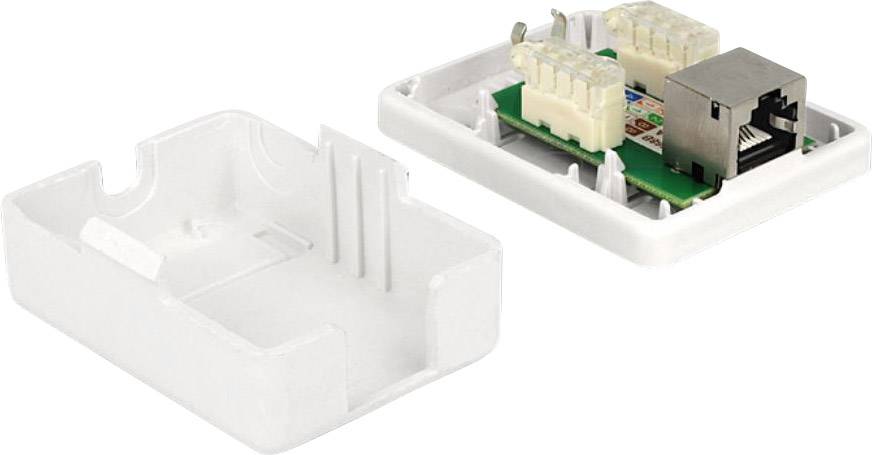

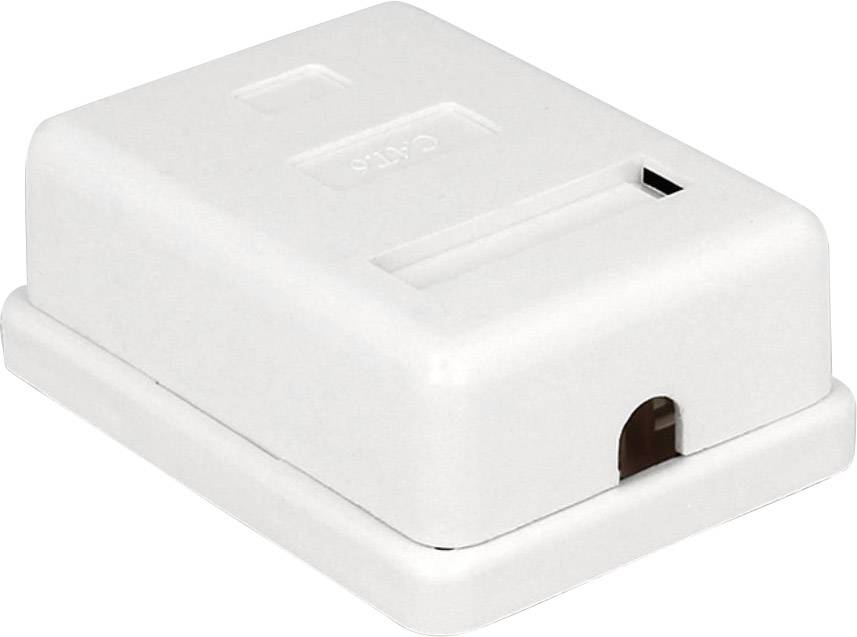

Delock network socket 1 port cat.6
Highlights & Details
- Connections: external: RJ45 socket/internal: LSA strip (no tools needed)
- Cable leading 180°
- Shielded (Cat 6)
Technical specifications
- Product type
Network outlet
- Mounting type
Surface-mount
Assembly
- Type
Insert with main panel and frame
CAT 6
- No. of LAN ports
1 x
- Recess depth
25 mm
- Factory colour
White
- Cable feed
bottom
- Switch type function
Network junction box
- Switch type component
Insert
- Length
66 mm
- Width
50 mm
- Port
1 port
- Weight
0.10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1298146 Delock 86169 Network outlet Surface-mount, Assembly Insert with main panel and frame CAT 6 1 port White
User & Safety Instructions
User & Safety Instructions 1298146 Delock 86169 Network outlet Surface-mount, Assembly Insert with main panel and frame CAT 6 1 port White
Description
This junction box by Delock can be used as a network socket on the wall or in housings. The LSA-strips can be used with a punch-down; alternatively, is also a tool-free connection of the network cable is possible.
This text is machine translated.
This text is machine translated.
Features
- Assignment according to TIA-568 A/B
- For cable diameters up to 0,644 mm (22 - 26 AWG)
- Built-in label field
Scope of delivery
- Connection box
- Adhesive pad, 45 x 25 mm
- 2 screws
- This text is machine translated.
