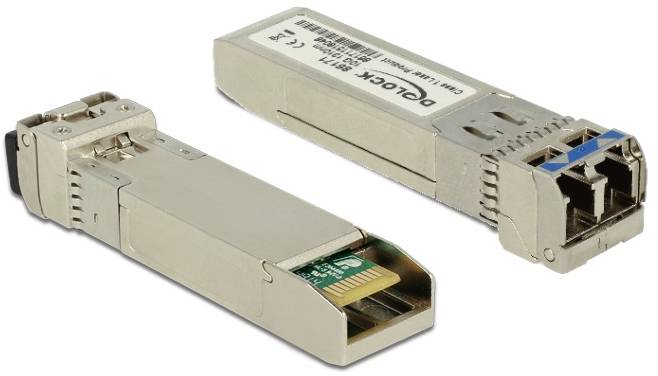

Delock 86171 86171 SFP+ transceiver module 10 GBit/s Module type LR
EAN:
Part number:
Item no:
SFP+ module 10GBase-LR SM 1310 nm
Technical specifications
- Product type
SFP+ transceiver module
- Transfer rate
10 GBit/s
- Interfaces
SFP+
LC
- Module type
LR
- LAN transfer rate
10 MBit/s
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Height
50 mm
- Length
250 cm
- Width
150 mm
- Cable use
C13/C14 appliances
- Weight
0
- UKCA
yes
- Operating temperature (T-T)
0 - 70 °C
- Maximum data transfer rate
10000 Mbit/s
- Quantity per pack
1 Stück(e)
- Wavelength
1310 nm
- Single-mode fiber (SMF) supported
yes
- Maximum transfer distance
10000 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381079 Delock 86171 86171 SFP+ transceiver module 10 GBit/s Module type LR
Description
This SFP+ module from Delock can be used to extend a 10 gigabit switch with a free SFP+ port to include a fiber-optic connection.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x SFP+ connector
- 1 x LC duplex bushing
- Data transfer rates:
- 10 Gigabit Ethernet up to 10 Gbps
- For single-mode fiber
- 9/125 µm fiber
- 1310 nm wavelength
- up to 10 km
- Digital Diagnostic Monitoring Interface (DDM)
- Operating temperature: 0 °C ~ 70 °C
- Power consumption: max. 1 W
System requirements
- Device with a free 10G SFP+ port
