Buy Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz

Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz-0

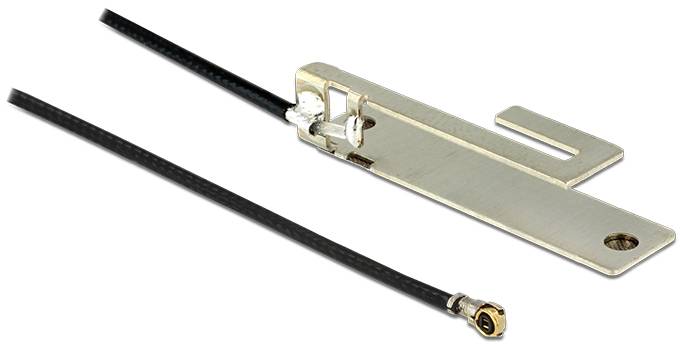

Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz-1

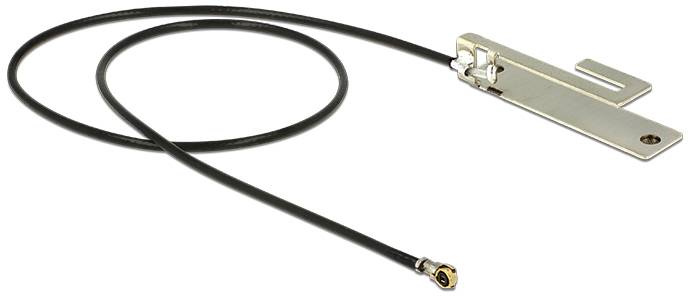

Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz-2

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Delock WLAN MHF IV/HSC MXHP32 network antenna F-type 3 dBi

F-type black
3 dBi
2.4 ~ 2.5 GHz
50 Ohm

Technical specifications

2.4 - 2.5 GHz
Impedance: 50 ohm
Cable type: Coaxial

Product type: Wi-Fi antenna

Gain: 3 dBi

Type: Flat antenna

Wi-Fi frequency band: 2.4 GHz

Antenna socket: IPEX plug

Weight: 0.02

No. of ports: 1

Width: 6 mm

Height: 5 mm

Cable design: Round

Cable length: 0.25 m

Version: Cable

Factory colour: Black

Depth: 25 mm

Cable use: C13/C14 appliances

UKCA: yes

Operating temperature (T-T): -10 - 55 °C

Documents & Downloads

Datasheet

Datasheet 3380871 Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz

User & Safety Instructions

User & Safety Instructions 3380871 Delock 86183 86183 Wi-Fi antenna 3 dBi 2.4 GHz

Description

This Delock WLAN antenna can be integrated in devices with MHF IV/ HSC MXHP32 compatible connector.

- Connection: Miniature HF coaxial connector MHF IV/ HSC MXHP32 compatible
- PIFA: Planar Inverted F-Shaped Antenna
- Frequency range:
2.400 - 2.500 GHz
- Antenna gain:
3.0 dBi maximum
-5.0 dBi average
Impedance: 50 ohm
- VSWR: 2.0
Operating temperature: -10 °C ~ 55 °C
- Dimensions (LxWxH): Approx. 25.0 x 6.0 x 5.0 mm
- Type of cable: Coaxial
- Cable color: Black
- Cable attenuation: 2.5 dB @ 2400 MHz per meter
- Cable diameter: Approx. 1.13 mm
- Cable length incl. connections: Approx. 250 mm

This text is machine translated.
