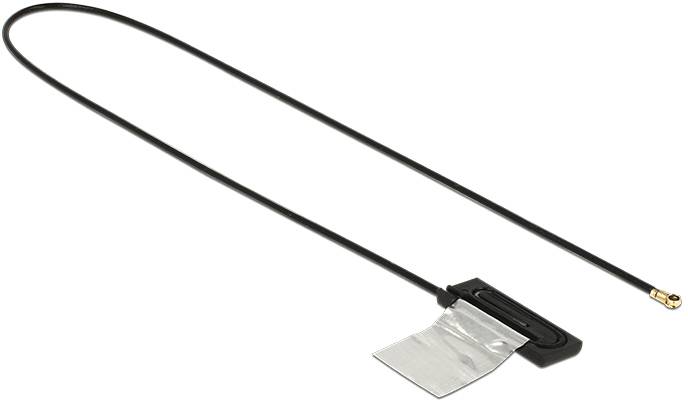

Delock 86286 86286 Wi-Fi antenna 1 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 86286 network antenna MHF 1 dBi
Highlights & Details
- MHF black
- 1 dBi
- 2.4 - 2.4835 / 5.15 - 5,875 GHz
- 50 Ohm
- Male
Technical specifications
- Frequency range 2.4 - 2.4835 / 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
1 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
20 mm
- Height
1.9 mm
- Length
25 cm
- Cable design
Round
- Cable length
0.25 m
- Version
Cable
- Factory colour
Black
- Depth
7 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381006 Delock 86286 86286 Wi-Fi antenna 1 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381006 Delock 86286 86286 Wi-Fi antenna 1 dBi 2.4 GHz
Description
This WLAN antenna from Delock is used for integration in devices with MHF IV /HSC MXHP 32 compatible connection.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® 4L plug
- WLAN standard: WiFi 6, IEEE 802.11 ax/ac/a/h/b/g/n
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 1 dBi
- VSWR 2.5
- Impedance: 50 ohm
- Operating temperature: -10 °C ~ 55 °C
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 20.00 x 7.00 x 1.90 mm
- Length including connections (L): Approx. 25 cm
System requirements
- Device with a free I-PEX Inc., MHF® 4L connection
