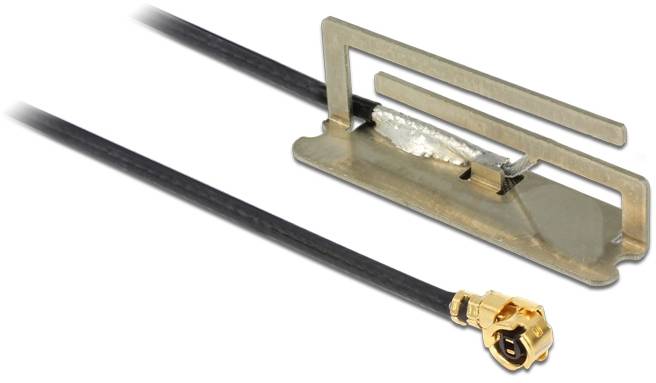

Delock 86388 86388 Wi-Fi antenna 1.6 dBi 2.4 GHz
EAN:
Part number:
Item no:
Delock 86388 Network-Antenna F-Type 1.6 dBi
Highlights & Details
- F-type
- 1.6 dBi
- 5.8 GHz
- 50 Ohm
Technical specifications
- Frequency band: 5.8 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
1.6 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
60 mm
- Height
70 mm
- Length
23 cm
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Depth
215 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381234 Delock 86388 86388 Wi-Fi antenna 1.6 dBi 2.4 GHz
Description
Quick guide
This dual band WLAN antenna from Delock can be integrated into devices with MHF/ U.FL-LP-068 802.11 compatible connector.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range:
- 2400 MHz - 2500 MHz
- 5150 MHz - 5875 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 1.6 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Operating temperature: -10 °C ~ 55 °C
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 21.5 x 7.0 x 6.0 mm
- Length including connections (L): Approx. 23 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
