Delock 86704 86704 Expansion module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

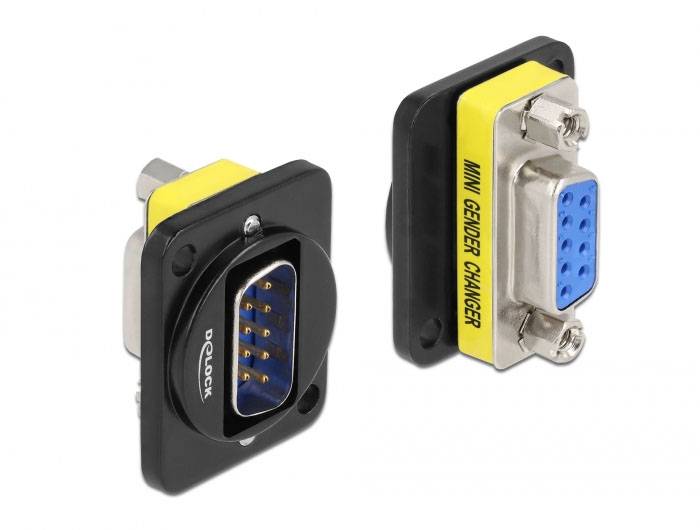

D-Type module DB9 connector to DB9 socket
- Flat-nosed
- VGA (D-Sub) Male
- VGA (D-Sub) Female
- Black
- 1 pieces(s)
Technical specifications
- Connection 1: VGA (D-Sub)
- Connection 2: VGA (D-Sub)
- Product type
Expansion module
- Interfaces
Serial (9-pin)
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
31 mm
- Height
18 mm
- Width
25 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382004 Delock 86704 86704 Expansion module
User & Safety Instructions
User & Safety Instructions 3382004 Delock 86704 86704 Expansion module
Description

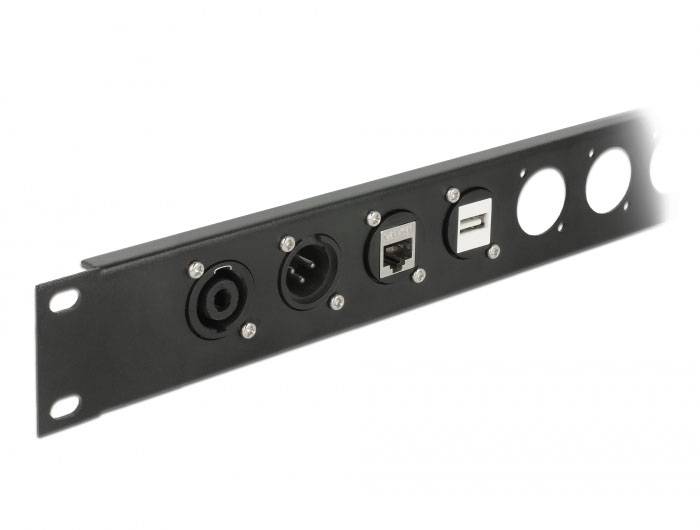

This module of Delock can be used for installation in panels or housings with D-type recesses for XLR sockets. This makes it suitable Ideal for the integration of digital equipment in professional audio systems.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- External 1 x serial DB9 connector
- Internal 1 x serial DB9 female with nuts
- Made of zinc die-cast
- Colour, black
- For installation in D-type ports of 31 x 25 mm
- Housing cut-out (W x H): Approx. 20 x 11 mm
- Two holes for screw mounting
- Dim. (LxWxH): Approx. 31 x 25 x 18 mm
