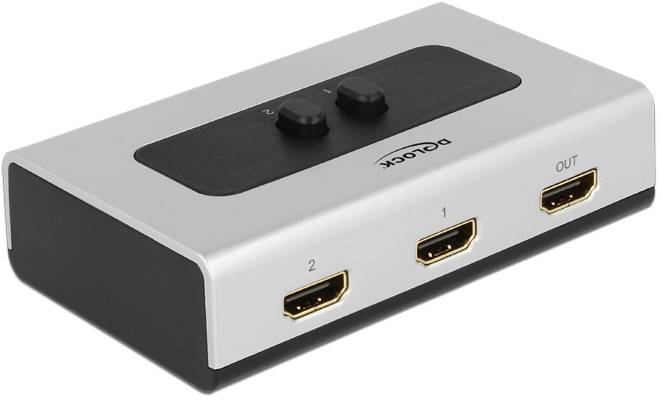

Delock 87663 HDMI switch 3840 x 2160 p
EAN:
Part number:
Item no:
Manually two-way switch 4K HDMI 2 port
Technical specifications
- Product type
HDMI switch
- Supported monitors
2
- Resolution (max.)
3840 x 2160 p
- Factory colour
Black
Grey
- Width
112 mm
- Height
29 mm
- Depth
112 mm
- Weight
152 g
- Cable design
Round
- Version
Cable
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- Material
Plastic
- UKCA
yes
- Manual
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380593 Delock 87663 HDMI switch 3840 x 2160 p
Description
This HDMI converter from Delock is a manual bi-directional switch for connecting different devices with HDMI connection, which offers two different possible applications.
1. Two computers with HDMI connection can be connected to a monitor, TV or projector, etc. with HDMI input. The device, which should transmit the signal on the screen, can be selected by pressing a button.
2. A computer with HDMI connections can be connected to two screens and can be selected on which screen the signal is to be displayed by pressing a button. (It is not possible to output simultaneously to multiple monitors)
This text is machine translated.
1. Two computers with HDMI connection can be connected to a monitor, TV or projector, etc. with HDMI input. The device, which should transmit the signal on the screen, can be selected by pressing a button.
2. A computer with HDMI connections can be connected to two screens and can be selected on which screen the signal is to be displayed by pressing a button. (It is not possible to output simultaneously to multiple monitors)
This text is machine translated.
Features
- Connections:
- Function 1
- Input 2 x HDMI socket
- Output 1 x HDMI socket
- Function 2
- Input 1 x HDMI socket
- Output 2 x HDMI socket
- 2 mechanical buttons
- Resolution up to 3840 x 2160 @ 60 Hz
- (Depending on the system and the connected hardware)
- Supports audio and video signals
- Plastic housing
- Do not Require external current supply
- Dimensions (LxWxH): Approx. 112 x 68 x 29 mm (without buttons)
- Colour: Grey / black
System requirements
- PC or Notebook with a free HDMI port.
HDMI connection cable
