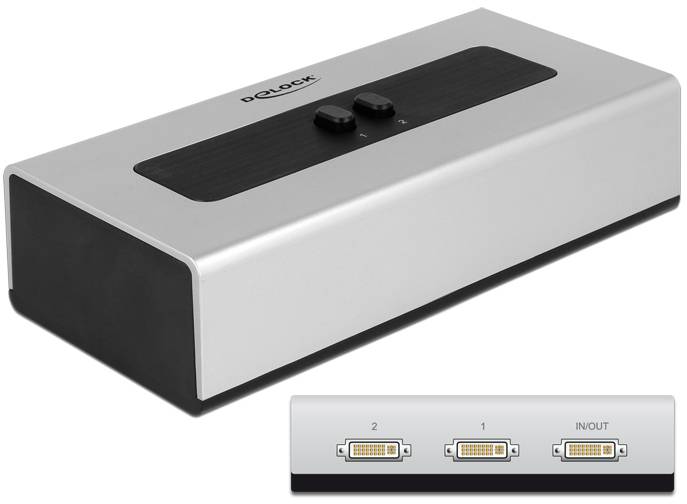

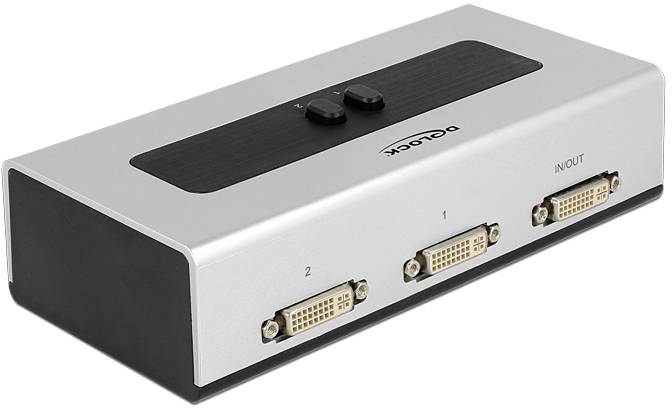

Delock 87664 DVI switch 1920 x 1200 p
EAN:
Part number:
Item no:
Delock changeover switch DVI 2 port manually bi-directional
Highlights & Details
- DVI video port type
- 1920 x 1200 pixels
- Black/Grey
Technical specifications
- Product type
DVI switch
- Supported monitors
2
- Resolution (max.)
1920 x 1200 p
- Factory colour
Black
Grey
- Width
88 mm
- Height
46 mm
- Depth
183 mm
- Weight
305 g
- Cable design
Round
- Version
Cable
- Display resolution
1920 x 1200 Pixel
- Cable use
C13/C14 appliances
- Material
Plastic
- UKCA
yes
- Manual
yes
- Dimensions (WxDxH)
183 x 88 x 46 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380595 Delock 87664 DVI switch 1920 x 1200 p
Description

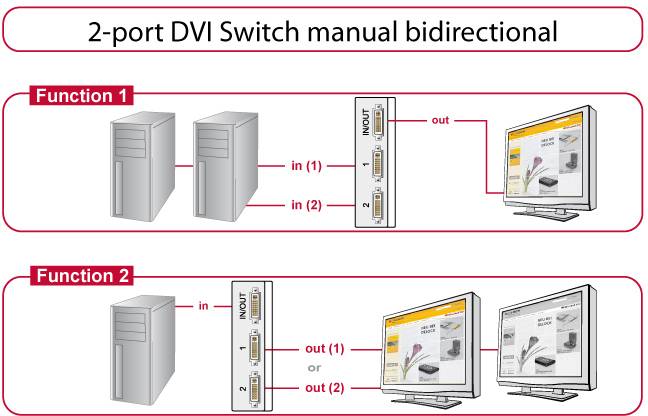

This Delock DVI switch is a manual bi-directional switch for connecting different devices with DVI connection, which offers two different possible applications.
You can connect two computers with DVI connection to a monitor, TV or projector, etc. with DVI input. The device, which should transmit the signal on the screen, can be selected by pressing a button.
You can connect a computer with a DVI connection to two monitors and select on which monitor the signal should be displayed by pressing a button. (It is not possible to output simultaneously to multiple monitors)
This text is machine translated.
You can connect two computers with DVI connection to a monitor, TV or projector, etc. with DVI input. The device, which should transmit the signal on the screen, can be selected by pressing a button.
You can connect a computer with a DVI connection to two monitors and select on which monitor the signal should be displayed by pressing a button. (It is not possible to output simultaneously to multiple monitors)
This text is machine translated.
Features
- Connections:
- Function 1
- 2 x DVI 24+5 socket
- Output 1 x DVI 24+5 socket
- Function 2
- 1 x DVI 24+5 socket
- Output 2 x DVI 24+5 socket
- DVI-D (Single Link), VGA not connected
- 2 mechanical buttons
- Resolution to 1920 x 1200
- (Depending on the system and the connected hardware)
- Plastic housing
- Do not Require external current supply
- Dimensions (LxWxH): Approx. 183 x 88 x 46 mm (without buttons)
- Colour: Grey / black
System requirements
- PC or Notebook with a free DVI port.
DVI connection cable
